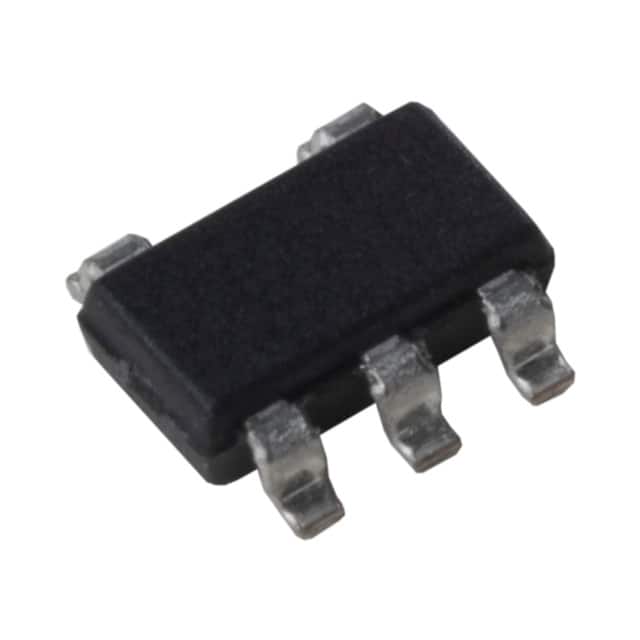

Microchip Technology MIC2090-1YM5-TR
- Part No.:
- MIC2090-1YM5-TR
- Manufacturer:
- Microchip Technology
- Package:
- SC-74A, SOT-753
- Datasheet:
-
MIC2090-1YM5-TR.pdf
- Description:
- IC PWR SWITCH P-CHAN 1:1 SOT23-5
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
MIC2090-1YM5-TR Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Microchip Technology
- Package/Case:
- SC-74A, SOT-753
- Series:
- -
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Switch Type:
- General Purpose
- Number of Outputs:
- 1
- Ratio - Input:Output:
- 1:1
- Output Configuration:
- High Side
- Output Type:
- P-Channel
- Interface:
- On/Off
- Voltage - Load:
- 1.8V ~ 5.5V
- Voltage - Supply (Vcc/Vdd):
- Not Required
- Current - Output (Max):
- 50mA
- Rds On (Typ):
- 700mOhm
- Input Type:
- Non-Inverting
- Features:
- Status Flag
- Fault Protection:
- Auto-Retry Current-Limit Recovery, Short-Circuit
- Operating Temperature:
- -40°C ~ 125°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- SOT-23-5
| Image |  |
 |
| Part Number | MIC2090-1YM5-TR | MIC2090-2YM5-TR |
| Manufacturer | Microchip Technology | Microchip Technology |
| Package/Case | SC-74A, SOT-753 | SC-74A, SOT-753 |
| Series | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active |
| Switch Type | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 |
| Output Configuration | High Side | High Side |
| Output Type | P-Channel | P-Channel |
| Interface | On/Off | On/Off |
| Voltage - Load | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required |
| Current - Output (Max) | 50mA | 50mA |
| Rds On (Typ) | 700mOhm | 700mOhm |
| Input Type | Non-Inverting | Non-Inverting |
| Features | Status Flag | Status Flag |
| Fault Protection | Auto-Retry Current-Limit Recovery, Short-Circuit | Latch-Off Current-Limit Recovery |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Grade | - | - |
| Qualification | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | SOT-23-5 | SOT-23-5 |
