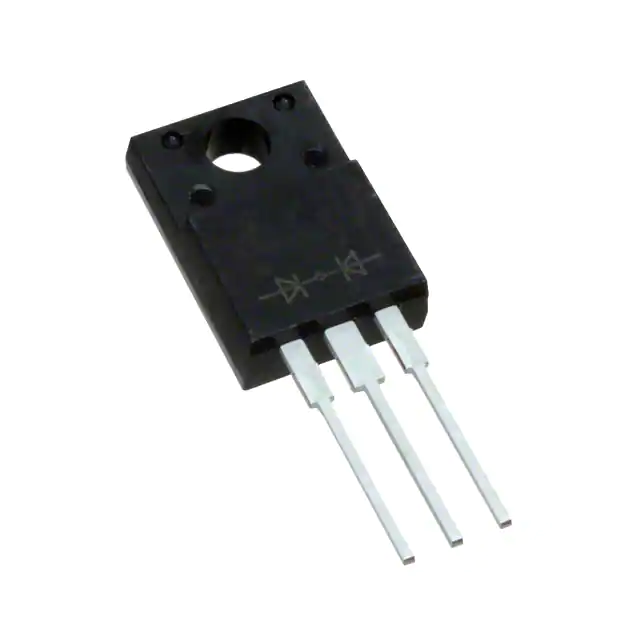

Taiwan Semiconductor Corporation UGF2007G

Product attributes

Attribute value

Manufacturer:

Taiwan Semiconductor Corporation

Series:

-

Package/Case:

TO-220-3 Full Pack, Isolated Tab

Packaging:

Tube

Product Status:

Active

Diode Configuration:

1 Pair Common Cathode

Technology:

Standard

Voltage - DC Reverse (Vr) (Max):

500 V

Current - Average Rectified (Io) (per Diode):

20A (DC)

Voltage - Forward (Vf) (Max) @ If:

1.7 V @ 10 A

Speed:

Fast Recovery =< 500ns, > 200mA (Io)

Reverse Recovery Time (trr):

25 ns

Current - Reverse Leakage @ Vr:

5 µA @ 500 V

Operating Temperature - Junction:

-55°C ~ 150°C

Grade:

-

Qualification:

-

Mounting Type:

Through Hole

Supplier Device Package:

ITO-220AB
