Panasonic Electric Works TXS2SA-3V
- Part No.:
- TXS2SA-3V
- Manufacturer:
- Panasonic Electric Works
- Category:
- Signal Relays, Up to 2 Amps
- Package:
- Description:
- RELAY GENERAL PURPOSE DPDT 1A 3V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
TXS2SA-3V Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Panasonic Electric Works
- Series:
- TX-S
- Packaging:
- Tube
- Product Status:
- Active
- Mounting Type:
- Surface Mount
- Coil Voltage:
- 3VDC
- Contact Form:
- DPDT (2 Form C)
- Contact Rating (Current):
- 1 A
- Switching Voltage:
- 110VDC - Max
- Load - Max Switching:
- 110W
- Coil Current:
- 16.7 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- Gull Wing
- Seal Rating:
- Sealed - Fully
- Coil Insulation:
- -
- Must Operate Voltage:
- 2.4 VDC
- Must Release Voltage:
- 0.3 VDC
- Operate Time:
- 5 ms
- Release Time:
- 5 ms
- Operating Temperature:
- -40°C ~ 70°C
- Contact Material:
- Silver (Ag), Gold (Au)
- Relay Type:
- General Purpose
- Grade:
- -
- Qualification:
- -

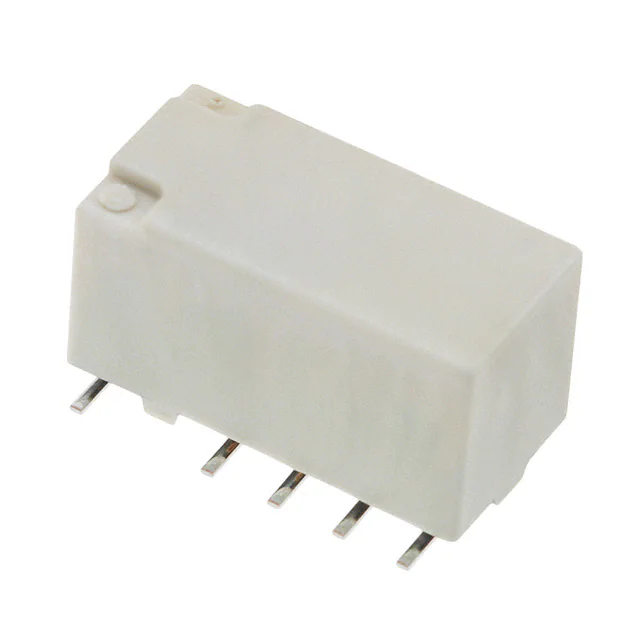

| Image |  |
|
|
 |
|
| Part Number | TXS2SA-12V | TXS2SA-4.5V-Z | TXS2SA-3V | TXS2SA-L2-3V-Z | TXS2SA-L2-4.5V |
| Manufacturer | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works |
| Series | TX-S | TX-S | TX-S | TX-S | TX-S |
| Packaging | Tube | Tape & Reel (TR) | Tube | Tape & Reel (TR) | Tube |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Coil Voltage | 12VDC | 4.5VDC | 3VDC | 3VDC | 4.5VDC |
| Contact Form | DPDT (2 Form C) | DPDT (2 Form C) | DPDT (2 Form C) | DPDT (2 Form C) | DPDT (2 Form C) |
| Contact Rating (Current) | 1 A | 1 A | 1 A | 1 A | 1 A |
| Switching Voltage | 110VDC - Max | 110VDC - Max | 110VDC - Max | 110VDC - Max | 110VDC - Max |
| Load - Max Switching | 110W | 110W | 110W | 110W | 110W |
| Coil Current | 4.2 mA | 11.1 mA | 16.7 mA | 23.3 mA | 15.6 mA |
| Coil Type | Non Latching | Non Latching | Non Latching | Latching, Dual Coil | Latching, Dual Coil |
| Features | - | - | - | - | - |
| Termination Style | Gull Wing | Gull Wing | Gull Wing | Gull Wing | Gull Wing |
| Seal Rating | Sealed - Fully | Sealed - Fully | Sealed - Fully | Sealed - Fully | Sealed - Fully |
| Coil Insulation | - | - | - | - | - |
| Must Operate Voltage | 9.6 VDC | 3.6 VDC | 2.4 VDC | 2.4 VDC | 3.6 VDC |
| Must Release Voltage | 1.2 VDC | 0.45 VDC | 0.3 VDC | - | - |
| Operate Time | 5 ms | 5 ms | 5 ms | 5 ms | 5 ms |
| Release Time | 5 ms | 5 ms | 5 ms | 5 ms | 5 ms |
| Operating Temperature | -40°C ~ 70°C | -40°C ~ 70°C | -40°C ~ 70°C | -40°C ~ 70°C | -40°C ~ 70°C |
| Contact Material | Silver (Ag), Gold (Au) | Silver (Ag), Gold (Au) | Silver (Ag), Gold (Au) | Silver (Ag), Gold (Au) | Silver (Ag), Gold (Au) |
| Relay Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
