Transko Electronics, Inc. TSM75-H00CQ50RT-10.000M
- Part No.:
- TSM75-H00CQ50RT-10.000M
- Manufacturer:
- Transko Electronics, Inc.
- Category:
- Oscillators
- Package:
- 4-SMD, No Lead
- Datasheet:
-
TSM75-H00CQ50RT-10.000M.pdf
- Description:
- 10MHz OSC, 7x5mm, 5V -40/85
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
TSM75-H00CQ50RT-10.000M Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Transko Electronics, Inc.
- Series:
- TSM75
- Package/Case:
- 4-SMD, No Lead
- Packaging:
- Strip
- Product Status:
- Active
- Base Resonator:
- Crystal
- Type:
- XO (Standard)
- Frequency:
- 10 MHz
- Function:
- Enable/Disable
- Output:
- HCMOS
- Voltage - Supply:
- 5V
- Frequency Stability:
- ±100ppm
- Absolute Pull Range (APR):
- -
- Operating Temperature:
- -40°C ~ 85°C
- Spread Spectrum Bandwidth:
- -
- Current - Supply (Max):
- 20mA
- Ratings:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 4-VDFN (3.2x2.5)
- Size / Dimension:
- 0.276" L x 0.197" W (7.00mm x 5.00mm)
- Height - Seated (Max):
- 0.059" (1.50mm)
| Image |  |
|
|
|
|

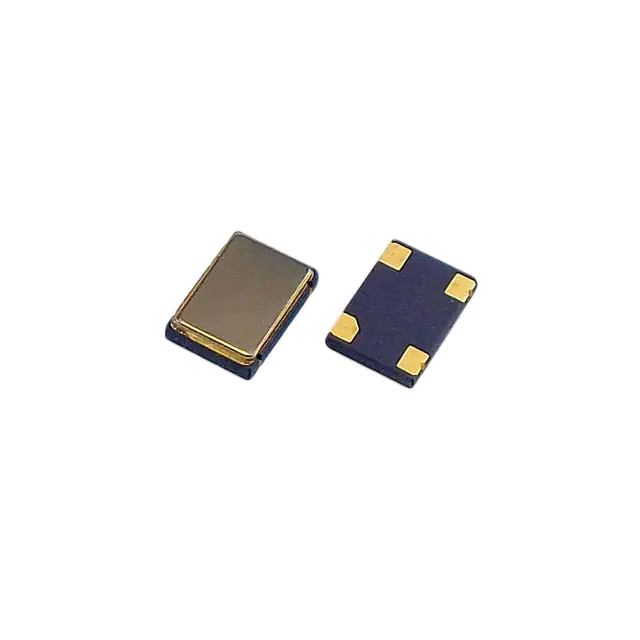

| Part Number | TSM75-H50CQ33RT-110.000M | TSM75-H50CQ33ST-66.000M | TSM75-H50CQ33ST-125.000M-TR | TSM75-H15HM33RT-24.576M-TR | TSM75-H50CQ33ST-100.000M-TR |
| Manufacturer | Transko Electronics, Inc. | Transko Electronics, Inc. | Transko Electronics, Inc. | Transko Electronics, Inc. | Transko Electronics, Inc. |
| Series | TSM75 | TSM75 | TSM75 | TSM75 | TSM75 |
| Package/Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Packaging | Strip | Strip | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Base Resonator | Crystal | Crystal | Crystal | Crystal | Crystal |
| Type | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) |
| Frequency | 110 MHz | 66 MHz | 125 MHz | 24.576 MHz | 100 MHz |
| Function | Enable/Disable | Enable/Disable | Enable/Disable | Enable/Disable | Enable/Disable |
| Output | HCMOS | HCMOS | HCMOS | HCMOS | HCMOS |
| Voltage - Supply | 3.3V | 3.3V | 3.3V | 3.3V | 3.3V |
| Frequency Stability | ±50ppm | ±50ppm | ±50ppm | ±15ppm | ±50ppm |
| Absolute Pull Range (APR) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | 0°C ~ 70°C | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - | - | - | - | - |
| Current - Supply (Max) | 60mA | 30mA | 60mA | 15mA | 60mA |
| Ratings | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) |
