Transko Electronics, Inc. TSM53-H50CQ33ST-6.000M-TR
- Part No.:
- TSM53-H50CQ33ST-6.000M-TR
- Manufacturer:
- Transko Electronics, Inc.
- Category:
- Oscillators
- Package:
- 4-SMD, No Lead
- Datasheet:
-
TSM53-H50CQ33ST-6.000M-TR.pdf
- Description:
- 6.000MHz oscillator, 5x3.2mm cer
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
TSM53-H50CQ33ST-6.000M-TR Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Transko Electronics, Inc.
- Series:
- TSM53
- Package/Case:
- 4-SMD, No Lead
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Base Resonator:
- Crystal
- Type:
- XO (Standard)
- Frequency:
- 6 MHz
- Function:
- Enable/Disable
- Output:
- HCMOS
- Voltage - Supply:
- 3.3V
- Frequency Stability:
- ±50ppm
- Absolute Pull Range (APR):
- -
- Operating Temperature:
- -40°C ~ 85°C
- Spread Spectrum Bandwidth:
- -
- Current - Supply (Max):
- 40mA
- Ratings:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 4-VDFN (3.2x2.5)
- Size / Dimension:
- 0.197" L x 0.126" W (5.00mm x 3.20mm)
- Height - Seated (Max):
- 0.051" (1.30mm)

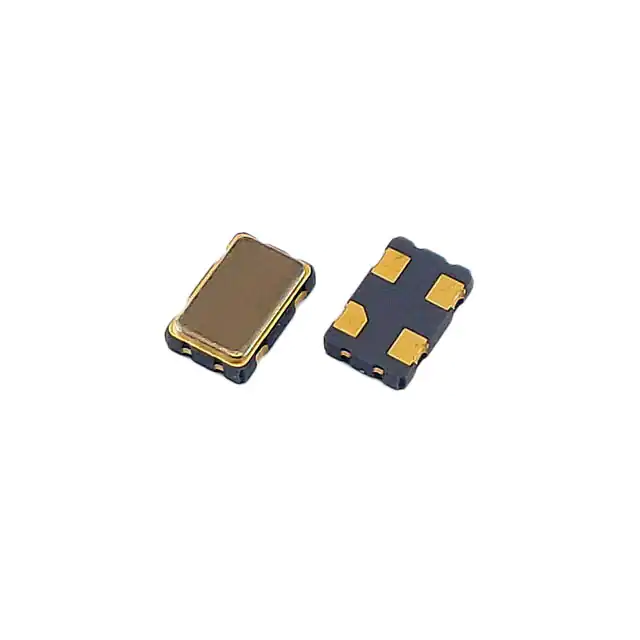

| Image |  |
|
|
|
|
| Part Number | TSM53-H50CQ18ST-24.000M-TR | TSM53-H30HM33ST-20.000M | TSM53-H50HM50RT-10.240M | TSM53-H50CQ30ST-12.800M | TSM53-H50CQ30ST-12.800M-TR |
| Manufacturer | Transko Electronics, Inc. | Transko Electronics, Inc. | Transko Electronics, Inc. | Transko Electronics, Inc. | Transko Electronics, Inc. |
| Series | TSM53 | TSM53 | TSM53 | TSM53 | TSM53 |
| Package/Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Packaging | Tape & Reel (TR) | Strip | Strip | Strip | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Base Resonator | Crystal | Crystal | Crystal | Crystal | Crystal |
| Type | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) |
| Frequency | 24 MHz | 20 MHz | 10.24 MHz | 12.8 MHz | 12.8 MHz |
| Function | Enable/Disable | Enable/Disable | Enable/Disable | Enable/Disable | Enable/Disable |
| Output | HCMOS | HCMOS | HCMOS | HCMOS | HCMOS |
| Voltage - Supply | 1.8V | 3.3V | 5V | 3V | 3V |
| Frequency Stability | ±50ppm | ±30ppm | ±50ppm | ±50ppm | ±50ppm |
| Absolute Pull Range (APR) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | 0°C ~ 70°C | 0°C ~ 70°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - | - | - | - | - |
| Current - Supply (Max) | 25mA | 40mA | 35mA | 40mA | 40mA |
| Ratings | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) | 4-VDFN (3.2x2.5) |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Height - Seated (Max) | 0.051" (1.30mm) | 0.051" (1.30mm) | 0.051" (1.30mm) | 0.051" (1.30mm) | 0.051" (1.30mm) |
