Touchstone Semiconductor TS1103-100DB
- Part No.:
- TS1103-100DB
- Manufacturer:
- Touchstone Semiconductor
- Category:
- Op Amp Evaluation Boards
- Package:
- Datasheet:
-
TS1103-100DB.pdf
- Description:
- BOARD DEMO TS1103-100
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
TS1103-100DB Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Touchstone Semiconductor
- Series:
- -
- Packaging:
- Box
- Product Status:
- Discontinued at Digi-Key
- Channels per IC:
- 1 - Single
- Amplifier Type:
- Current Sense
- Output Type:
- Single-Ended
- Slew Rate:
- -
- -3db Bandwidth:
- 4.5 kHz
- Current - Output / Channel:
- -
- Current - Supply (Main IC):
- 680 nA
- Voltage - Supply, Single/Dual (±):
- 2V ~ 25V
- Utilized IC / Part:
- TS1103-100
- Contents:
- Board(s)
| Image |  |
 |
 |
 |

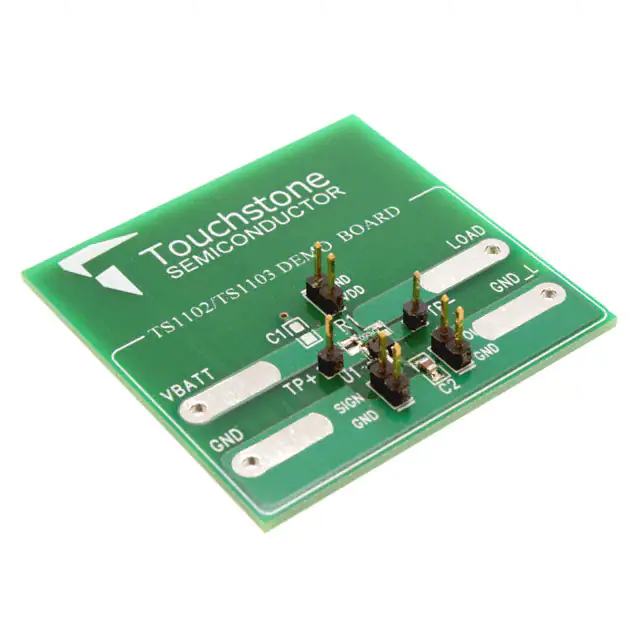

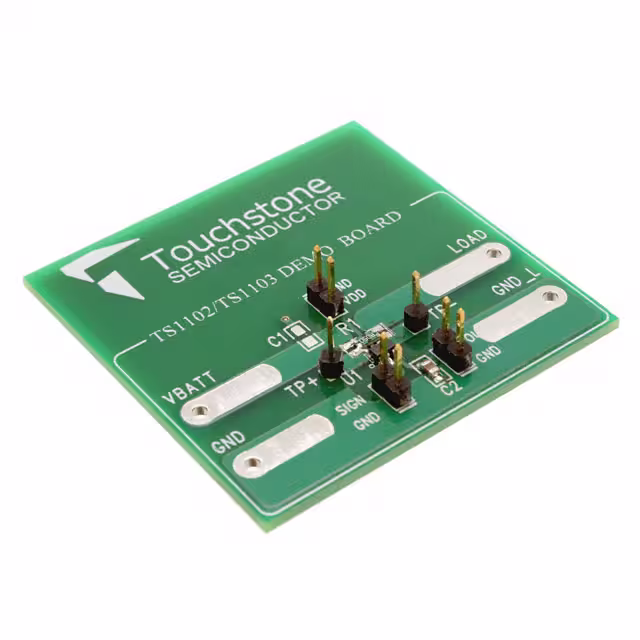

| Part Number | TS1103-50DB | TS1103-100DB | TS1103-25DB | TS1103-200DB |
| Manufacturer | Touchstone Semiconductor | Touchstone Semiconductor | Touchstone Semiconductor | Touchstone Semiconductor |
| Series | - | - | - | - |
| Packaging | Box | Box | Box | Box |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Channels per IC | 1 - Single | 1 - Single | 1 - Single | 1 - Single |
| Amplifier Type | Current Sense | Current Sense | Current Sense | Current Sense |
| Output Type | Single-Ended | Single-Ended | Single-Ended | Single-Ended |
| Slew Rate | - | - | - | - |
| -3db Bandwidth | 6 kHz | 4.5 kHz | 6 kHz | 4.5 kHz |
| Current - Output / Channel | - | - | - | - |
| Current - Supply (Main IC) | 680 nA | 680 nA | 680 nA | 680 nA |
| Voltage - Supply, Single/Dual (±) | 2V ~ 25V | 2V ~ 25V | 2V ~ 25V | 2V ~ 25V |
| Utilized IC / Part | TS1103-50 | TS1103-100 | TS1103-25 | TS1103-200 |
| Contents | Board(s) | Board(s) | Board(s) | Board(s) |
