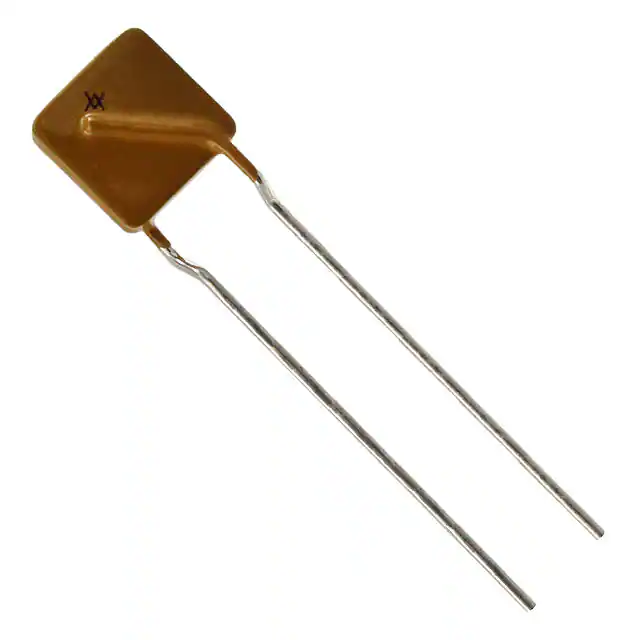

Littelfuse Inc. TRF600-150-RC

Product attributes

Attribute value

Manufacturer:

Littelfuse Inc.

Package/Case:

Radial, Disc

Series:

PolySwitch®, TRF600

Packaging:

Bag

Product Status:

Active

Type:

Polymeric

Voltage - Max:

250V (600V Int)

Current - Hold (Ih) (Max):

150 mA

Current - Trip (It):

300 mA

Current - Max:

40 A

Time to Trip:

3 s

Resistance - Initial (Ri) (Min):

9 Ohms

Resistance - Post Trip (R1) (Max):

22 Ohms

Resistance - 25°C (Typ):

-

Operating Temperature:

-40°C ~ 85°C

Grade:

-

Qualification:

-

Ratings:

-

Mounting Type:

Through Hole

Size / Dimension:

0.354" L x 0.181" W (9.00mm x 4.60mm)

Height - Seated (Max):

0.492" (12.50mm)

Thickness (Max):

-

Lead Spacing:

0.197" (5.00mm)
