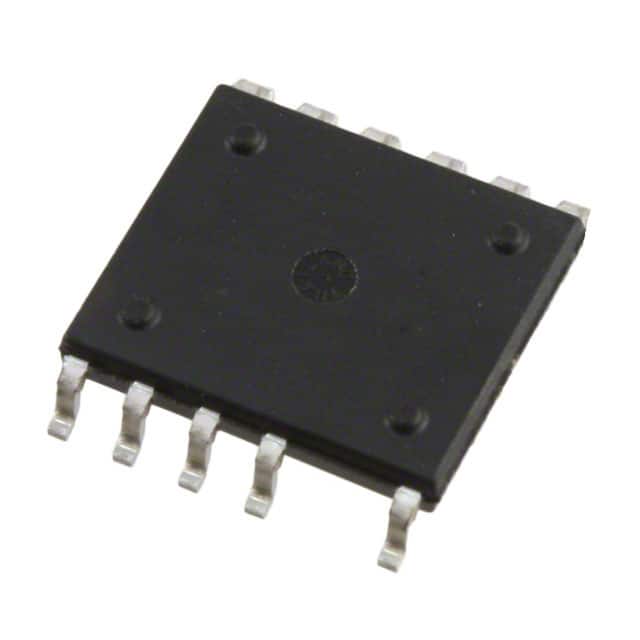

Power Integrations TNY285KG-TL
- Part No.:
- TNY285KG-TL
- Manufacturer:
- Power Integrations
- Category:
- AC DC Converters, Offline Switches
- Package:
- 12-BESOP (0.350", 8.89mm Width), 11 Leads, Exposed Pad
- Datasheet:
-
TNY285KG-TL.pdf
- Description:
- IC OFFLINE SWITCH FLYBACK 12ESOP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
TNY285KG-TL Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Power Integrations
- Series:
- TinySwitch®-4
- Package/Case:
- 12-BESOP (0.350", 8.89mm Width), 11 Leads, Exposed Pad
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Output Isolation:
- Isolated
- Internal Switch(s):
- Yes
- Voltage - Breakdown:
- 725V
- Topology:
- Flyback
- Voltage - Start Up:
- -
- Voltage - Supply (Vcc/Vdd):
- -
- Duty Cycle:
- 67%
- Frequency - Switching:
- 124kHz ~ 140kHz
- Power (Watts):
- 11 W
- Fault Protection:
- Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit
- Control Features:
- EN
- Operating Temperature:
- -40°C ~ 150°C (TJ)
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- 12-ESOP
- Mounting Type:
- Surface Mount
| Image |  |
|
| Part Number | TNY285KG-TL | TNY285KG |
| Manufacturer | Power Integrations | Power Integrations |
| Series | TinySwitch®-4 | TinySwitch®-4 |
| Package/Case | 12-BESOP (0.350", 8.89mm Width), 11 Leads, Exposed Pad | 12-BESOP (0.350", 8.89mm Width), 11 Leads, Exposed Pad |
| Packaging | Tape & Reel (TR) | Tube |
| Product Status | Active | Discontinued at Digi-Key |
| Output Isolation | Isolated | Isolated |
| Internal Switch(s) | Yes | Yes |
| Voltage - Breakdown | 725V | 725V |
| Topology | Flyback | Flyback |
| Voltage - Start Up | - | - |
| Voltage - Supply (Vcc/Vdd) | - | - |
| Duty Cycle | 67% | 67% |
| Frequency - Switching | 124kHz ~ 140kHz | 124kHz ~ 140kHz |
| Power (Watts) | 11 W | 11 W |
| Fault Protection | Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit | Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit |
| Control Features | EN | EN |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Grade | - | - |
| Qualification | - | - |
| Supplier Device Package | 12-ESOP | 12-ESOP |
| Mounting Type | Surface Mount | Surface Mount |
