Toshiba Semiconductor and Storage TLP3545A(TP1,F
- Part No.:
- TLP3545A(TP1,F
- Manufacturer:
- Toshiba Semiconductor and Storage
- Category:
- Solid State Relays (SSR)
- Package:
- 6-SMD (0.300", 7.62mm)
- Description:
- SSR RELAY SPST-NO 4A 0-60V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
TLP3545A(TP1,F Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Toshiba Semiconductor and Storage
- Series:
- TLP3545A
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Mounting Type:
- Surface Mount
- Circuit:
- SPST-NO (1 Form A)
- Output Type:
- AC, DC
- Voltage - Input:
- 1.64VDC
- Voltage - Load:
- 0 V ~ 60 V
- Load Current:
- 4 A
- On-State Resistance (Max):
- 60 mOhms
- Termination Style:
- Gull Wing
- Operating Temperature:
- -40°C ~ 110°C
- Supplier Device Package:
- 6-SMD
- Approval Agency:
- CSA, cUL, UL, VDE
- Grade:
- -
- Qualification:
- -

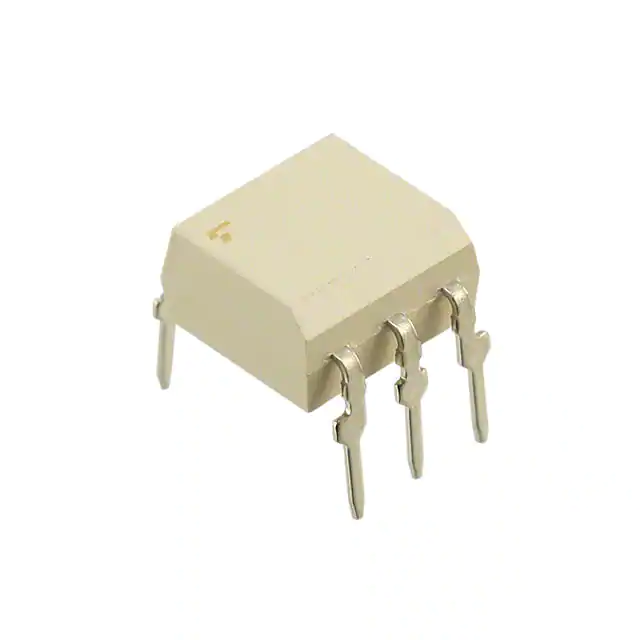

| Image |  |
.JPG) |
 |
| Part Number | TLP3545A(TP1,F | TLP3545A(F | TLP3545A(LF1,F |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| Series | TLP3545A | TLP3545A | TLP3545A |
| Packaging | Tape & Reel (TR) | Tube | Bulk |
| Product Status | Active | Active | Active |
| Mounting Type | Surface Mount | Through Hole | Surface Mount |
| Circuit | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) |
| Output Type | AC, DC | AC, DC | AC, DC |
| Voltage - Input | 1.64VDC | 1.64VDC | 1.64VDC |
| Voltage - Load | 0 V ~ 60 V | 0 V ~ 60 V | 0 V ~ 60 V |
| Load Current | 4 A | 4 A | 4 A |
| On-State Resistance (Max) | 60 mOhms | 60 mOhms | 60 mOhms |
| Termination Style | Gull Wing | PC Pin | SMD (SMT) Tab |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C |
| Supplier Device Package | 6-SMD | 6-DIP | 6-SMD |
| Approval Agency | CSA, cUL, UL, VDE | CSA, cUL, UL, VDE | CSA, cUL, UL, VDE |
| Grade | - | - | - |
| Qualification | - | - | - |
