Toshiba Semiconductor and Storage TLP3412(TP,F
- Part No.:
- TLP3412(TP,F
- Manufacturer:
- Toshiba Semiconductor and Storage
- Category:
- Solid State Relays (SSR)
- Package:
- 4-SMD (0.096", 2.45mm)
- Description:
- SSR RELAY SPST-NO 400MA 0-60V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
TLP3412(TP,F Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Toshiba Semiconductor and Storage
- Series:
- TLP3412
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Mounting Type:
- Surface Mount
- Circuit:
- SPST-NO (1 Form A)
- Output Type:
- AC, DC
- Voltage - Input:
- 1.27VDC
- Voltage - Load:
- 0 V ~ 60 V
- Load Current:
- 400 mA
- On-State Resistance (Max):
- 1.5 Ohms
- Termination Style:
- SMD (SMT) Tab
- Operating Temperature:
- -40°C ~ 110°C
- Supplier Device Package:
- 4-VSON (1.45x2.45)
- Approval Agency:
- -
- Grade:
- -
- Qualification:
- -
| Image |  |
 |
 |
 |
 |

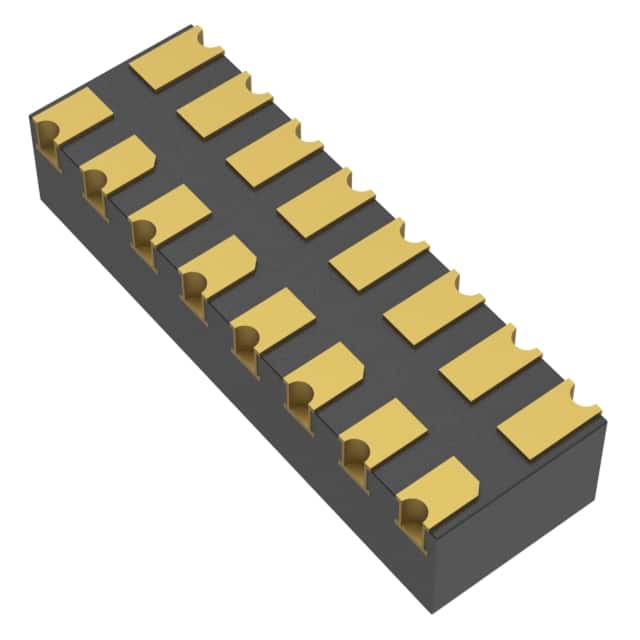

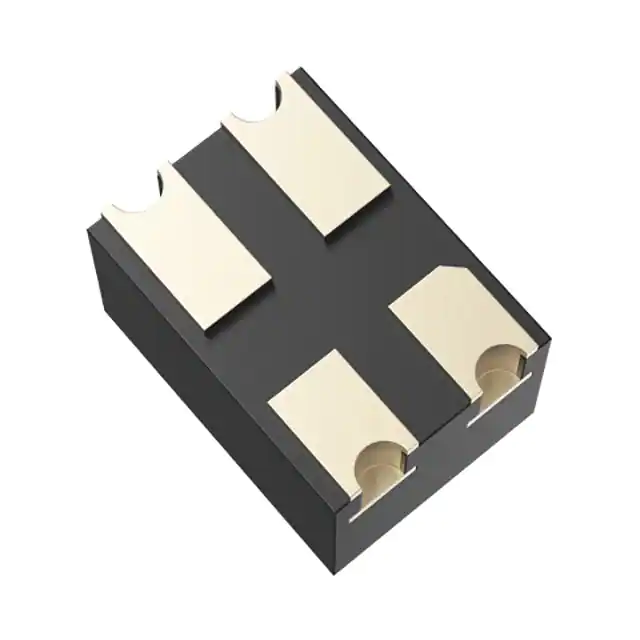

| Part Number | TLP3412(TP,F | TLP3412R(TP,F | TLP3412SRHA(TP,E | TLP3412SRHA4(TPE | TLP3412SRH(TP,E |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| Series | TLP3412 | TLP3412R | TLP3412S | TLP3412S | TLP3412S |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Circuit | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) |
| Output Type | AC, DC | AC, DC | AC, DC | AC, DC | AC, DC |
| Voltage - Input | 1.27VDC | 1.8VDC | 1.5VDC | 1.5VDC | 1.5VDC |
| Voltage - Load | 0 V ~ 60 V | 0 V ~ 60 V | 0 V ~ 60 V | 0 V ~ 60 V | 0 V ~ 60 V |
| Load Current | 400 mA | 400 mA | 400 mA | 250 mA | 400 mA |
| On-State Resistance (Max) | 1.5 Ohms | 1.5 Ohms | 1.5 Ohms | 1.5 Ohms | 1.5 Ohms |
| Termination Style | SMD (SMT) Tab | SMD (SMT) Tab | SMD (SMT) Tab | SMD (SMT) Tab | SMD (SMT) Tab |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C |
| Supplier Device Package | 4-VSON (1.45x2.45) | 4-VSONR (1.45x2.75) | S-VSON4T | S-VSON16T (2x6.25) | S-VSON4T |
| Approval Agency | - | - | - | - | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
