Toshiba Semiconductor and Storage TLP223J(F
- Part No.:
- TLP223J(F
- Manufacturer:
- Toshiba Semiconductor and Storage
- Category:
- Solid State Relays (SSR)
- Package:
- 4-DIP (0.300", 7.62mm)
- Description:
- SSR RELAY SPST-NO 100MA 0-600V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
TLP223J(F Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Toshiba Semiconductor and Storage
- Series:
- TLP223J
- Packaging:
- Tube
- Product Status:
- Active
- Mounting Type:
- Through Hole
- Circuit:
- SPST-NO (1 Form A)
- Output Type:
- AC, DC
- Voltage - Input:
- 1.27VDC
- Voltage - Load:
- 0 V ~ 600 V
- Load Current:
- 90 mA
- On-State Resistance (Max):
- 60 Ohms
- Termination Style:
- PC Pin
- Operating Temperature:
- -40°C ~ 110°C
- Supplier Device Package:
- 4-DIP
- Approval Agency:
- CSA, cUL, UL, VDE
- Grade:
- -
- Qualification:
- -
| Image |  |
 |

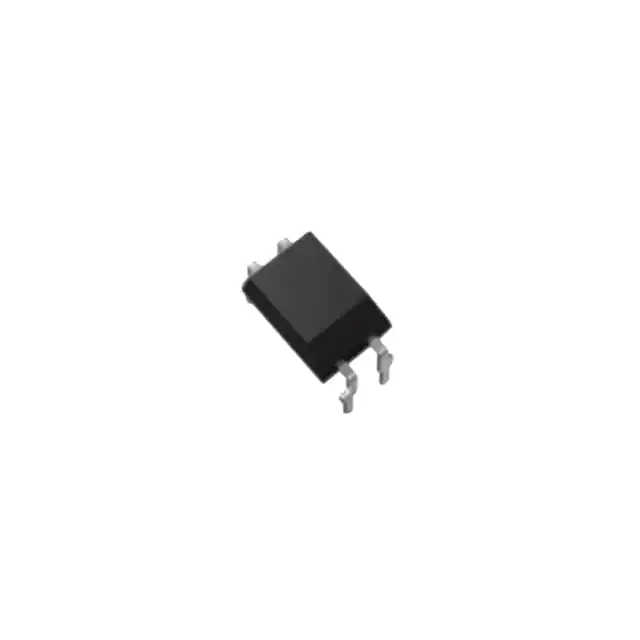

| Part Number | TLP223J(D4TP1,F | TLP223J(F |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| Series | - | TLP223J |
| Packaging | Tape & Reel (TR) | Tube |
| Product Status | Active | Active |
| Mounting Type | Surface Mount | Through Hole |
| Circuit | SPST-NO (1 Form A) | SPST-NO (1 Form A) |
| Output Type | AC, DC | AC, DC |
| Voltage - Input | 1.27VDC | 1.27VDC |
| Voltage - Load | 0 V ~ 600 V | 0 V ~ 600 V |
| Load Current | 90 mA | 90 mA |
| On-State Resistance (Max) | 60 Ohms | 60 Ohms |
| Termination Style | Gull Wing | PC Pin |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C |
| Supplier Device Package | 4-SMD | 4-DIP |
| Approval Agency | cUL, UL, VDE | CSA, cUL, UL, VDE |
| Grade | - | - |
| Qualification | - | - |
- Include Parts
- Popular Search
The following parts include "TLP223J(F" in Silicon Labs TLP223J(F.
- Part Number
- Manufacturer
- Package
- Description
- G3VM-21UR11(TR05) Omron Electronics Inc-EMC Div 4-SMD (0.096", 2.45mm) SSR RELAY SPST-NO 1A 0-20V
- G3VM-61VY3(TR05) Omron Electronics Inc-EMC Div 4-SOP (0.179", 4.55mm) SSR RELAY SPST-NO 700MA 0-60V
- CPC1017NTR Littelfuse Inc. 4-SOP (0.150", 3.81mm) SSR RELAY SPST-NO 100MA 0-60V
- CPC1017N Littelfuse Inc. 4-SOP (0.150", 3.81mm) SSR RELAY SPST-NO 100MA 0-60V
- CPC1006N Littelfuse Inc. 4-SOP (0.150", 3.81mm) SSR RELAY SPST-NO 75MA 0-60V
- VO1400AEFTR Vishay Semiconductor Opto Division 4-SOP (0.173", 4.40mm) SSR RELAY SPST-NO 100MA 0-60V
- CPC1006NTR Littelfuse Inc. 4-SOP (0.150", 3.81mm) SSR RELAY SPST-NO 75MA 0-60V
- TLP175A(TPL,E Toshiba Semiconductor and Storage 6-SOP (0.179", 4.55mm), 4 Leads SSR RELAY SPST-NO 100MA 0-60V
- CPC1002NTR Littelfuse Inc. 4-SOP (0.150", 3.81mm) SSR RELAY SPST-NO 700MA 0-60V
- AQY280S Panasonic Electric Works 4-SOP (0.173", 4.40mm) SSR RELAY SPST-NO 120MA 0-350V
