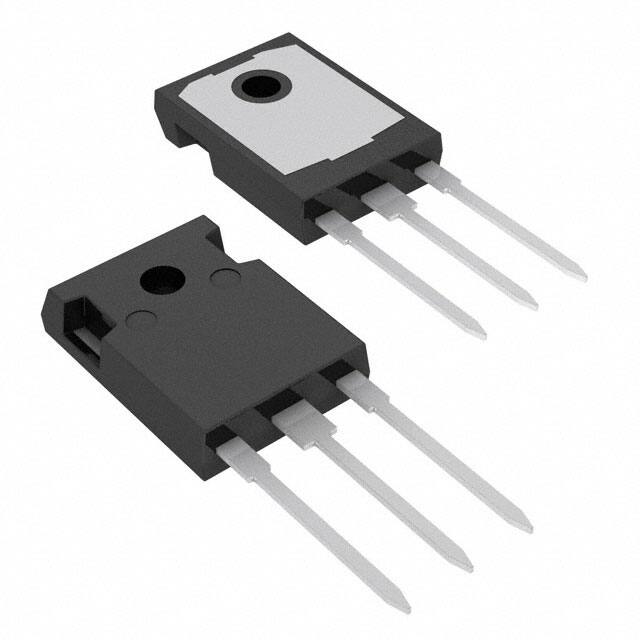

onsemi TIP141

Product attributes

Attribute value

Manufacturer:

onsemi

Series:

-

Package/Case:

TO-218-3

Packaging:

Bulk

Product Status:

Discontinued at Digi-Key

Transistor Type:

NPN - Darlington

Current - Collector (Ic) (Max):

10 A

Voltage - Collector Emitter Breakdown (Max):

80 V

Vce Saturation (Max) @ Ib, Ic:

3V @ 40mA, 10A

Current - Collector Cutoff (Max):

2mA

DC Current Gain (hFE) (Min) @ Ic, Vce:

1000 @ 5A, 4V

Power - Max:

125 W

Frequency - Transition:

4MHz

Operating Temperature:

-65°C ~ 150°C

Grade:

-

Qualification:

-

Mounting Type:

Through Hole

Supplier Device Package:

SOT-93
