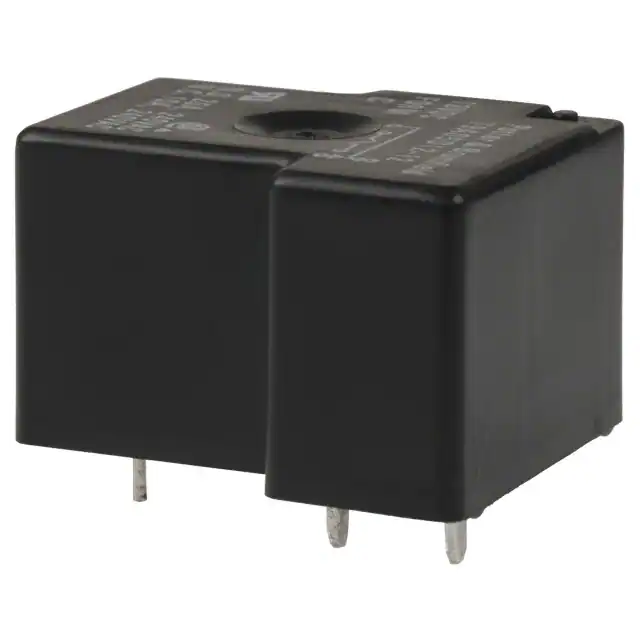

TE Connectivity Potter & Brumfield Relays T9AS5D12-12
- Part No.:
- T9AS5D12-12
- Manufacturer:
- TE Connectivity Potter & Brumfield Relays
- Category:
- Power Relays, Over 2 Amps
- Package:
- Description:
- RELAY GEN PURPOSE SPDT 20A 12V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
T9AS5D12-12 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TE Connectivity Potter & Brumfield Relays
- Series:
- T9A
- Packaging:
- Bulk
- Product Status:
- Active
- Mounting Type:
- Through Hole
- Coil Voltage:
- 12VDC
- Contact Form:
- SPDT (1 Form C)
- Contact Rating (Current):
- 20 A
- Switching Voltage:
- 277VAC - Max
- Load - Max Switching:
- 5540VA
- Coil Current:
- 83 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- PC Pin
- Seal Rating:
- Sealed - Fully
- Coil Insulation:
- Class F
- Must Operate Voltage:
- 9 VDC
- Must Release Voltage:
- 1.2 VDC
- Operate Time:
- 15 ms
- Release Time:
- 15 ms
- Operating Temperature:
- -55°C ~ 85°C
- Contact Material:
- Silver Cadmium Oxide (AgCdO)
- Relay Type:
- General Purpose
- Grade:
- -
- Qualification:
- -
| Image |  |
|
 |
|
|
| Part Number | T9AS5D12-12 | T9AS5D12-5 | T9AS5D12-9 | T9AS5D12-48 | T9AS5D12-22 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Series | T9A | T9A | T9A | T9A | T9A |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Coil Voltage | 12VDC | 5VDC | 9VDC | 48VDC | 22VDC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C) | SPDT (1 Form C) | SPDT (1 Form C) | SPDT (1 Form C) |
| Contact Rating (Current) | 20 A | 20 A | 20 A | 20 A | 20 A |
| Switching Voltage | 277VAC - Max | 277VAC - Max | 277VAC - Max | 277VAC - Max | 277VAC - Max |
| Load - Max Switching | 5540VA | 5540VA | 5540VA | 5540VA | 5540VA |
| Coil Current | 83 mA | 200 mA | 111 mA | 21 mA | 45.5 mA |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching | Non Latching |
| Features | - | - | - | - | - |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Seal Rating | Sealed - Fully | Sealed - Fully | Sealed - Fully | Sealed - Fully | Sealed - Fully |
| Coil Insulation | Class F | Class F | Class F | Class F | Class F |
| Must Operate Voltage | 9 VDC | 3.75 VDC | 6.75 VDC | 36 VDC | 16.5 VDC |
| Must Release Voltage | 1.2 VDC | 0.5 VDC | 0.9 VDC | 4.8 VDC | 2.2 VDC |
| Operate Time | 15 ms | 15 ms | 15 ms | 15 ms | 15 ms |
| Release Time | 15 ms | 15 ms | 15 ms | 15 ms | 15 ms |
| Operating Temperature | -55°C ~ 85°C | -55°C ~ 85°C | -55°C ~ 85°C | -55°C ~ 85°C | -55°C ~ 85°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) | Silver Cadmium Oxide (AgCdO) | Silver Cadmium Oxide (AgCdO) | Silver Cadmium Oxide (AgCdO) | Silver Cadmium Oxide (AgCdO) |
| Relay Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
