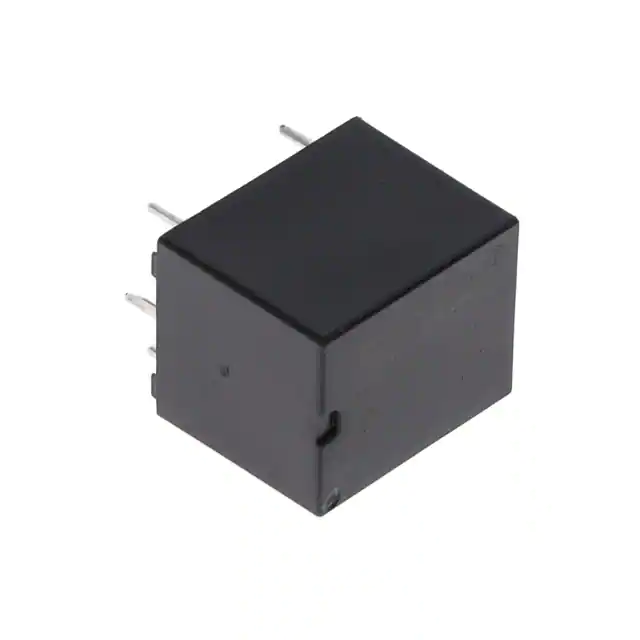

American Zettler AZ943-1CH-5DE
- Part No.:
- AZ943-1CH-5DE
- Manufacturer:
- American Zettler
- Category:
- Power Relays, Over 2 Amps
- Package:
- Datasheet:
-
AZ943-1CH-5DE.pdf
- Description:
- RELAY GEN PURPOSE SPDT 10A 5V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AZ943-1CH-5DE Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- American Zettler
- Series:
- AZ943
- Packaging:
- Tube
- Product Status:
- Active
- Mounting Type:
- Through Hole
- Coil Voltage:
- 5VDC
- Contact Form:
- SPDT (1 Form C)
- Contact Rating (Current):
- 10 A
- Switching Voltage:
- 277VAC, 30VDC - Max
- Load - Max Switching:
- 2770VA, 300W
- Coil Current:
- 71.4 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- PC Pin
- Seal Rating:
- Sealed - Fully
- Coil Insulation:
- Class B
- Must Operate Voltage:
- 3.8 VDC
- Must Release Voltage:
- 0.5 VDC
- Operate Time:
- 10 ms
- Release Time:
- 5 ms
- Operating Temperature:
- -40°C ~ 90°C
- Contact Material:
- Silver Tin Oxide (AgSnO)
- Relay Type:
- General Purpose
- Grade:
- -
- Qualification:
- -
| Image |  |
 |
 |
|
|
| Part Number | AZ943-1AH-12DEF | AZ943-1CH-12DE | AZ943-1CH-5DE | AZ943-1CH-24DE | AZ943-1CH-24DEF |
| Manufacturer | American Zettler | American Zettler | American Zettler | American Zettler | American Zettler |
| Series | AZ943 | AZ943 | AZ943 | AZ943 | AZ943 |
| Packaging | Tray | Tube | Tube | Tube | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Coil Voltage | 12VDC | 12VDC | 5VDC | 24VDC | 24VDC |
| Contact Form | SPST-NO (1 Form A) | SPDT (1 Form C) | SPDT (1 Form C) | SPDT (1 Form C) | SPDT (1 Form C) |
| Contact Rating (Current) | 15 A | 10 A | 10 A | 10 A | 10 A |
| Switching Voltage | 277VAC, 30VDC - Max | 277VAC, 30VDC - Max | 277VAC, 30VDC - Max | 277VAC, 30VDC - Max | 277VAC, 30VDC - Max |
| Load - Max Switching | 2770VA, 300W | 2770VA, 300W | 2770VA, 300W | 2770VA, 300W | 2770VA, 300W |
| Coil Current | 30 mA | 30 mA | 71.4 mA | 15 mA | 15 mA |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching | Non Latching |
| Features | - | - | - | - | - |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Seal Rating | Sealed - Fully | Sealed - Fully | Sealed - Fully | Sealed - Fully | Sealed - Fully |
| Coil Insulation | Class F | Class B | Class B | Class B | Class F |
| Must Operate Voltage | 9 VDC | 9 VDC | 3.8 VDC | 18 VDC | 18 VDC |
| Must Release Voltage | 1.2 VDC | 1.2 VDC | 0.5 VDC | 2.4 VDC | 2.4 VDC |
| Operate Time | 10 ms | 10 ms | 10 ms | 10 ms | 10 ms |
| Release Time | 5 ms | 5 ms | 5 ms | 5 ms | 5 ms |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 90°C | -40°C ~ 90°C | -40°C ~ 90°C | -40°C ~ 110°C |
| Contact Material | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) |
| Relay Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
- Include Parts
- Popular Search
The following parts include "AZ943-1CH-5DE" in Silicon Labs AZ943-1CH-5DE.
- Part Number
- Manufacturer
- Package
- Description
- AZ943-1AH-12DEF American Zettler RELAY GEN PURPOSE SPST 15A 12V
- J1021CS312VDC.20 CIT Relay and Switch RELAY GEN PURPOSE SPDT 3A 12V
- J107F1CS1212VDC.36 CIT Relay and Switch RELAY GEN PURPOSE SPDT 12A 12V
- AZ943-1CH-12DE American Zettler RELAY GEN PURPOSE SPDT 10A 12V
- AZ943-1CH-5DE American Zettler RELAY GEN PURPOSE SPDT 10A 5V
- AZ943-1CH-24DE American Zettler RELAY GEN PURPOSE SPDT 10A 24V
- J107F1CS1224VDC.36 CIT Relay and Switch RELAY GEN PURPOSE SPDT 12A 24V
- J107F1CS1224VDC.45 CIT Relay and Switch RELAY GEN PURPOSE SPDT 12A 24V
- ALQ3F12 Panasonic Electric Works RELAY GEN PURPOSE SPST 10A 12V
- J107F1CS125VDC.36 CIT Relay and Switch RELAY GEN PURPOSE SPDT 12A 5V
