Synzen SZC-N-0G06
- Part No.:
- SZC-N-0G06
- Manufacturer:
- Synzen
- Category:
- RF Antennas
- Package:
- Description:
- RF ANT 1.575/1.602GHZ CER PATCH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
SZC-N-0G06 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Synzen
- Series:
- ARIETISa
- Packaging:
- Bag
- Product Status:
- Active
- RF Family/Standard:
- Navigation
- Frequency Group:
- UHF (1GHz ~ 2GHz)
- Frequency (Center/Band):
- 1.575GHz, 1.602GHz
- Frequency Range:
- 1.572GHz ~ 1.578GHz, 1.597GHz ~ 1.607GHz
- Antenna Type:
- Ceramic Patch
- Number of Bands:
- 1
- VSWR:
- 2.1, 2
- Return Loss:
- -8dB
- Gain:
- 1.8dBi, 2dBi
- Power - Max:
- -
- Features:
- -
- Termination:
- Solder
- Ingress Protection:
- -
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Height (Max):
- 0.157" (4.00mm)
- Applications:
- Galileo, GLONASS, GNSS, GPS
| Image |  |
 |
|
 |
 |

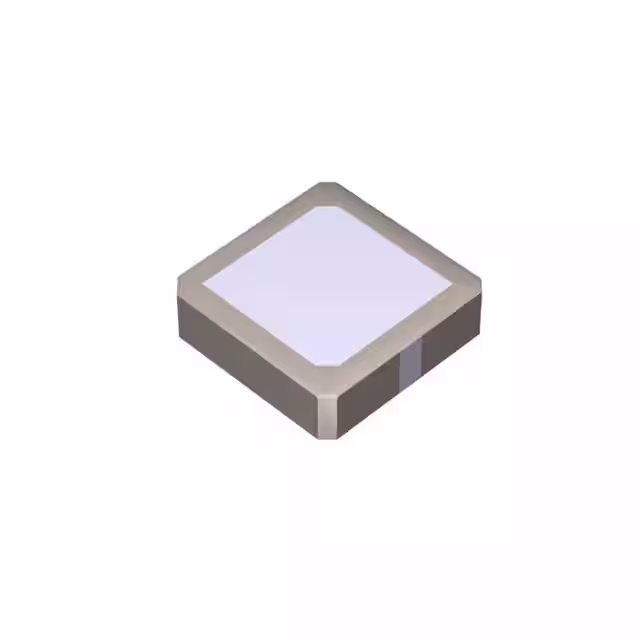

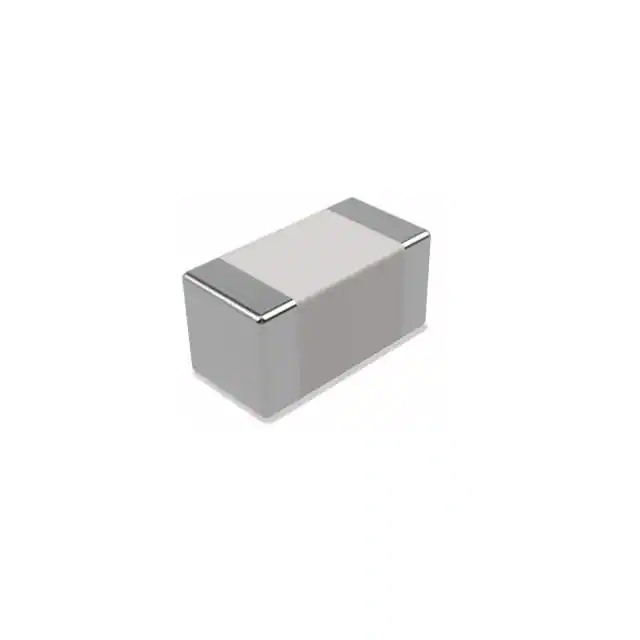

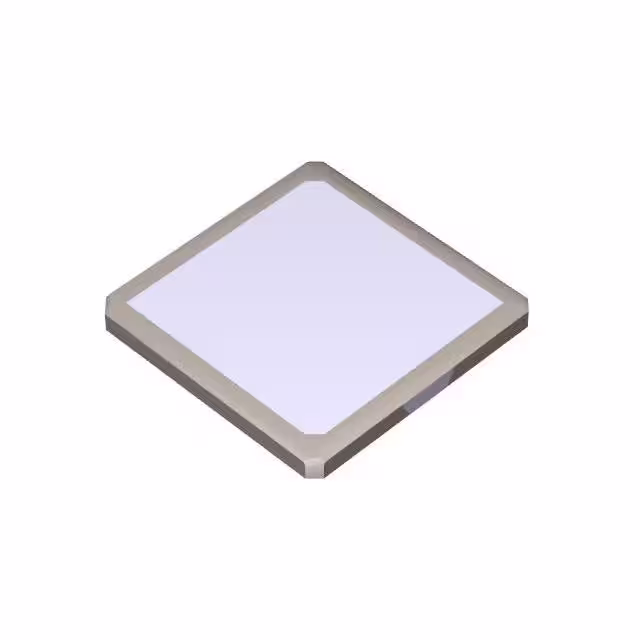

| Part Number | SZC-C-0W02 | SZC-C-0M01 | SZC-C-1G18 | SZC-N-0G07 | SZC-N-0G13 |
| Manufacturer | Synzen | Synzen | Synzen | Synzen | Synzen |
| Series | SIRIUSa | VEGA | - | ARIETISb | POLARIS |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Bag | Bag |
| Product Status | Active | Active | Active | Active | Active |
| RF Family/Standard | Bluetooth, General ISM, WiFi | General ISM | Navigation | Navigation | Navigation |
| Frequency Group | UHF (2GHz ~ 3GHz) | UHF (300MHz ~ 1GHz) | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 2.45GHz | 889MHz | 1.584GHz | 1.575GHz, 1.602GHz | 1.575GHz, 1.602GHz |
| Frequency Range | 2.4GHz ~ 2.5GHz | 863MHz ~ 915MHz | 1.559GHz ~ 1.609GHz | 1.572GHz ~ 1.578GHz, 1.597GHz ~ 1.607GHz | 1.572GHz ~ 1.578GHz, 1.597GHz ~ 1.607GHz |
| Antenna Type | Chip | Chip | Chip | Ceramic Patch | Ceramic Patch |
| Number of Bands | 1 | 1 | 1 | 1 | 1 |
| VSWR | 1.75 | 2.1 | 1.7 | 2.35, 2.9 | 1.3, 4.5 |
| Return Loss | -11dB | -8.5dB | -12.5dB | -10dB | -15dB |
| Gain | 3dBi | 1.2dBi | 3.1dBi | 2.5dBi, 2dBi | 4dBi, 2.2dBi |
| Power - Max | - | - | - | - | - |
| Features | - | - | - | - | - |
| Termination | Solder | Solder | Solder | Solder | Solder |
| Ingress Protection | - | - | - | - | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Height (Max) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.157" (4.00mm) | 0.079" (2.00mm) |
| Applications | Bluetooth, WLAN, ISM | LoRa, ISM | GNSS | Galileo, GLONASS, GNSS, GPS | Galileo, GLONASS, GNSS, GPS |
