Sanken Electric USA Inc. STR-Y6456
- Part No.:
- STR-Y6456
- Manufacturer:
- Sanken Electric USA Inc.
- Category:
- AC DC Converters, Offline Switches
- Package:
- TO-220-7 Formed Leads
- Description:
- AC/DC CONVERTER IC (INTEGRATED M
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
STR-Y6456 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Sanken Electric USA Inc.
- Series:
- -
- Package/Case:
- TO-220-7 Formed Leads
- Packaging:
- Tube
- Product Status:
- Obsolete
- Output Isolation:
- -
- Internal Switch(s):
- Yes
- Voltage - Breakdown:
- 650V
- Topology:
- -
- Voltage - Start Up:
- 16.2 V
- Voltage - Supply (Vcc/Vdd):
- 10V ~ 32V
- Duty Cycle:
- -
- Frequency - Switching:
- 21kHz
- Power (Watts):
- 29 W
- Fault Protection:
- Current Limiting, Over Load, Over Voltage
- Control Features:
- EN, Soft Start
- Operating Temperature:
- -20°C ~ 115°C (TA)
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- TO-220F-7
- Mounting Type:
- Through Hole
| Image |  |
|
|
|
|

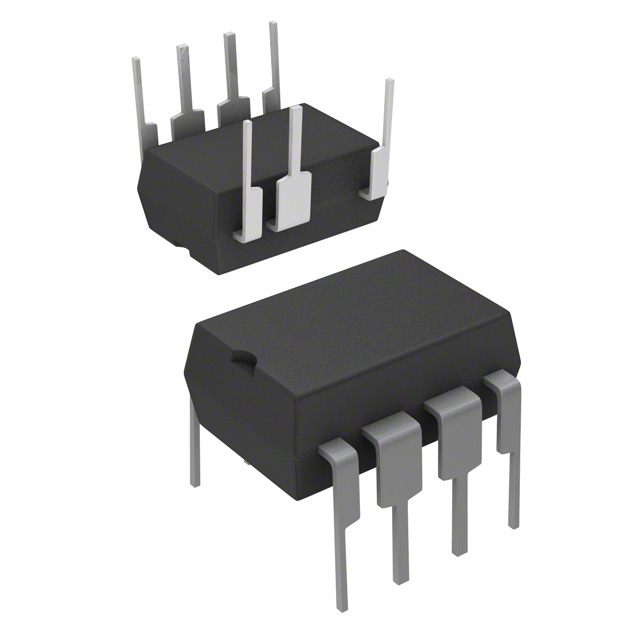

| Part Number | STR-A6069H | STR-A6059H | STR-A6159M | STR-A6169 | STR-A6159 |
| Manufacturer | Sanken Electric USA Inc. | Sanken Electric USA Inc. | Sanken Electric USA Inc. | Sanken Electric USA Inc. | Sanken Electric USA Inc. |
| Series | STR-A6000 | STR-A6000 | STR-A6100 | STR-A6100 | STR-A6100 |
| Package/Case | 8-DIP (0.300", 7.62mm), 7 Leads | 8-DIP (0.300", 7.62mm), 7 Leads | 8-DIP (0.300", 7.62mm), 7 Leads | 8-DIP (0.300", 7.62mm), 7 Leads | 8-DIP (0.300", 7.62mm), 7 Leads |
| Packaging | Tube | Tube | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Output Isolation | Isolated | Isolated | Isolated | Isolated | Isolated |
| Internal Switch(s) | Yes | Yes | Yes | Yes | Yes |
| Voltage - Breakdown | 700V | 650V | 650V | 800V | 650V |
| Topology | Flyback | Flyback | Flyback | Flyback | Flyback |
| Voltage - Start Up | 15.3 V | 15.3 V | 17.5 V | 17.5 V | 17.5 V |
| Voltage - Supply (Vcc/Vdd) | 8.1V ~ 32V | 8.1V ~ 32V | 10V ~ 35V | 10V ~ 35V | 10V ~ 35V |
| Duty Cycle | 83% | 83% | - | - | - |
| Frequency - Switching | 100kHz | 100kHz | - | - | - |
| Power (Watts) | 30 W | 30 W | 13 W | 8 W | 13 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage | Current Limiting, Over Load, Over Temperature, Over Voltage | Current Limiting, Over Load, Over Temperature, Over Voltage | Current Limiting, Over Load, Over Temperature, Over Voltage | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Control Features | - | - | - | - | - |
| Operating Temperature | -20°C ~ 125°C (TA) | -20°C ~ 125°C (TA) | -20°C ~ 125°C (TA) | -20°C ~ 125°C (TA) | -20°C ~ 125°C (TA) |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Supplier Device Package | 8-DIP | 8-DIP | 8-DIP | 8-DIP | 8-DIP |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
