STMicroelectronics STEVAL-AETKT1V2
- Part No.:
- STEVAL-AETKT1V2
- Manufacturer:
- STMicroelectronics
- Category:
- Op Amp Evaluation Boards
- Package:
- Datasheet:
-
STEVAL-AETKT1V2.pdf
- Description:
- EVAL BRD TSC2010 TSC2011 TSC2012
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
STEVAL-AETKT1V2 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- STMicroelectronics
- Series:
- -
- Packaging:
- Bulk
- Product Status:
- Active
- Channels per IC:
- 1 - Single
- Amplifier Type:
- Current Sense
- Output Type:
- Single-Ended
- Slew Rate:
- 7V/µs
- -3db Bandwidth:
- 750 kHz
- Current - Output / Channel:
- 36 mA
- Current - Supply (Main IC):
- 1.6 mA
- Voltage - Supply, Single/Dual (±):
- 2.7V ~ 5.5V
- Utilized IC / Part:
- TSC2010, TSC2011, TSC2012
- Contents:
- Board(s)
| Image |  |
 |
|
 |
 |

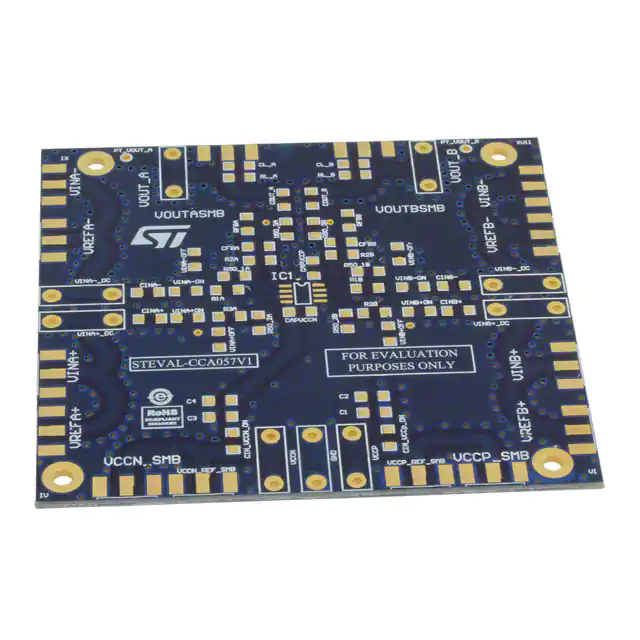

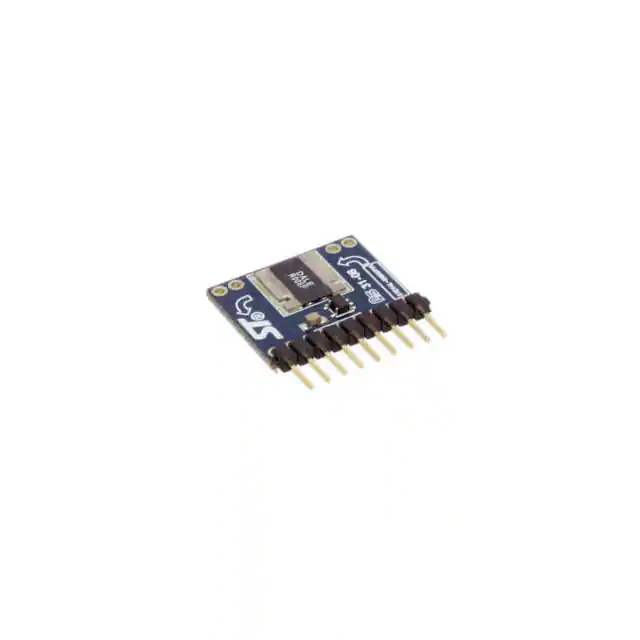

| Part Number | STEVAL-AETKT1V2 | STEVAL-AETKT4V1 | STEVAL-AETKT3V1 | STEVAL-CCA057V1 | STEVAL-ISQ007V1 |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Series | - | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk | Box |
| Product Status | Active | Active | Active | Active | Active |
| Channels per IC | 1 - Single | 1 - Single | 1 - Single | 2 - Dual | 1 - Single |
| Amplifier Type | Current Sense | Current Sense | Current Sense | General Purpose | Current Sense |
| Output Type | Single-Ended | Single-Ended, Rail-to-Rail | Single-Ended, Rail-to-Rail | - | Single-Ended |
| Slew Rate | 7V/µs | - | 7V/µs | - | 0.9V/µs |
| -3db Bandwidth | 750 kHz | 700 kHz | - | - | - |
| Current - Output / Channel | 36 mA | 14.5 mA | - | - | 60 mA |
| Current - Supply (Main IC) | 1.6 mA | 1.8 mA | 840 µA | - | 165 µA |
| Voltage - Supply, Single/Dual (±) | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 18V | - | 4V ~ 24V |
| Utilized IC / Part | TSC2010, TSC2011, TSC2012 | TSC2020, TSC2021, TSC2022 | TSC200, TSC201, TSC202 | 8-SOIC Package | TSC101 |
| Contents | Board(s) | Board(s) | Board(s) | Unpopulated (Bare) Board(s) | Board(s) |
