STMicroelectronics STEC01PUR
- Part No.:
- STEC01PUR
- Manufacturer:
- STMicroelectronics
- Category:
- Specialized ICs
- Package:
- 16-VFQFN Exposed Pad
- Description:
- IC POWER SWITCH 16VFQFPN
- Quantity:
Unit Price:$0.70
Ext Price:$350.00
- Payment:
- Shipping:
Product Details
STEC01PUR - Programmable Ground-Path Safety Switch
STEC01PUR from STMicroelectronics is a programmable low-resistance ground-path safety switch for power tools and battery systems in a 3 mm x 3 mm VFQFPN-16 package.
Specifications were checked against the manufacturer data sheet and current distributor listing.
Overview
STEC01 integrates a low-resistance N-channel MOSFET, control logic and programmable timers to disconnect the load ground path after abnormal or excessive activation time.
Key Advantages
A 12 milliohm typical integrated power switch supports continuous currents up to 7 A with low conduction loss.
Programmable on-time and cooling-window supervision adds an independent safety layer for trigger-driven loads.
Available in an established surface-mount or through-hole ordering format.
Electrical and environmental limits are defined by the official data sheet.
Feature Summary
Programmable power-ground safety switch with timing protection
Trigger and PWM-compatible control inputs with timer-programming components and diagnostic state
2.2 V to 5 V supply; up to 7 A continuous; 4 Hz to 5 kHz PWM; VFQFPN-16 3 mm x 3 mm

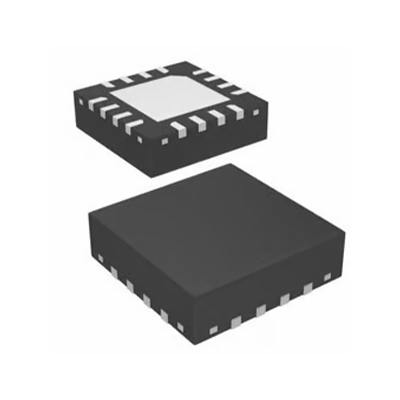

16-VFQFN Exposed Pad
Package & Footprint
This ordering code uses the 16-VFQFN Exposed Pad package.
Pin Functions
Confirm exact numbering and the latest land pattern before PCB release.
Key Specifications
| Supply voltage | 2.2 V to 5 V |
|---|---|
| Power MOSFET resistance | 12 milliohm typical |
| Continuous current | Up to 7 A |
| PWM frequency | 4 Hz to 5 kHz |
| PWM duty cycle | 30% to 100% |
| Battery supply current | 30 uA typical |
| Timers | Two programmable timers plus one fixed timer |
| Protection | Undervoltage lockout |
| Package | VFQFPN-16, 3 mm x 3 mm x 0.9 mm |
Replacement Considerations
Timer behavior, ground-path topology, current rating and package are safety-critical; validate any substitute at system level.
Manufacturer Information
Manufacturer documentation and lifecycle information were checked for the exact order code.
Applications
Disconnects the ground path when a trigger remains active beyond a configured safe interval.
Adds low-loss timed safety isolation in high-current portable equipment.
Quality & Authenticity
Match the complete ordering code, package marking and reel or lot label to authorized-channel records. Inspect moisture handling and solderability requirements before assembly.
FAQ
What is the main function?
Programmable power-ground safety switch with timing protection
What package is used?
16-VFQFN Exposed Pad
Is a verified internal replacement available?
No exact internal replacement was verified. Review any candidate against the manufacturer documentation.
Is the package image ready?
No. The registered package JPG is currently missing.
Engineering Notice
Use the latest manufacturer documentation for schematic, PCB, thermal and production approval. Distributor attributes are useful for sourcing but do not replace the official data sheet.
STEC01PUR Information
- Specifications
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- STMicroelectronics
- Series:
- -
- Package/Case:
- 16-VFQFN Exposed Pad
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Programmable:
- Not Verified
- Type:
- Power Switch
- Applications:
- Protection Circuitry
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 16-VFQFPN (3x3)
- Grade:
- -
- Qualification:
- -
