Panasonic Electric Works ST2-DC5V-F
- Part No.:
- ST2-DC5V-F
- Manufacturer:
- Panasonic Electric Works
- Category:
- Power Relays, Over 2 Amps
- Package:
- Datasheet:
-
ST2-DC5V-F.pdf
- Description:
- RELAY GEN PURPOSE DPST 8A 5V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ST2-DC5V-F Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Panasonic Electric Works
- Series:
- ST
- Packaging:
- Tube
- Product Status:
- Active
- Mounting Type:
- Through Hole
- Coil Voltage:
- 5VDC
- Contact Form:
- DPST-NO (2 Form A)
- Contact Rating (Current):
- 8 A
- Switching Voltage:
- 380VAC, 250VDC - Max
- Load - Max Switching:
- 3040VA, 2000W
- Coil Current:
- 47.6 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- PC Pin
- Seal Rating:
- Sealed - Fully
- Coil Insulation:
- -
- Must Operate Voltage:
- 4 VDC
- Must Release Voltage:
- 0.5 VDC
- Operate Time:
- 15 ms
- Release Time:
- 10 ms
- Operating Temperature:
- -40°C ~ 60°C
- Contact Material:
- Silver Tin Oxide (AgSnO)
- Relay Type:
- General Purpose
- Grade:
- -
- Qualification:
- -
| Image |  |
 |
 |
 |
 |

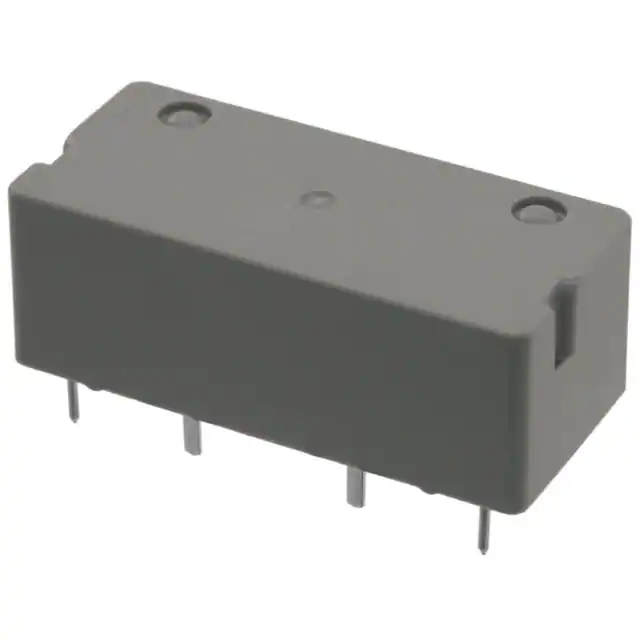

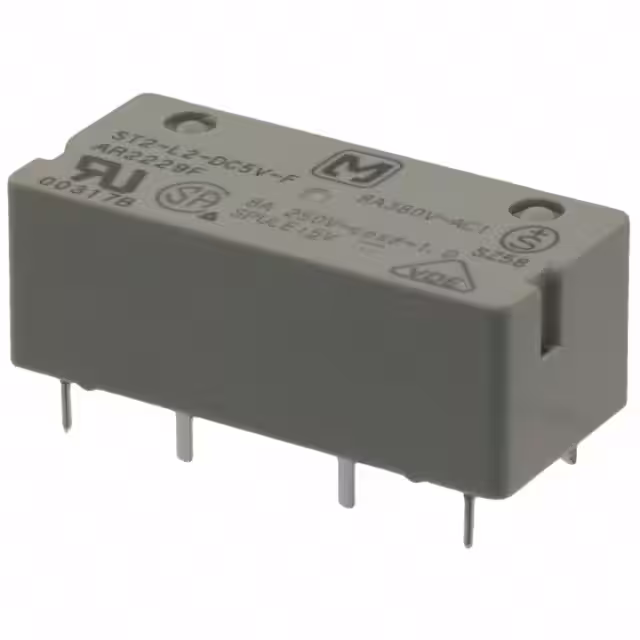

| Part Number | ST2-DC24V-F | ST2-DC5V-F | ST2-DC12V-F | ST2-L2-DC5V-F | ST2-L2-DC48V-F |
| Manufacturer | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works |
| Series | ST | ST | ST | ST | ST |
| Packaging | Tube | Tube | Tray | Tube | Tube |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Coil Voltage | 24VDC | 5VDC | 12VDC | 5VDC | 48VDC |
| Contact Form | DPST-NO (2 Form A) | DPST-NO (2 Form A) | DPST-NO (2 Form A) | DPST-NO (2 Form A) | DPST-NO (2 Form A) |
| Contact Rating (Current) | 8 A | 8 A | 8 A | 8 A | 8 A |
| Switching Voltage | 380VAC, 250VDC - Max | 380VAC, 250VDC - Max | 380VAC, 250VDC - Max | 380VAC, 250VDC - Max | 380VAC, 250VDC - Max |
| Load - Max Switching | 3040VA, 2000W | 3040VA, 2000W | 3040VA, 2000W | 3040VA, 2000W | 3040VA, 2000W |
| Coil Current | 10 mA | 47.6 mA | 20 mA | 45 mA | 4.7 mA |
| Coil Type | Non Latching | Non Latching | Non Latching | Latching, Dual Coil | Latching, Dual Coil |
| Features | - | - | - | - | - |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Seal Rating | Sealed - Fully | Sealed - Fully | Sealed - Fully | Sealed - Fully | Sealed - Fully |
| Coil Insulation | - | - | - | - | - |
| Must Operate Voltage | 19.2 VDC | 4 VDC | 9.6 VDC | 4 VDC | 38.4 VDC |
| Must Release Voltage | 2.4 VDC | 0.5 VDC | 1.2 VDC | - | - |
| Operate Time | 15 ms | 15 ms | 15 ms | 15 ms | 10 ms |
| Release Time | 10 ms | 10 ms | 10 ms | 15 ms | 10 ms |
| Operating Temperature | -40°C ~ 60°C | -40°C ~ 60°C | -40°C ~ 60°C | -40°C ~ 60°C | -40°C ~ 60°C |
| Contact Material | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) |
| Relay Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
