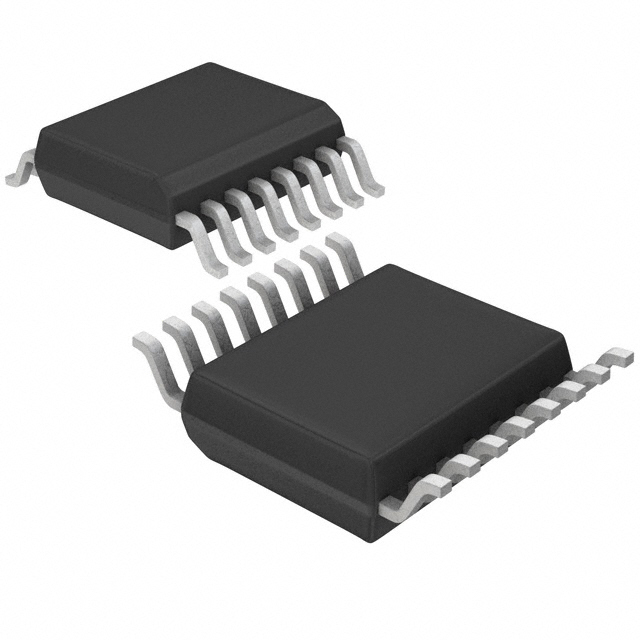

Texas Instruments SN74LV4052APWR

Product attributes

Attribute value

Manufacturer:

Texas Instruments

Series:

-

Packaging:

Tape & Reel (TR)

Product Status:

Active

Switch Circuit:

SP4T

Multiplexer/Demultiplexer Circuit:

4:1

Number of Circuits:

2

On-State Resistance (Max):

75Ohm

Channel-to-Channel Matching (ΔRon):

700mOhm

Voltage - Supply, Single (V+):

2V ~ 5.5V

Voltage - Supply, Dual (V±):

-

Switch Time (Ton, Toff) (Max):

14ns, 14ns

-3db Bandwidth:

50MHz

Charge Injection:

-

Channel Capacitance (CS(off), CD(off)):

0.5pF, 13.1pF

Current - Leakage (IS(off)) (Max):

100nA

Crosstalk:

-45dB @ 1MHz

Operating Temperature:

-40°C ~ 85°C (TA)

Grade:

-

Qualification:

-

Mounting Type:

Surface Mount

Supplier Device Package:

16-TSSOP
