Skyworks Solutions Inc. SI5332H-D-GM1
- Part No.:
- SI5332H-D-GM1
- Manufacturer:
- Skyworks Solutions Inc.
- Package:
- 32-TFQFN Exposed Pad
- Datasheet:
-
SI5332H-D-GM1.pdf
- Description:
- IC CLOCK GENERATOR 32QFN
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
SI5332H-D-GM1 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Skyworks Solutions Inc.
- Series:
- MultiSynth™
- Package/Case:
- 32-TFQFN Exposed Pad
- Packaging:
- Tray
- Product Status:
- Active
- Programmable:
- Not Verified
- Type:
- Clock Generator
- PLL:
- Yes
- Input:
- LVCMOS, Crystal
- Output:
- HCSL, LVCMOS, LVDS, LVPECL
- Number of Circuits:
- 1
- Ratio - Input:Output:
- 2:6
- Differential - Input:Output:
- Yes/Yes
- Frequency - Max:
- 200MHz
- Divider/Multiplier:
- Yes/No
- Voltage - Supply:
- 1.71V ~ 3.63V
- Operating Temperature:
- -40°C ~ 85°C
- Mounting Type:
- Surface Mount
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- 32-QFN (5x5)
| Image |  |
 |
 |
|
|

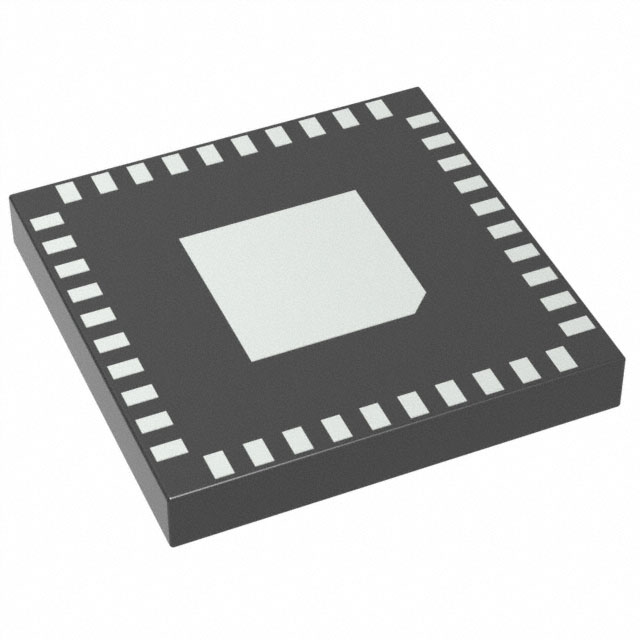

| Part Number | SI5332H-D-GM1 | SI5332H-D-GM3 | SI5332H-D-GM2 | SI5332HD12743-GM1 | SI5332H-D-GM1R |
| Manufacturer | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| Series | MultiSynth™ | MultiSynth™ | MultiSynth™ | MultiSynth™ | MultiSynth™ |
| Package/Case | 32-TFQFN Exposed Pad | 48-TFLGA Exposed Pad | 40-TFLGA Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad |
| Packaging | Tray | Tray | Tray | Tray | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified | Not Verified |
| Type | Clock Generator | Clock Generator | Clock Generator | Clock Generator | Clock Generator |
| PLL | Yes | Yes | Yes | Yes | Yes |
| Input | LVCMOS, Crystal | LVCMOS, Crystal | LVCMOS, Crystal | Clock, Crystal, LVCMOS | LVCMOS, Crystal |
| Output | HCSL, LVCMOS, LVDS, LVPECL | HCSL, LVCMOS, LVDS, LVPECL | HCSL, LVCMOS, LVDS, LVPECL | HCSL, LVCMOS, LVDS, LVPECL | HCSL, LVCMOS, LVDS, LVPECL |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 2:6 | 3:12 | 3:8 | 2:6 | 2:6 |
| Differential - Input:Output | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes |
| Frequency - Max | 200MHz | 200MHz | 200MHz | 200MHz | 200MHz |
| Divider/Multiplier | Yes/No | Yes/No | Yes/No | Yes/No | Yes/No |
| Voltage - Supply | 1.71V ~ 3.63V | 1.71V ~ 3.63V | 1.71V ~ 3.63V | 1.71V ~ 3.63V | 1.71V ~ 3.63V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Supplier Device Package | 32-QFN (5x5) | 48-LGA (6x6) | 40-LGA (6x6) | 32-QFN (5x5) | 32-QFN (5x5) |
