Kingbright SC23-11SRWA
- Part No.:
- SC23-11SRWA
- Manufacturer:
- Kingbright
- Category:
- LED Character and Numeric
- Package:
- 10-DIP (2.366", 60.10mm)
- Datasheet:
-
SC23-11SRWA.pdf
- Description:
- 2.3" RED LED DISPLAY
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
SC23-11SRWA Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Kingbright
- Series:
- -
- Package/Case:
- 10-DIP (2.366", 60.10mm)
- Packaging:
- Bulk
- Product Status:
- Active
- Display Format:
- -
- Number of Characters:
- 1
- Size / Dimension:
- 2.756" H x 1.890" W x 0.472" D (70.00mm x 48.00mm x 12.00mm)
- Digit/Alpha Size:
- 2.24" (56.90mm)
- Display Type:
- 7-Segment
- Common Pin:
- Common Cathode
- Color:
- Red
- Voltage - Forward (Vf) (Typ):
- 7.2V
- Current - Test:
- 10mA
- Millicandela Rating:
- 190mcd
- Wavelength - Peak:
- 655nm
- Power Dissipation (Max):
- 75mW

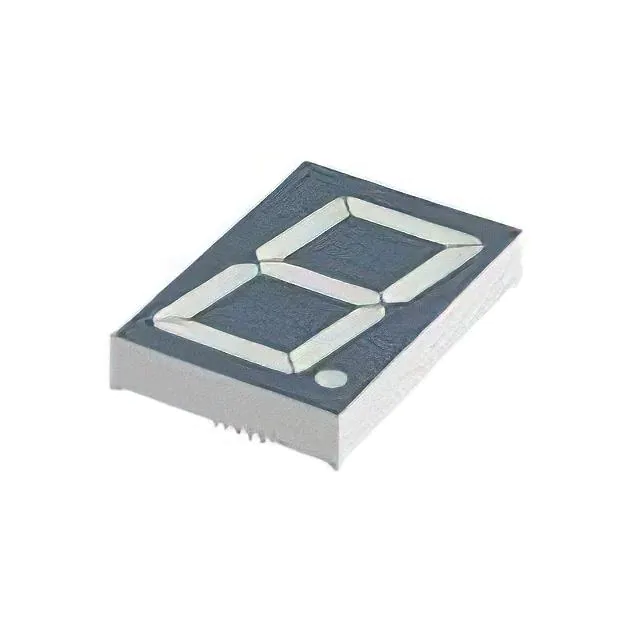

| Image |  |
 |
|
 |
|
| Part Number | SC23-11SURKWA | SC23-11EWA | SC23-11SRWA | SC23-11YWA | SC23-12EWA |
| Manufacturer | Kingbright | Kingbright | Kingbright | Kingbright | Kingbright |
| Series | - | - | - | - | - |
| Package/Case | 10-DIP (2.366", 60.10mm) | 10-DIP (2.367", 60.10mm) | 10-DIP (2.367", 60.10mm) | 10-DIP (2.367", 60.10mm) | 10-DIP (2.367", 60.10mm) |
| Packaging | Bulk | Tube | Tube | Tube | Tube |
| Product Status | Active | Active | Obsolete | Active | Active |
| Display Format | - | - | - | - | - |
| Number of Characters | 1 | 1 | 1 | 1 | 1 |
| Size / Dimension | 2.756" H x 1.890" W x 0.482" D (70.00mm x 48.00mm x 12.25mm) | 2.756" H x 1.890" W x 0.472" D (70.00mm x 48.00mm x 12.00mm) | 2.756" H x 1.890" W x 0.472" D (70.00mm x 48.00mm x 12.00mm) | 2.756" H x 1.890" W x 0.472" D (70.00mm x 48.00mm x 12.00mm) | 2.756" H x 1.890" W x 0.472" D (70.00mm x 48.00mm x 12.00mm) |
| Digit/Alpha Size | 2.24" (56.90mm) | 2.24" (56.90mm) | 2.24" (56.90mm) | 2.24" (56.90mm) | 2.24" (56.90mm) |
| Display Type | 7-Segment | 7-Segment | 7-Segment | 7-Segment | 7-Segment |
| Common Pin | Common Cathode | Common Cathode | Common Cathode | Common Cathode | Common Cathode |
| Color | Red | Red | Red | Yellow | Red |
| Voltage - Forward (Vf) (Typ) | 3.7V, 7.4V | 8V | 7.4V | 8.4V | 8V |
| Current - Test | 10mA | 20mA | 20mA | 20mA | 20mA |
| Millicandela Rating | 440mcd | 57mcd | 190mcd | 40mcd | 57mcd |
| Wavelength - Peak | 645nm | 627nm | 660nm | 590nm | 627nm |
| Power Dissipation (Max) | 75mW | 300mW | 300mW | 300mW | 300mW |
