Kingbright SC04-12CGKWA
- Part No.:
- SC04-12CGKWA
- Manufacturer:
- Kingbright
- Category:
- LED Character and Numeric
- Package:
- 10-DIP (0.295", 7.50mm)
- Datasheet:
-
SC04-12CGKWA.pdf
- Description:
- DISPLAY 7SEG 0.4" SGL GRN 10DIP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
SC04-12CGKWA Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Kingbright
- Series:
- -
- Package/Case:
- 10-DIP (0.295", 7.50mm)
- Packaging:
- Tube
- Product Status:
- Active
- Display Format:
- -
- Number of Characters:
- 1
- Size / Dimension:
- 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm)
- Digit/Alpha Size:
- 0.40" (10.16mm)
- Display Type:
- 7-Segment
- Common Pin:
- Common Cathode
- Color:
- Green
- Voltage - Forward (Vf) (Typ):
- 2.1V
- Current - Test:
- 20mA
- Millicandela Rating:
- 30mcd
- Wavelength - Peak:
- 574nm
- Power Dissipation (Max):
- 75mW
| Image |  |
 |
 |
 |
|

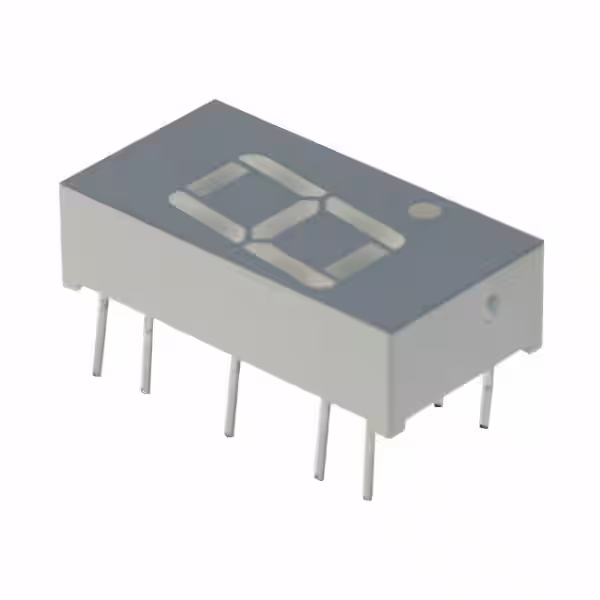

| Part Number | SC04-11GWA | SC04-11SURKWA | SC04-11EWA | SC04-11SRWA | SC04-12EWA |
| Manufacturer | Kingbright | Kingbright | Kingbright | Kingbright | Kingbright |
| Series | - | - | - | - | - |
| Package/Case | 14-DIP (0.295", 7.50mm) | 14-DIP (0.295", 7.50mm), 10 Leads | 14-DIP (0.295", 7.50mm) | 14-DIP (0.295", 7.50mm) | 10-DIP (0.295", 7.50mm) |
| Packaging | Tube | Tube | Tube | Tube | Tube |
| Product Status | Active | Active | Active | Obsolete | Active |
| Display Format | - | - | - | - | - |
| Number of Characters | 1 | 1 | 1 | 1 | 1 |
| Size / Dimension | 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm) | 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm) | 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm) | 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm) | 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm) |
| Digit/Alpha Size | 0.40" (10.16mm) | 0.40" (10.16mm) | 0.40" (10.16mm) | 0.40" (10.16mm) | 0.40" (10.16mm) |
| Display Type | 7-Segment | 7-Segment | 7-Segment | 7-Segment | 7-Segment |
| Common Pin | Common Cathode | Common Cathode | Common Cathode | Common Cathode | Common Cathode |
| Color | Green | Red | Red | Red | Red |
| Voltage - Forward (Vf) (Typ) | 2.2V | 1.95V | 2V | 1.85V | 2V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA |
| Millicandela Rating | 8.6mcd | 80mcd | 5.6mcd | 30mcd | 5.6mcd |
| Wavelength - Peak | 565nm | 645nm | 627nm | 660nm | 627nm |
| Power Dissipation (Max) | 62.5mW | 75mW | 75mW | 75mW | 75mW |
