Panasonic Electric Works S4EB-12V
- Part No.:
- S4EB-12V
- Manufacturer:
- Panasonic Electric Works
- Category:
- Power Relays, Over 2 Amps
- Package:
- Description:
- RELAY GEN PURPOSE 4PST 4A 12V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
S4EB-12V Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Panasonic Electric Works
- Series:
- S
- Packaging:
- Box
- Product Status:
- Active
- Mounting Type:
- Through Hole
- Coil Voltage:
- 12VDC
- Contact Form:
- 4PST-NO (4 Form A)
- Contact Rating (Current):
- 4 A
- Switching Voltage:
- 250VAC, 48VDC - Max
- Load - Max Switching:
- 1000VA, 192W
- Coil Current:
- 16.7 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- PC Pin
- Seal Rating:
- Sealed - Fully
- Coil Insulation:
- -
- Must Operate Voltage:
- 8.4 VDC
- Must Release Voltage:
- 1.2 VDC
- Operate Time:
- 15 ms
- Release Time:
- 10 ms
- Operating Temperature:
- -55°C ~ 65°C
- Contact Material:
- Silver Alloy, Cadmium Free
- Relay Type:
- General Purpose
- Grade:
- -
- Qualification:
- -
| Image |  |
 |
 |
 |
 |

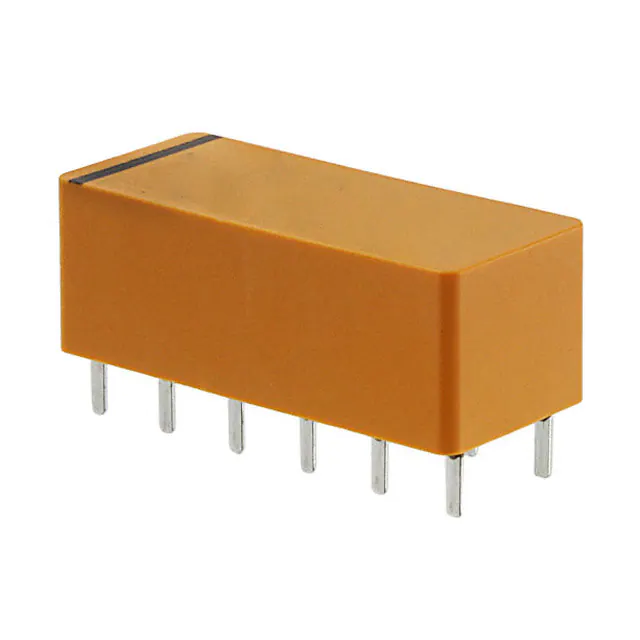

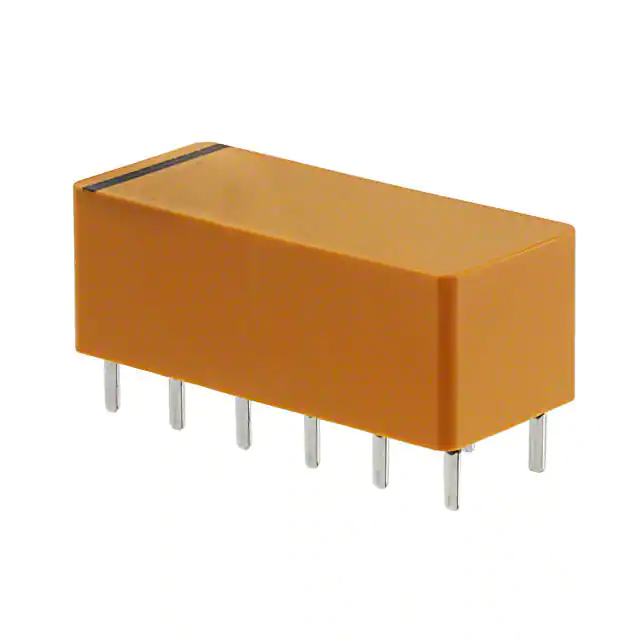

| Part Number | S4EB-5V | S4EB-12V | S4EB-24V | S4EB-L2-24V | S4EB-L-12V |
| Manufacturer | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works |
| Series | S | S | S | S | S |
| Packaging | Box | Box | Box | Box | Box |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Coil Voltage | 5VDC | 12VDC | 24VDC | 24VDC | 12VDC |
| Contact Form | 4PST-NO (4 Form A) | 4PST-NO (4 Form A) | 4PST-NO (4 Form A) | 4PST-NO (4 Form A) | 4PST-NO (4 Form A) |
| Contact Rating (Current) | 4 A | 4 A | 4 A | 4 A | 4 A |
| Switching Voltage | 250VAC, 48VDC - Max | 250VAC, 48VDC - Max | 250VAC, 48VDC - Max | 250VAC, 48VDC - Max | 250VAC, 48VDC - Max |
| Load - Max Switching | 1000VA, 192W | 1000VA, 192W | 1000VA, 192W | 1000VA, 192W | 1000VA, 192W |
| Coil Current | 38.5 mA | 16.7 mA | 8.4 mA | 8.4 mA | 16.7 mA |
| Coil Type | Non Latching | Non Latching | Non Latching | Latching, Dual Coil | Latching, Single Coil |
| Features | - | - | - | - | - |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Seal Rating | Sealed - Fully | Sealed - Fully | Sealed - Fully | Sealed - Fully | Sealed - Fully |
| Coil Insulation | - | - | - | - | - |
| Must Operate Voltage | 3.5 VDC | 8.4 VDC | 16.8 VDC | 16.8 VDC | 8.4 VDC |
| Must Release Voltage | 0.5 VDC | 1.2 VDC | 2.4 VDC | - | - |
| Operate Time | 15 ms | 15 ms | 15 ms | 15 ms | 15 ms |
| Release Time | 10 ms | 10 ms | 10 ms | 15 ms | 15 ms |
| Operating Temperature | -55°C ~ 65°C | -55°C ~ 65°C | -55°C ~ 65°C | -55°C ~ 65°C | -55°C ~ 65°C |
| Contact Material | Silver Alloy, Cadmium Free | Silver Alloy, Cadmium Free | Silver Alloy, Cadmium Free | Silver Alloy, Cadmium Free | Silver Alloy, Cadmium Free |
| Relay Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
