Littelfuse Inc. RXEF017-0.142
- Part No.:
- RXEF017-0.142
- Manufacturer:
- Littelfuse Inc.
- Category:
- PTC Resettable Fuses
- Package:
- Radial, Disc
- Datasheet:
-
RXEF017-0.142.pdf
- Description:
- PTC RESET FUSE 60V 170MA RADIAL
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
RXEF017-0.142 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Littelfuse Inc.
- Package/Case:
- Radial, Disc
- Series:
- PolySwitch®, RXEF
- Packaging:
- Bulk
- Product Status:
- Active
- Type:
- Polymeric
- Voltage - Max:
- 60V
- Current - Hold (Ih) (Max):
- 170 mA
- Current - Trip (It):
- 340 mA
- Current - Max:
- 40 A
- Time to Trip:
- 3 s
- Resistance - Initial (Ri) (Min):
- 3.3 Ohms
- Resistance - Post Trip (R1) (Max):
- 8 Ohms
- Resistance - 25°C (Typ):
- -
- Operating Temperature:
- -40°C ~ 85°C
- Grade:
- -
- Qualification:
- -
- Ratings:
- -
- Mounting Type:
- Through Hole
- Size / Dimension:
- 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
- Height - Seated (Max):
- 0.500" (12.70mm)
- Thickness (Max):
- -
- Lead Spacing:
- 0.199" (5.05mm)

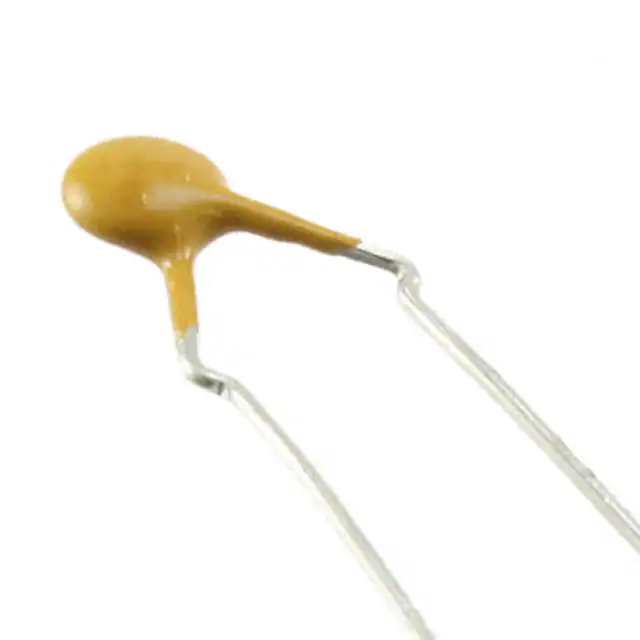

| Image |  |
|
 |
|
|
| Part Number | RXEF017 | RXEF017-2 | RXEF017S-2 | RXEF017S | RXEF017-AP |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Package/Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Series | PolySwitch®, RXEF | PolySwitch®, RXEF | PolySwitch®, RXEF | PolySwitch®, RXEF | PolySwitch®, RXEF |
| Packaging | Bag | Tape & Reel (TR) | Tape & Reel (TR) | Bag | Cut Tape (CT) |
| Product Status | Active | Active | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 60V | 60V | 60V | 60V | 60V |
| Current - Hold (Ih) (Max) | 170 mA | 170 mA | 170 mA | 170 mA | 170 mA |
| Current - Trip (It) | 340 mA | 340 mA | 340 mA | 340 mA | 340 mA |
| Current - Max | 40 A | 40 A | 40 A | 40 A | 40 A |
| Time to Trip | 3 s | 3 s | 3 s | 3 s | 3 s |
| Resistance - Initial (Ri) (Min) | 3.3 Ohms | 3.3 Ohms | 3.3 Ohms | 3.3 Ohms | 3.3 Ohms |
| Resistance - Post Trip (R1) (Max) | 8 Ohms | 8 Ohms | 8 Ohms | 8 Ohms | 8 Ohms |
| Resistance - 25°C (Typ) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Size / Dimension | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) |
| Height - Seated (Max) | 0.500" (12.70mm) | 0.500" (12.70mm) | 0.441" (11.20mm) | 0.500" (12.70mm) | 0.500" (12.70mm) |
| Thickness (Max) | - | - | - | - | - |
| Lead Spacing | 0.199" (5.05mm) | 0.200" (5.08mm) | 0.199" (5.05mm) | 0.199" (5.05mm) | 0.199" (5.05mm) |
