Carlo Gavazzi Inc. RPYS001024D
- Part No.:
- RPYS001024D
- Manufacturer:
- Carlo Gavazzi Inc.
- Category:
- Power Relays, Over 2 Amps
- Package:
- Datasheet:
-
RPYS001024D.pdf
- Description:
- RELAY GEN PURPOSE SPDT 10A 24V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
RPYS001024D Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Carlo Gavazzi Inc.
- Series:
- RPYS
- Packaging:
- Box
- Product Status:
- Obsolete
- Mounting Type:
- Socketable
- Coil Voltage:
- 24VDC
- Contact Form:
- SPDT (1 Form C)
- Contact Rating (Current):
- 10 A
- Switching Voltage:
- 250VAC, 30VDC - Max
- Load - Max Switching:
- 2500VA, 300W
- Coil Current:
- 21.8 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- Plug In, 5 Pin
- Seal Rating:
- -
- Coil Insulation:
- -
- Must Operate Voltage:
- 18 VDC
- Must Release Voltage:
- 2.4 VDC
- Operate Time:
- 20 ms
- Release Time:
- 10 ms
- Operating Temperature:
- -40°C ~ 55°C
- Contact Material:
- Silver Alloy
- Relay Type:
- General Purpose
- Grade:
- -
- Qualification:
- -

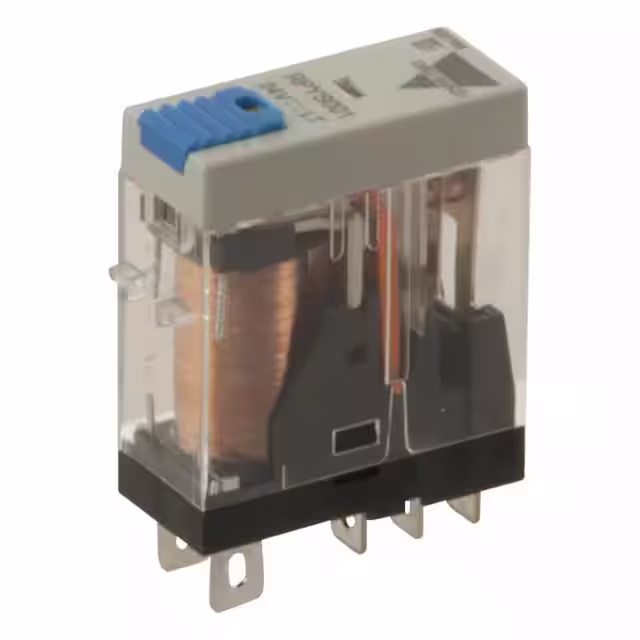

| Image |  |
 |
| Part Number | RPYS001024DLT | RPYS001024D |
| Manufacturer | Carlo Gavazzi Inc. | Carlo Gavazzi Inc. |
| Series | RPYS | RPYS |
| Packaging | Box | Box |
| Product Status | Obsolete | Obsolete |
| Mounting Type | Socketable | Socketable |
| Coil Voltage | 24VDC | 24VDC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C) |
| Contact Rating (Current) | 10 A | 10 A |
| Switching Voltage | 250VAC, 30VDC - Max | 250VAC, 30VDC - Max |
| Load - Max Switching | 2500VA, 300W | 2500VA, 300W |
| Coil Current | 21.8 mA | 21.8 mA |
| Coil Type | Non Latching | Non Latching |
| Features | Lighted Indicator, Test Button | - |
| Termination Style | Plug In, 5 Pin | Plug In, 5 Pin |
| Seal Rating | - | - |
| Coil Insulation | - | - |
| Must Operate Voltage | 18 VDC | 18 VDC |
| Must Release Voltage | 2.4 VDC | 2.4 VDC |
| Operate Time | 20 ms | 20 ms |
| Release Time | 10 ms | 10 ms |
| Operating Temperature | -40°C ~ 55°C | -40°C ~ 55°C |
| Contact Material | Silver Alloy | Silver Alloy |
| Relay Type | General Purpose | General Purpose |
| Grade | - | - |
| Qualification | - | - |
