Schaffner EMC Inc. RN218-2.2-02-3M3
- Part No.:
- RN218-2.2-02-3M3
- Manufacturer:
- Schaffner EMC Inc.
- Category:
- Common Mode Chokes
- Package:
- Vertical, 4 PC Pin
- Datasheet:
-
RN218-2.2-02-3M3.pdf
- Description:
- CMC 3.3MH 2.2A 2LN TH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
RN218-2.2-02-3M3 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Schaffner EMC Inc.
- Package/Case:
- Vertical, 4 PC Pin
- Filter Type:
- Power Line
- Number of Lines:
- 2
- Impedance @ Frequency:
- -
- Current Rating (Max):
- 3.3 mH @ 10 kHz
- DC Resistance (DCR) (Max):
- 2.2A
- Voltage Rating - DC:
- 100mOhm (Typ)
- Voltage Rating - AC:
- -
- Operating Temperature:
- 300V
- Ratings:
- -40°C ~ 100°C
- Approval Agency:
- -
- Features:
- ENEC, UR, VDE
- Mounting Type:
- -
- Size / Dimension:
- -
- Height (Max):
- -
| Image |  |
|
|
 |
 |

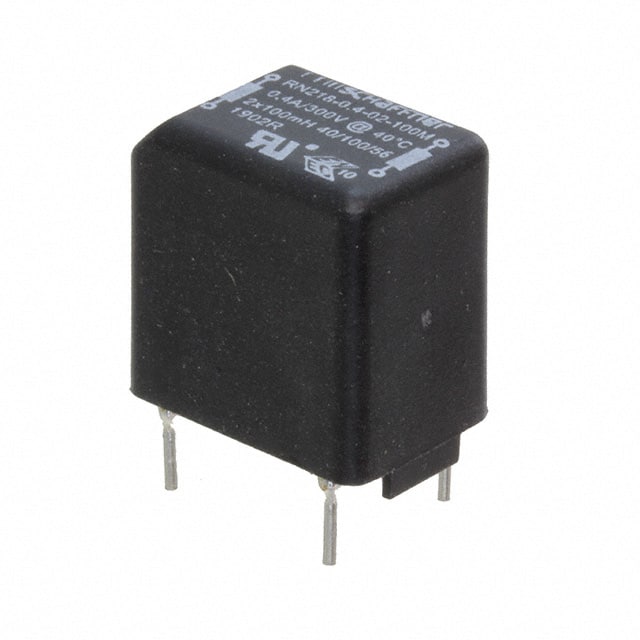

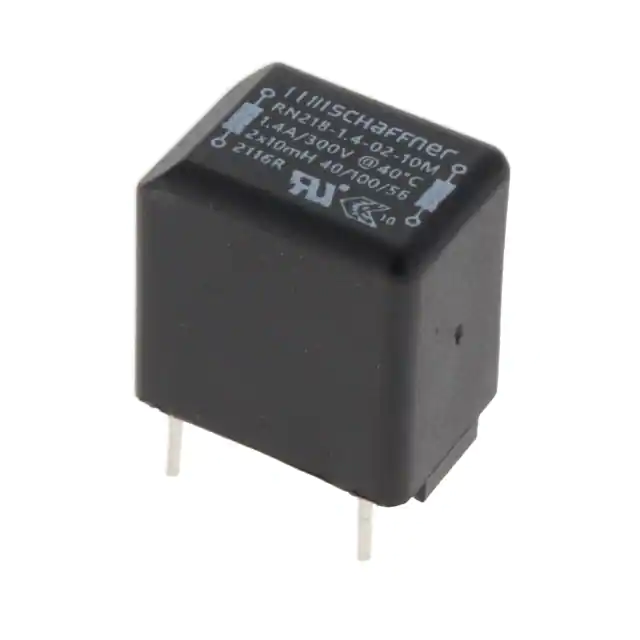

| Part Number | RN218-2.2-02-3M3 | RN218-1.7-02-6M8 | RN218-0.6-02-47M | RN218-0.4-02-100M | RN218-1.4-02-10M |
| Manufacturer | Schaffner EMC Inc. | Schaffner EMC Inc. | Schaffner EMC Inc. | Schaffner EMC Inc. | Schaffner EMC Inc. |
| Package/Case | Vertical, 4 PC Pin | Vertical, 4 PC Pin | Vertical, 4 PC Pin | Vertical, 4 PC Pin | Vertical, 4 PC Pin |
| Filter Type | Power Line | Power Line | Power Line | Power Line | Power Line |
| Number of Lines | 2 | 2 | 2 | 2 | 2 |
| Impedance @ Frequency | - | - | - | - | - |
| Current Rating (Max) | 3.3 mH @ 10 kHz | 6.8 mH @ 10 kHz | 47 mH @ 10 kHz | 100 mH @ 10 kHz | 10 mH @ 10 kHz |
| DC Resistance (DCR) (Max) | 2.2A | 1.7A | 600mA | 400mA | 1.4A |
| Voltage Rating - DC | 100mOhm (Typ) | 180mOhm (Typ) | 1.2Ohm (Typ) | 2.8Ohm (Typ) | 330mOhm (Typ) |
| Voltage Rating - AC | - | - | - | - | - |
| Operating Temperature | 300V | 300V | 300V | 300V | 300V |
| Ratings | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Approval Agency | - | - | - | - | - |
| Features | ENEC, UR, VDE | ENEC, UR, VDE | ENEC, UR, VDE | ENEC, UR, VDE | ENEC, UR, VDE |
| Mounting Type | - | - | - | - | - |
| Size / Dimension | - | - | - | - | - |
| Height (Max) | - | - | - | - | - |
