Standex-Meder Electronics RM05-4AS-4/4
- Part No.:
- RM05-4AS-4/4
- Manufacturer:
- Standex-Meder Electronics
- Category:
- Reed Relays
- Package:
- Datasheet:
-
RM05-4AS-4/4.pdf
- Description:
- RELAY REED 4PST 300MA 5V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
RM05-4AS-4/4 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Standex-Meder Electronics
- Series:
- RM
- Packaging:
- Tray
- Product Status:
- Obsolete
- Mounting Type:
- Surface Mount
- Coil Voltage:
- 5VDC
- Contact Form:
- SPST-NO (1 Form A) x 4
- Contact Rating (Current):
- 300 mA
- Switching Voltage:
- 180VAC, 180VDC - Max
- Coil Current:
- 27 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- BGA
- Seal Rating:
- -
- Must Operate Voltage:
- 3.75 VDC
- Must Release Voltage:
- 0.5 VDC
- Operate Time:
- 0.6 ms
- Release Time:
- 0.05 ms
- Operating Temperature:
- -20°C ~ 85°C
- Contact Material:
- -
| Image |  |
 |
|
|

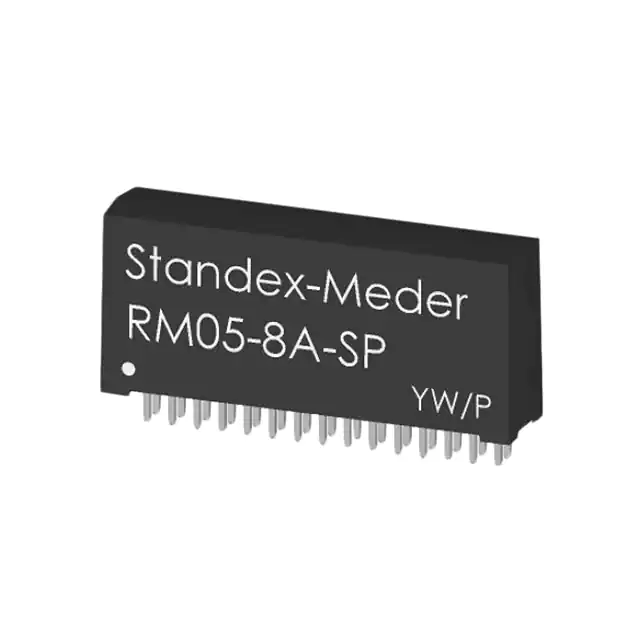

| Part Number | RM05-8A-SP | RM05-6AS-4/1 | RM05-4AS-4/2 | RM05-4AS-4/4 |
| Manufacturer | Standex-Meder Electronics | Standex-Meder Electronics | Standex-Meder Electronics | Standex-Meder Electronics |
| Series | RM | RM | RM | RM |
| Packaging | Bulk | Tray | Tray | Tray |
| Product Status | Active | Obsolete | Obsolete | Obsolete |
| Mounting Type | Through Hole | Surface Mount | Surface Mount | Surface Mount |
| Coil Voltage | 5VDC | 5VDC | 5VDC | 5VDC |
| Contact Form | 8PST-NO (8 Form A) | 6PST-NO (6 Form A) | SPST-NO (1 Form A) x 4 | SPST-NO (1 Form A) x 4 |
| Contact Rating (Current) | 500 mA | 300 mA | 300 mA | 300 mA |
| Switching Voltage | 170VAC, 170VDC - Max | 180VAC, 180VDC - Max | 180VAC, 180VDC - Max | 180VAC, 180VDC - Max |
| Coil Current | 10 mA | 27 mA | 27 mA | 27 mA |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching |
| Features | - | - | - | - |
| Termination Style | PC Pin | BGA | BGA | BGA |
| Seal Rating | - | - | - | - |
| Must Operate Voltage | - | 3.75 VDC | 3.75 VDC | 3.75 VDC |
| Must Release Voltage | - | 0.5 VDC | 0.5 VDC | 0.5 VDC |
| Operate Time | 0.6 ms | 0.6 ms | 0.6 ms | 0.6 ms |
| Release Time | 0.1 ms | 0.05 ms | 0.05 ms | 0.05 ms |
| Operating Temperature | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C |
| Contact Material | - | - | - | - |
