Recom Power RAC15-05SK
- Part No.:
- RAC15-05SK
- Manufacturer:
- Recom Power
- Category:
- AC DC Converters
- Package:
- 5-DIP Module, 4 Leads
- Datasheet:
-
RAC15-05SK.pdf
- Description:
- AC/DC CONVERTER 5V 15W
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
RAC15-05SK Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Recom Power
- Series:
- POWERLINE RAC15-K (15W)
- Package/Case:
- 5-DIP Module, 4 Leads
- Packaging:
- Tube
- Product Status:
- Active
- Type:
- Enclosed
- Number of Outputs:
- 1
- Voltage - Input:
- 85 ~ 264 VAC, 120 ~ 370 VDC
- Voltage - Output 1:
- 5V
- Voltage - Output 2:
- -
- Voltage - Output 3:
- -
- Voltage - Output 4:
- -
- Current - Output (Max):
- 3A
- Power (Watts):
- 15 W
- Applications:
- Household Appliances, ITE (Commercial)
- Features:
- IP20, Universal Input
- Operating Temperature:
- -40°C ~ 85°C (With Derating)
- Efficiency:
- 84%
- Mounting Type:
- Through Hole
- Size / Dimension:
- 2.07" L x 1.08" W x 0.91" H (52.5mm x 27.4mm x 23.0mm)
- Approval Agency:
- CE, cURus
- Standard Number:
- -

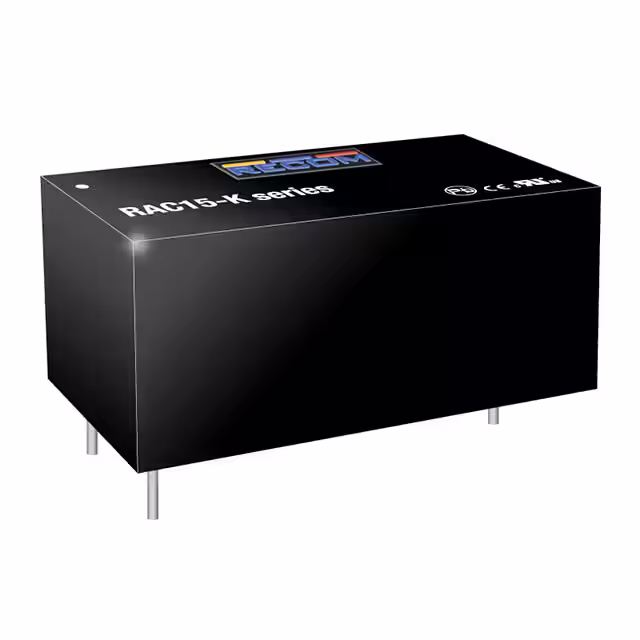

| Image |  |
 |
 |
|
 |
| Part Number | RAC15-05SK | RAC15-12SK | RAC15-12SK/480 | RAC15-24SK/480 | RAC15-15SK |
| Manufacturer | Recom Power | Recom Power | Recom Power | Recom Power | Recom Power |
| Series | POWERLINE RAC15-K (15W) | POWERLINE RAC15-K (15W) | RAC15-K/480 (15W) | RAC15-K/480 (15W) | POWERLINE RAC15-K (15W) |
| Package/Case | 5-DIP Module, 4 Leads | 5-DIP Module, 4 Leads | 4-DIP Module | 4-DIP Module | 5-DIP Module, 4 Leads |
| Packaging | Tube | Tube | Tube | Tube | Tube |
| Product Status | Active | Active | Active | Active | Active |
| Type | Enclosed | Enclosed | Enclosed | Enclosed | Enclosed |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input | 85 ~ 264 VAC, 120 ~ 370 VDC | 85 ~ 264 VAC, 120 ~ 370 VDC | 85 ~ 528 VAC | 85 ~ 528 VAC | 85 ~ 264 VAC, 120 ~ 370 VDC |
| Voltage - Output 1 | 5V | 12V | 12V | 24V | 15V |
| Voltage - Output 2 | - | - | - | - | - |
| Voltage - Output 3 | - | - | - | - | - |
| Voltage - Output 4 | - | - | - | - | - |
| Current - Output (Max) | 3A | 1.67A | 1.25A | 625mA | 1A |
| Power (Watts) | 15 W | 15 W | 15 W | 15 W | 15 W |
| Applications | Household Appliances, ITE (Commercial) | Household Appliances, ITE (Commercial) | ITE (Commercial), Laboratory | ITE (Commercial), Laboratory | Household Appliances, ITE (Commercial) |
| Features | IP20, Universal Input | IP20, Universal Input | Baseplate | Baseplate | IP20, Universal Input |
| Operating Temperature | -40°C ~ 85°C (With Derating) | -40°C ~ 85°C (With Derating) | -40°C ~ 90°C (With Derating) | -40°C ~ 90°C (With Derating) | -40°C ~ 85°C (With Derating) |
| Efficiency | 84% | 86% | 84% | 87% | 86% |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Size / Dimension | 2.07" L x 1.08" W x 0.91" H (52.5mm x 27.4mm x 23.0mm) | 2.07" L x 1.08" W x 0.91" H (52.5mm x 27.4mm x 23.0mm) | 2.07" L x 1.57" W x 1.00" H (52.5mm x 40.0mm x 25.5mm) | 2.07" L x 1.57" W x 1.00" H (52.5mm x 40.0mm x 25.5mm) | 2.07" L x 1.08" W x 0.91" H (52.5mm x 27.4mm x 23.0mm) |
| Approval Agency | CE, cURus | CE, cURus | CE, cURus | CE, cURus | CE, cURus |
| Standard Number | - | - | 61010-1; 62368-1 | 61010-1; 62368-1 | - |
