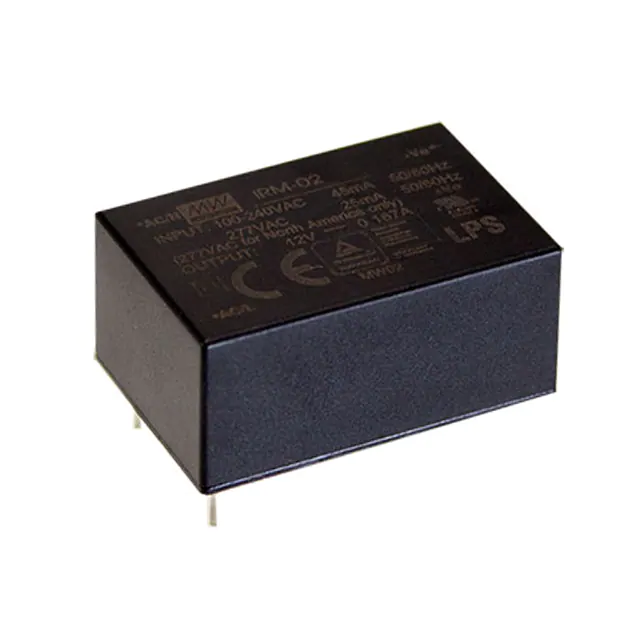

MEAN WELL USA Inc. IRM-02-15
- Part No.:
- IRM-02-15
- Manufacturer:
- MEAN WELL USA Inc.
- Category:
- AC DC Converters
- Package:
- 4-DIP Module
- Datasheet:
-
IRM-02-15.pdf
- Description:
- AC/DC CONVERTER 15V 2W
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
IRM-02-15 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- MEAN WELL USA Inc.
- Series:
- IRM-02 (2W)
- Package/Case:
- 4-DIP Module
- Packaging:
- Tube
- Product Status:
- Active
- Type:
- Enclosed
- Number of Outputs:
- 1
- Voltage - Input:
- 85 ~ 305 VAC, 120 ~ 430 VDC
- Voltage - Output 1:
- 15V
- Voltage - Output 2:
- -
- Voltage - Output 3:
- -
- Voltage - Output 4:
- -
- Current - Output (Max):
- 133mA
- Power (Watts):
- 2 W
- Applications:
- ITE (Commercial)
- Features:
- Universal Input
- Operating Temperature:
- -30°C ~ 85°C (With Derating)
- Efficiency:
- 75%
- Mounting Type:
- Through Hole
- Size / Dimension:
- 1.33" L x 0.87" W x 0.59" H (33.7mm x 22.2mm x 15.0mm)
- Approval Agency:
- CB, CE, cURus, TUV
- Standard Number:
- -
| Image |  |
|
|
 |
|

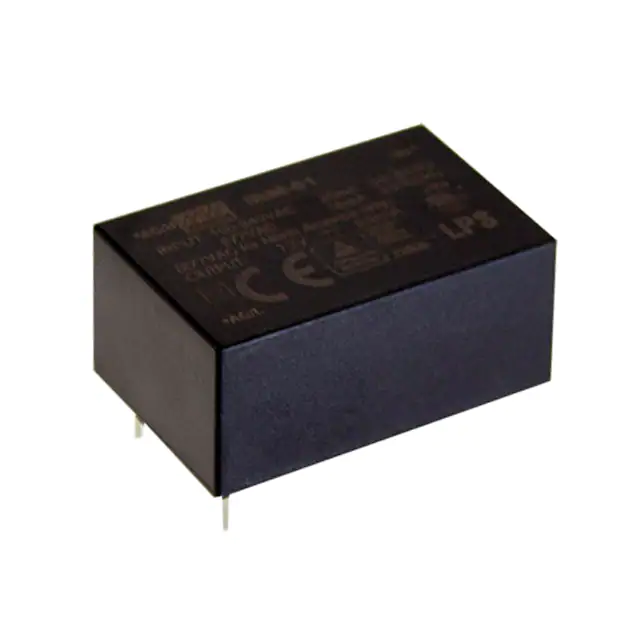

| Part Number | IRM-01-5 | IRM-01-12 | IRM-01-3.3 | IRM-02-5 | IRM-02-12 |
| Manufacturer | MEAN WELL USA Inc. | MEAN WELL USA Inc. | MEAN WELL USA Inc. | MEAN WELL USA Inc. | MEAN WELL USA Inc. |
| Series | IRM-01 (1W) | IRM-01 (1W) | IRM-01 (1W) | IRM-02 (2W) | IRM-02 (2W) |
| Package/Case | 4-DIP Module | 4-DIP Module | 4-DIP Module | 4-DIP Module | 4-DIP Module |
| Packaging | Tube | Tube | Tube | Tube | Tube |
| Product Status | Active | Active | Active | Active | Active |
| Type | Enclosed | Enclosed | Enclosed | Enclosed | Enclosed |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input | 85 ~ 305 VAC, 120 ~ 430 VDC | 85 ~ 305 VAC, 120 ~ 430 VDC | 85 ~ 305 VAC, 120 ~ 430 VDC | 85 ~ 305 VAC, 120 ~ 430 VDC | 85 ~ 305 VAC, 120 ~ 430 VDC |
| Voltage - Output 1 | 5V | 12V | 3.3V | 5V | 12V |
| Voltage - Output 2 | - | - | - | - | - |
| Voltage - Output 3 | - | - | - | - | - |
| Voltage - Output 4 | - | - | - | - | - |
| Current - Output (Max) | 200mA | 83mA | 300mA | 400mA | 167mA |
| Power (Watts) | 1 W | 1 W | 1 W | 2 W | 2 W |
| Applications | ITE (Commercial) | ITE (Commercial) | ITE (Commercial) | ITE (Commercial) | ITE (Commercial) |
| Features | Universal Input | Universal Input | Universal Input | Universal Input | Universal Input |
| Operating Temperature | -30°C ~ 85°C (With Derating) | -30°C ~ 85°C (With Derating) | -30°C ~ 85°C (With Derating) | -30°C ~ 85°C (With Derating) | -30°C ~ 85°C (With Derating) |
| Efficiency | 70% | 74% | 66% | 70% | 74% |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Size / Dimension | 1.33" L x 0.87" W x 0.59" H (33.7mm x 22.2mm x 15.0mm) | 1.33" L x 0.87" W x 0.59" H (33.7mm x 22.2mm x 15.0mm) | 1.33" L x 0.87" W x 0.59" H (33.7mm x 22.2mm x 15.0mm) | 1.33" L x 0.87" W x 0.59" H (33.7mm x 22.2mm x 15.0mm) | 1.33" L x 0.87" W x 0.59" H (33.7mm x 22.2mm x 15.0mm) |
| Approval Agency | CB, CE, cURus, TUV | CB, CE, cURus, TUV | CB, CE, cURus, TUV | CB, CE, cURus, TUV | CB, CE, cURus, TUV |
| Standard Number | - | - | - | - | - |
- Include Parts
- Popular Search
The following parts include "IRM-02-15" in Silicon Labs IRM-02-15.
- Part Number
- Manufacturer
- Package
- Description
- IRM-01-5 MEAN WELL USA Inc. 4-DIP Module AC/DC CONVERTER 5V 1W
- IRM-01-12 MEAN WELL USA Inc. 4-DIP Module AC/DC CONVERTER 12V 1W
- IRM-01-3.3 MEAN WELL USA Inc. 4-DIP Module AC/DC CONVERTER 3.3V 1W
- IRM-02-5 MEAN WELL USA Inc. 4-DIP Module AC/DC CONVERTER 5V 2W
- IRM-02-12 MEAN WELL USA Inc. 4-DIP Module AC/DC CONVERTER 12V 2W
- IRM-02-15 MEAN WELL USA Inc. 4-DIP Module AC/DC CONVERTER 15V 2W
- IRM-03-24 MEAN WELL USA Inc. 5-DIP Module AC/DC CONVERTER 24V 3W
- IRM-03-5 MEAN WELL USA Inc. 5-DIP Module AC/DC CONVERTER 5V 3W
- IRM-03-3.3 MEAN WELL USA Inc. 5-DIP Module AC/DC CONVERTER 3.3V 3W
- IRM-03-15 MEAN WELL USA Inc. 5-DIP Module AC/DC CONVERTER 15V 3W
