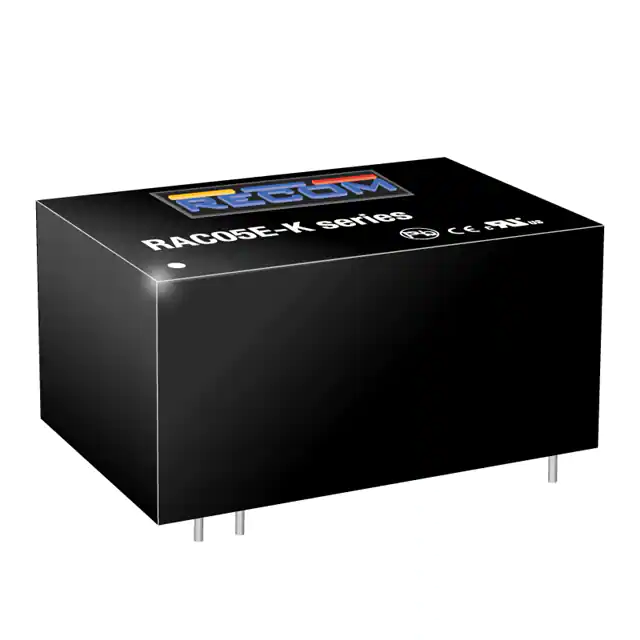

Recom Power RAC05E-12SKT
- Part No.:
- RAC05E-12SKT
- Manufacturer:
- Recom Power
- Category:
- AC DC Converters
- Package:
- 9-DIP Module, 4 Leads
- Datasheet:
-
RAC05E-12SKT.pdf
- Description:
- AC/DC CONVERTER 12V 5W
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
RAC05E-12SKT Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Recom Power
- Series:
- POWERLINE RAC05E-KT (5W)
- Package/Case:
- 9-DIP Module, 4 Leads
- Packaging:
- Tube
- Product Status:
- Active
- Type:
- Enclosed
- Number of Outputs:
- 1
- Voltage - Input:
- 90 ~ 264 VAC, 130 ~ 370 VDC
- Voltage - Output 1:
- 12V
- Voltage - Output 2:
- -
- Voltage - Output 3:
- -
- Voltage - Output 4:
- -
- Current - Output (Max):
- 417mA
- Power (Watts):
- 5 W
- Applications:
- Household Appliances, ITE (Commercial)
- Features:
- Adjustable Output, Universal Input
- Operating Temperature:
- -25°C ~ 75°C (With Derating)
- Efficiency:
- 78%
- Mounting Type:
- Through Hole
- Size / Dimension:
- 1.26" L x 1.07" W x 0.86" H (32.1mm x 27.1mm x 21.8mm)
- Approval Agency:
- CB, CE, cURus, EAC, UL
- Standard Number:
- 60335-1; 62368-1
| Image |  |
|
 |
|
|
| Part Number | RAC05E-12SKT | RAC05E-05SKT | RAC05E-12SK | RAC05E-05SK | RAC05E-04SKT |
| Manufacturer | Recom Power | Recom Power | Recom Power | Recom Power | Recom Power |
| Series | POWERLINE RAC05E-KT (5W) | POWERLINE RAC05E-KT (5W) | POWERLINE RAC05E-K (5W) | POWERLINE RAC05E-K (5W) | POWERLINE RAC05E-KT (5W) |
| Package/Case | 9-DIP Module, 4 Leads | 9-DIP Module, 4 Leads | 5-DIP Module | 5-DIP Module | 9-DIP Module, 4 Leads |
| Packaging | Tube | Tube | Tube | Tube | Tube |
| Product Status | Active | Active | Active | Active | Active |
| Type | Enclosed | Enclosed | Enclosed | Enclosed | Enclosed |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input | 90 ~ 264 VAC, 130 ~ 370 VDC | 90 ~ 264 VAC, 130 ~ 370 VDC | 90 ~ 264 VAC, 130 ~ 370 VDC | 90 ~ 264 VAC, 130 ~ 370 VDC | 90 ~ 264 VAC, 130 ~ 370 VDC |
| Voltage - Output 1 | 12V | 5V | 12V | 5V | 4V |
| Voltage - Output 2 | - | - | - | - | - |
| Voltage - Output 3 | - | - | - | - | - |
| Voltage - Output 4 | - | - | - | - | - |
| Current - Output (Max) | 417mA | 1A | 417mA | 1A | 1.25A |
| Power (Watts) | 5 W | 5 W | 5 W | 5 W | 5 W |
| Applications | Household Appliances, ITE (Commercial) | Household Appliances, ITE (Commercial) | Household Appliances, ITE (Commercial) | Household Appliances, ITE (Commercial) | Household Appliances, ITE (Commercial) |
| Features | Adjustable Output, Universal Input | Adjustable Output, Universal Input | Adjustable Output, Universal Input | Adjustable Output, Universal Input | Adjustable Output, Universal Input |
| Operating Temperature | -25°C ~ 75°C (With Derating) | -25°C ~ 75°C (With Derating) | -25°C ~ 75°C (With Derating) | -25°C ~ 75°C (With Derating) | -25°C ~ 75°C (With Derating) |
| Efficiency | 78% | 74% | 78% | 74% | 72% |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Size / Dimension | 1.26" L x 1.07" W x 0.86" H (32.1mm x 27.1mm x 21.8mm) | 1.26" L x 1.07" W x 0.86" H (32.1mm x 27.1mm x 21.8mm) | 1.46" L x 0.94" W x 0.71" H (37.0mm x 24.0mm x 18.0mm) | 1.46" L x 0.94" W x 0.71" H (37.0mm x 24.0mm x 18.0mm) | 1.26" L x 1.07" W x 0.86" H (32.1mm x 27.1mm x 21.8mm) |
| Approval Agency | CB, CE, cURus, EAC, UL | CB, CE, cURus, EAC, UL | CB, CE, cURus, EAC, UL | CB, CE, cURus, EAC, UL | CB, CE, cURus, EAC, UL |
| Standard Number | 60335-1; 62368-1 | 60335-1; 62368-1 | 60335-1; 62368-1 | 60335-1; 62368-1 | 60335-1; 62368-1 |
