Recom Power RAC01-05SGA
- Part No.:
- RAC01-05SGA
- Manufacturer:
- Recom Power
- Category:
- AC DC Converters
- Package:
- 4-DIP Module
- Datasheet:
-
RAC01-05SGA.pdf
- Description:
- AC/DC CONVERTER 5V 1W
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
RAC01-05SGA Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Recom Power
- Series:
- POWERLINE RAC01-GA (1W)
- Package/Case:
- 4-DIP Module
- Packaging:
- Tube
- Product Status:
- Active
- Type:
- Enclosed
- Number of Outputs:
- 1
- Voltage - Input:
- 100 ~ 240 VAC
- Voltage - Output 1:
- 5V
- Voltage - Output 2:
- -
- Voltage - Output 3:
- -
- Voltage - Output 4:
- -
- Current - Output (Max):
- 200mA
- Power (Watts):
- 1 W
- Applications:
- Household Appliances, ITE (Commercial)
- Features:
- -
- Operating Temperature:
- -25°C ~ 80°C (With Derating)
- Efficiency:
- 63%
- Mounting Type:
- Through Hole
- Size / Dimension:
- 1.33" L x 0.87" W x 0.75" H (33.7mm x 22.2mm x 19.0mm)
- Approval Agency:
- CE, cURus
- Standard Number:
- -
| Image |  |
|
 |
|
 |

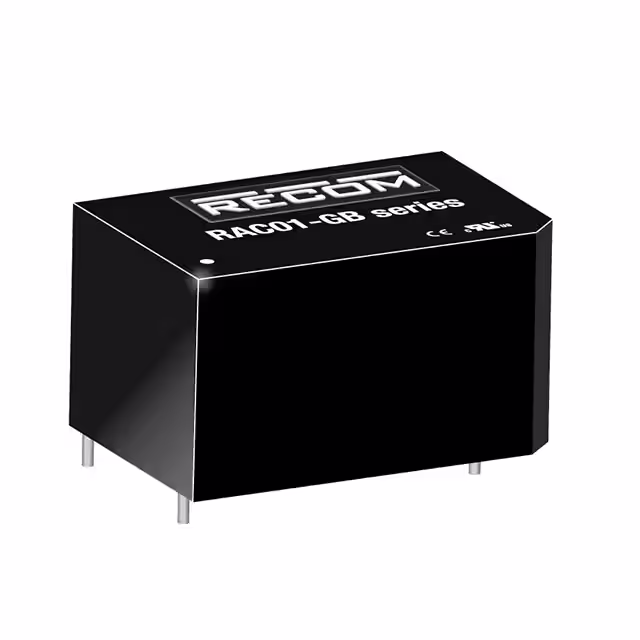

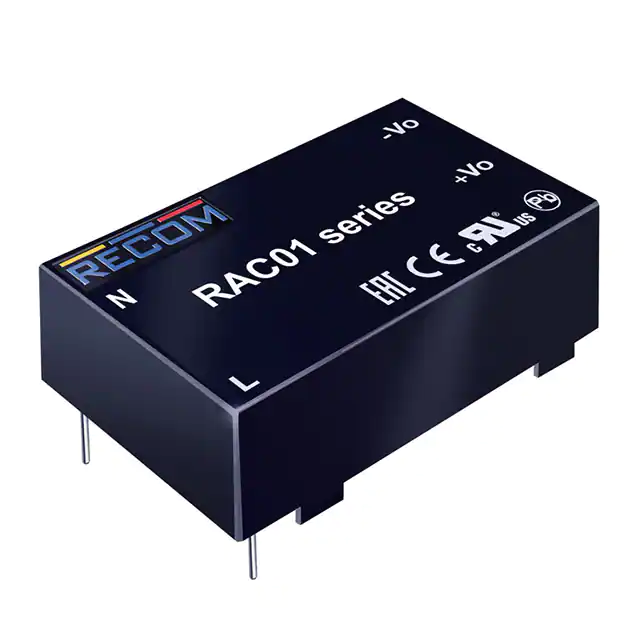

| Part Number | RAC01-05SGA | RAC01-12SGA | RAC01-12SGB | RAC01-05SGB | RAC01-3.3SC |
| Manufacturer | Recom Power | Recom Power | Recom Power | Recom Power | Recom Power |
| Series | POWERLINE RAC01-GA (1W) | POWERLINE RAC01-GA (1W) | POWERLINE RAC01-GB (1W) | POWERLINE RAC01-GB (1W) | POWERLINE RAC01-C (1W) |
| Package/Case | 4-DIP Module | 4-DIP Module | 4-DIP Module | 4-DIP Module | 4-DIP Module |
| Packaging | Tube | Tube | Tube | Tube | Tube |
| Product Status | Active | Active | Active | Active | Obsolete |
| Type | Enclosed | Enclosed | Enclosed | Enclosed | Enclosed |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input | 100 ~ 240 VAC | 100 ~ 240 VAC | 100 ~ 240 VAC | 100 ~ 240 VAC | 80 ~ 264 VAC |
| Voltage - Output 1 | 5V | 12V | 12V | 5V | 3.3V |
| Voltage - Output 2 | - | - | - | - | - |
| Voltage - Output 3 | - | - | - | - | - |
| Voltage - Output 4 | - | - | - | - | - |
| Current - Output (Max) | 200mA | 83mA | 83mA | 200mA | 300mA |
| Power (Watts) | 1 W | 1 W | 1 W | 1 W | 1 W |
| Applications | Household Appliances, ITE (Commercial) | Household Appliances, ITE (Commercial) | ITE (Commercial) | ITE (Commercial) | ITE (Commercial) |
| Features | - | - | Universal Input | Universal Input | SCP |
| Operating Temperature | -25°C ~ 80°C (With Derating) | -25°C ~ 80°C (With Derating) | -25°C ~ 70°C (With Derating) | -25°C ~ 70°C (With Derating) | -25°C ~ 85°C (With Derating) |
| Efficiency | 63% | 68% | 68% | 63% | 65% |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Size / Dimension | 1.33" L x 0.87" W x 0.75" H (33.7mm x 22.2mm x 19.0mm) | 1.33" L x 0.87" W x 0.75" H (33.7mm x 22.2mm x 19.0mm) | 1.33" L x 0.87" W x 0.75" H (33.7mm x 22.2mm x 19.0mm) | 1.33" L x 0.87" W x 0.75" H (33.7mm x 22.2mm x 19.0mm) | 1.33" L x 0.87" W x 0.71" H (33.7mm x 22.2mm x 18.0mm) |
| Approval Agency | CE, cURus | CE, cURus | CE, cURus, FCC | CE, cURus, FCC | CE, EN, UL |
| Standard Number | - | - | - | - | - |
