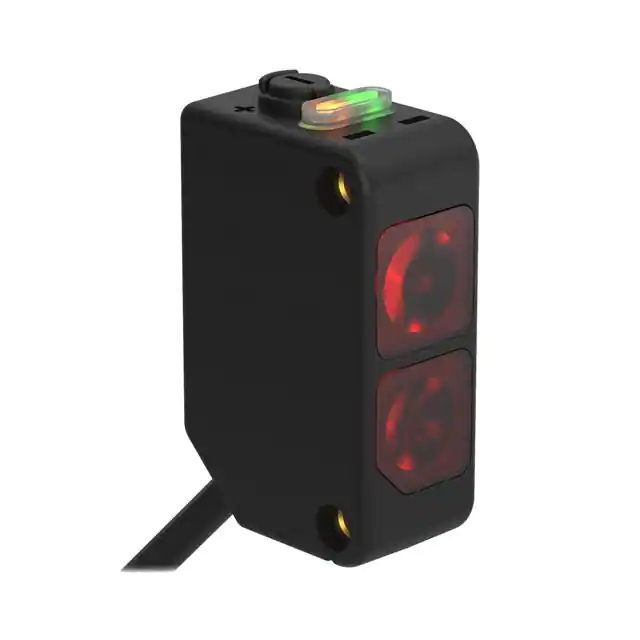

Banner Engineering Corporation Q20PDL
- Part No.:
- Q20PDL
- Manufacturer:
- Banner Engineering Corporation
- Category:
- Photoelectric, Industrial
- Package:
- Datasheet:
-
Q20PDL.pdf
- Description:
- PHOTO SEN DIFFUSED 800MM PNP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Q20PDL Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Banner Engineering Corporation
- Series:
- Q20
- Packaging:
- Bag
- Product Status:
- Active
- Sensing Method:
- Diffuse
- Sensing Distance:
- 31.496" (800mm)
- Voltage - Supply:
- 10V ~ 30V
- Response Time:
- 800µs
- Output Configuration:
- PNP - Dark-ON/Light-ON
- Light Source:
- Red (624nm)
- Connection Method:
- Cable
- Ingress Protection:
- NEMA 6P, IEC IP67
- Cable Length:
- 78.74" (2m)
- Adjustment Type:
- Adjustable, Potentiometer
- Operating Temperature:
- -20°C ~ 60°C
| Image |  |
|
 |
| Part Number | Q20PDL | Q20PDLQ5 | Q20PDLQPMA |
| Manufacturer | Banner Engineering Corporation | Banner Engineering Corporation | Banner Engineering Corporation |
| Series | Q20 | Q20 | Q20 |
| Packaging | Bag | Bag | Box |
| Product Status | Active | Active | Active |
| Sensing Method | Diffuse | Diffuse | Diffuse |
| Sensing Distance | 31.496" (800mm) | 31.496" (800mm) | 31.496" (800mm) |
| Voltage - Supply | 10V ~ 30V | 10V ~ 30V | 10V ~ 30V |
| Response Time | 800µs | 800µs | 800µs |
| Output Configuration | PNP - Dark-ON/Light-ON | PNP - Dark-ON/Light-ON | PNP - Dark-ON/Light-ON - Selectable |
| Light Source | Red (624nm) | Red (624nm) | Red (655nm) |
| Connection Method | Cable | Connector | Connector |
| Ingress Protection | NEMA 6P, IEC IP67 | NEMA 6P, IEC IP67 | NEMA 6P, IEC IP67 |
| Cable Length | 78.74" (2m) | - | - |
| Adjustment Type | Adjustable, Potentiometer | Adjustable, Potentiometer | Adjustable, Potentiometer |
| Operating Temperature | -20°C ~ 60°C | -20°C ~ 60°C | -20°C ~ 60°C |
