APEM Inc. Q12-7P1CXXHG02E
- Part No.:
- Q12-7P1CXXHG02E
- Manufacturer:
- APEM Inc.
- Category:
- Panel Indicators, Pilot Lights
- Package:
- Datasheet:
-
Q12-7P1CXXHG02E.pdf
- Description:
- LED INDICATOR 12.7MM PROMINENT H
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Q12-7P1CXXHG02E Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- APEM Inc.
- Series:
- Q12-7
- Packaging:
- Bulk
- Product Status:
- Active
- Type:
- LED
- Lamp Color:
- Green
- Lens Color:
- Green
- Lens Transparency:
- Diffused
- Ratings:
- Vf (Typ), If (Max)
- Voltage:
- 3.3V
- Current:
- 20mA
- Panel Cutout Shape:
- Round
- Panel Cutout Dimensions:
- 0.50" (12.70mm)
- Lens Size:
- 8.00mm Dia
- Lens Style:
- Round with Domed Top
- Millicandela Rating:
- 1560mcd
- Wavelength - Peak:
- -
- Viewing Angle:
- -
- Termination Style:
- Solder Lug
- Ingress Protection:
- IP67
- Features:
- -
| Image |  |
 |
 |
 |
 |

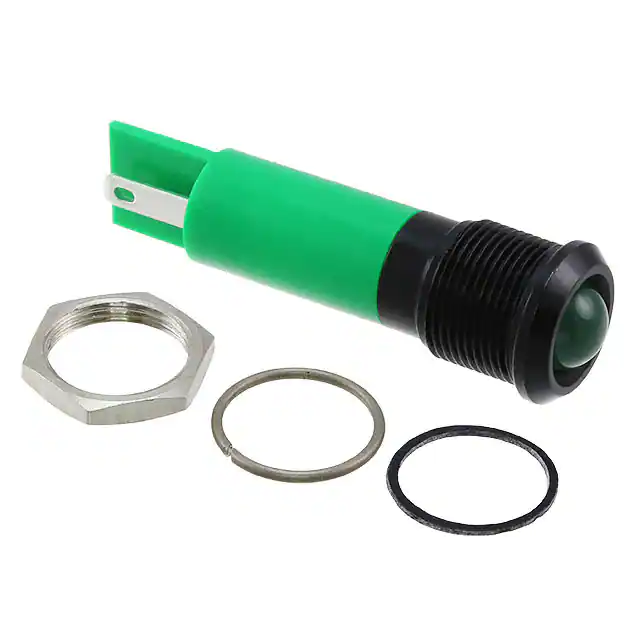

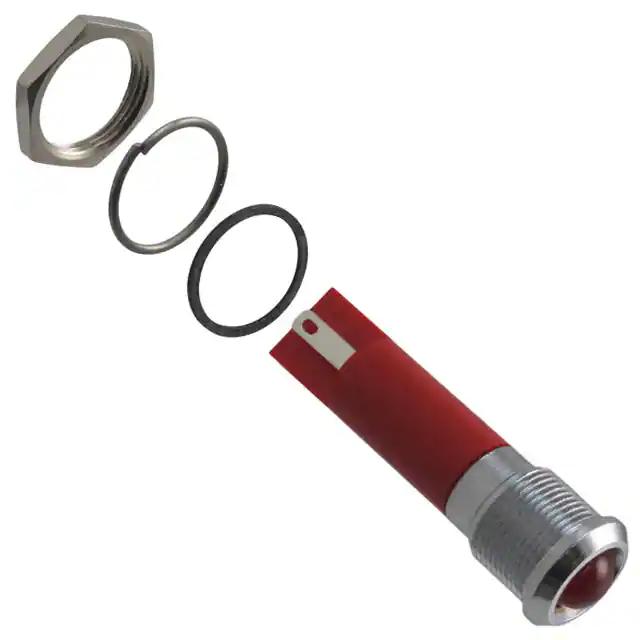

| Part Number | Q12P1BXXB12E | Q12-7P1CXXHG02E | Q12P1BXXG24E | Q12P1CXXR12E | Q12P1BXXG12E |
| Manufacturer | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. |
| Series | Q12 | Q12-7 | Q12 | Q12 | Q12 |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Type | LED | LED | LED | LED | LED |
| Lamp Color | Blue | Green | Green | Red | Green |
| Lens Color | Blue | Green | Green | Red | Green |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused | Diffused |
| Ratings | DC | Vf (Typ), If (Max) | DC | DC | DC |
| Voltage | 12V | 3.3V | 24V | 12V | 12V |
| Current | 20mA | 20mA | 20mA | 20mA | 20mA |
| Panel Cutout Shape | Round | Round | Round | Round | Round |
| Panel Cutout Dimensions | 0.47" (11.94mm) | 0.50" (12.70mm) | 0.47" (11.94mm) | 0.47" (11.94mm) | 0.47" (11.94mm) |
| Lens Size | 8.00mm Dia | 8.00mm Dia | 8.00mm Dia | 8.00mm Dia | 8.00mm Dia |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Millicandela Rating | 800mcd | 1560mcd | 60mcd | 350mcd | 60mcd |
| Wavelength - Peak | - | - | - | - | - |
| Viewing Angle | 60° | - | 60° | 60° | 60° |
| Termination Style | Quick Connect - 0.110" (2.8mm) | Solder Lug | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) |
| Ingress Protection | IP67 | IP67 | IP67 | IP67 | IP67 |
| Features | - | - | - | - | - |
