Eaton - Bussmann Electrical Division PV-1A10F
- Part No.:
- PV-1A10F
- Manufacturer:
- Eaton - Bussmann Electrical Division
- Category:
- Electrical, Specialty Fuses
- Package:
- 5AG, 10mm x 38mm (Midget)
- Datasheet:
-
PV-1A10F.pdf
- Description:
- FUSE CARTRIDGE 1A 1KVDC 5AG
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PV-1A10F Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Eaton - Bussmann Electrical Division
- Series:
- PV
- Package / Case:
- 5AG, 10mm x 38mm (Midget)
- Packaging:
- Bulk
- Product Status:
- Active
- Mounting Type:
- Requires Holder
- Fuse Type:
- Cartridge
- Current Rating (Amps):
- 1A
- Voltage Rating - AC:
- -
- Voltage Rating - DC:
- 1 kVDC
- Response Time:
- -
- Applications:
- Solar (Photovoltaic)
- Features:
- -
- Class:
- -
- Approval Agency:
- CCC, CSA, UL
- Operating Temperature:
- -40°C ~ 90°C
- Breaking Capacity @ Rated Voltage:
- 50kA
- Size / Dimension:
- 0.406" Dia x 1.496" L (10.30mm x 38.00mm)
- Grade:
- -
- Qualification:
- -
| Image |  |
 |
 |
 |
 |

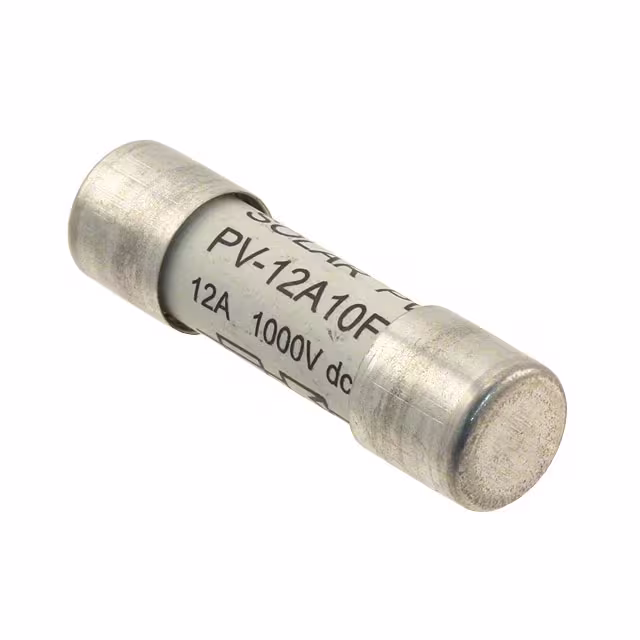

| Part Number | PV-15A10F | PV-1A10F | PV-2A10F | PV-12A10F | PV-8A10-T |
| Manufacturer | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division |
| Series | PV | PV | PV | PV | PV |
| Package / Case | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | Cylindrical, Blade Terminal (Bolt) |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Requires Holder | Requires Holder | Requires Holder | Requires Holder | Bolt Mount |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 15A | 1A | 2A | 12A | 8A |
| Voltage Rating - AC | - | - | - | - | - |
| Voltage Rating - DC | 1 kVDC | 1 kVDC | 1 kVDC | 1 kVDC | 1 kVDC |
| Response Time | - | - | - | - | - |
| Applications | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) |
| Features | - | - | - | - | - |
| Class | - | - | - | - | - |
| Approval Agency | CCC, CSA, UL | CCC, CSA, UL | CCC, CSA, UL | CCC, CSA, UL | CCC, CSA, UL |
| Operating Temperature | -40°C ~ 90°C | -40°C ~ 90°C | -40°C ~ 90°C | -40°C ~ 90°C | -40°C ~ 90°C |
| Breaking Capacity @ Rated Voltage | 50kA | 50kA | 50kA | 50kA | 50kA |
| Size / Dimension | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | 0.406" Dia x 2.319" L (10.30mm x 58.90mm) |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
