CUI Inc. PSK-15B-S12
- Part No.:
- PSK-15B-S12
- Manufacturer:
- CUI Inc.
- Category:
- AC DC Converters
- Package:
- 4-DIP Module
- Datasheet:
-
PSK-15B-S12.pdf
- Description:
- AC/DC CONVERTER 12V 15W
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PSK-15B-S12 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- CUI Inc.
- Series:
- PSK-15B (15W)
- Package/Case:
- 4-DIP Module
- Packaging:
- Tube
- Product Status:
- Active
- Type:
- Enclosed
- Number of Outputs:
- 1
- Voltage - Input:
- 85 ~ 264 VAC, 120 ~ 370 VDC
- Voltage - Output 1:
- 12V
- Voltage - Output 2:
- -
- Voltage - Output 3:
- -
- Voltage - Output 4:
- -
- Current - Output (Max):
- 1.25A
- Power (Watts):
- 15 W
- Applications:
- ITE (Commercial)
- Features:
- Universal Input
- Operating Temperature:
- -25°C ~ 70°C (With Derating)
- Efficiency:
- 84.5%
- Mounting Type:
- Through Hole
- Size / Dimension:
- 2.44" L x 1.77" W x 0.91" H (62.0mm x 45.0mm x 23.1mm)
- Approval Agency:
- CB Scheme, EN, FCC, IEC, UL
- Standard Number:
- 60950-1; 61000-3-2; 61000-3-3; 62368-1
| Image |  |
 |
|
 |
|

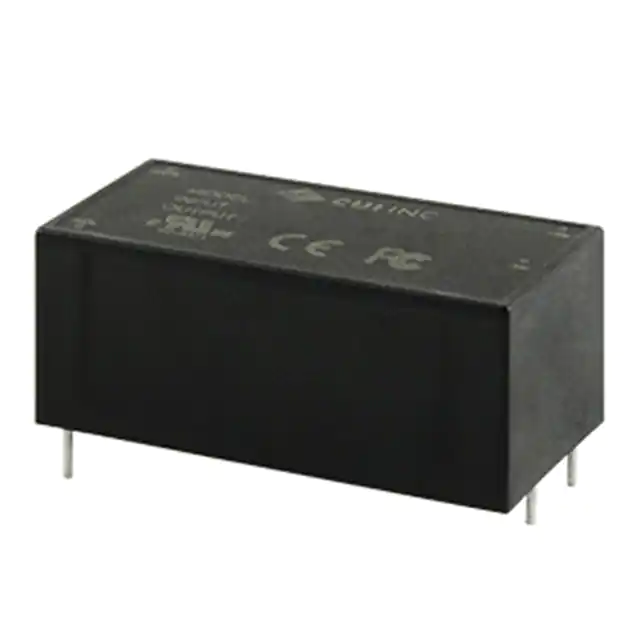

| Part Number | PSK-15B-S12 | PSK-6B-S5 | PSK-6B-S12 | PSK-10B-S12 | PSK-15B-S48 |
| Manufacturer | CUI Inc. | CUI Inc. | CUI Inc. | CUI Inc. | CUI Inc. |
| Series | PSK-15B (15W) | PSK-6B (6W) | PSK-6B (6W) | PSK-10B (10W) | PSK-15B (15W) |
| Package/Case | 4-DIP Module | 4-DIP Module | 4-DIP Module | 4-DIP Module | 4-DIP Module |
| Packaging | Tube | Tube | Tube | Bulk | Tube |
| Product Status | Active | Active | Active | Active | Active |
| Type | Enclosed | Enclosed | Enclosed | Enclosed | Enclosed |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input | 85 ~ 264 VAC, 120 ~ 370 VDC | 85 ~ 264 VAC, 120 ~ 370 VDC | 85 ~ 264 VAC, 120 ~ 370 VDC | 85 ~ 264 VAC, 120 ~ 370 VDC | 85 ~ 264 VAC |
| Voltage - Output 1 | 12V | 5V | 12V | 12V | 48V |
| Voltage - Output 2 | - | - | - | - | - |
| Voltage - Output 3 | - | - | - | - | - |
| Voltage - Output 4 | - | - | - | - | - |
| Current - Output (Max) | 1.25A | 1.2A | 500mA | 850mA | 320mA |
| Power (Watts) | 15 W | 6 W | 6 W | 10 W | 15 W |
| Applications | ITE (Commercial) | ITE (Commercial) | ITE (Commercial) | ITE (Commercial) | ITE (Commercial) |
| Features | Universal Input | Universal Input | Universal Input | Universal Input | Universal Input |
| Operating Temperature | -25°C ~ 70°C (With Derating) | -25°C ~ 70°C (With Derating) | -25°C ~ 70°C (With Derating) | -25°C ~ 70°C (With Derating) | -25°C ~ 70°C (With Derating) |
| Efficiency | 84.5% | 75.18% | 79.03% | 82.32% | 84.63% |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Size / Dimension | 2.44" L x 1.77" W x 0.91" H (62.0mm x 45.0mm x 23.1mm) | 2.00" L x 1.00" W x 0.66" H (50.8mm x 25.4mm x 16.7mm) | 2.00" L x 1.00" W x 0.66" H (50.8mm x 25.4mm x 16.7mm) | 2.00" L x 1.00" W x 0.81" H (50.8mm x 25.4mm x 20.6mm) | 2.44" L x 1.77" W x 0.91" H (62.0mm x 45.0mm x 23.1mm) |
| Approval Agency | CB Scheme, EN, FCC, IEC, UL | CB Scheme, EN, FCC, IEC, UL | CB Scheme, EN, FCC, IEC, UL | CB Scheme, EN, FCC, IEC, UL | CB Scheme, EN, FCC, IEC, UL |
| Standard Number | 60950-1; 61000-3-2; 61000-3-3; 62368-1 | 60950-1; 61000-3-2; 61000-3-3; 62368-1 | 60950-1; 61000-3-2; 61000-3-3; 62368-1 | 60950-1; 61000-3-2; 61000-3-3; 62368-1 | 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
