TE Connectivity Aerospace, Defense and Marine PRMAC-12X
- Part No.:
- PRMAC-12X
- Manufacturer:
- TE Connectivity Aerospace, Defense and Marine
- Category:
- Signal Relays, Up to 2 Amps
- Package:
- Datasheet:
-
PRMAC-12X.pdf
- Description:
- RELAY GEN PURPOSE DPDT 1A 12V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PRMAC-12X Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TE Connectivity Aerospace, Defense and Marine
- Series:
- PRMA, CII
- Packaging:
- Bulk
- Product Status:
- Active
- Mounting Type:
- Through Hole
- Coil Voltage:
- 12VDC
- Contact Form:
- DPDT (2 Form C)
- Contact Rating (Current):
- 1 A
- Switching Voltage:
- 28VDC - Nom
- Load - Max Switching:
- -
- Coil Current:
- 30.7 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- PC Pin
- Seal Rating:
- Sealed - Hermetically
- Coil Insulation:
- -
- Must Operate Voltage:
- 7 VDC
- Must Release Voltage:
- 0.63 VDC
- Operate Time:
- 2 ms
- Release Time:
- 1.5 ms
- Operating Temperature:
- -65°C ~ 125°C
- Contact Material:
- -
- Relay Type:
- General Purpose
- Grade:
- -
- Qualification:
- -

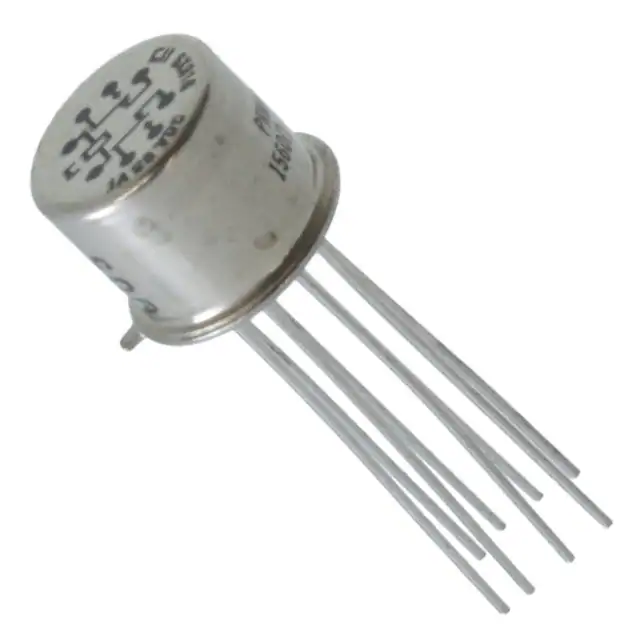

| Image |  |
 |
 |
|
|
| Part Number | PRMAC-12X | PRMAC-26Y | PRMAC-26X | PRMAC-18Y | PRMAC-26XS |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine |
| Series | PRMA, CII | PRMAC | PRMA, CII | PRMAC | PRMAC |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Discontinued at Digi-Key | Active | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Coil Voltage | 12VDC | 26.5VDC | 26.5VDC | 18VDC | 26.5VDC |
| Contact Form | DPDT (2 Form C) | DPDT (2 Form C) | DPDT (2 Form C) | DPDT (2 Form C) | DPDT (2 Form C) |
| Contact Rating (Current) | 1 A | 1 A | 1 A | 1 A | 1 A |
| Switching Voltage | 28VDC - Nom | 115VAC, 28VDC - Max | 28VDC - Nom | 115VAC, 28VDC - Max | 115VAC, 28VDC - Max |
| Load - Max Switching | - | 115VA, 28W | - | 115VA, 28W | 115VA, 28W |
| Coil Current | 30.7 mA | 17 mA | 17 mA | 20.5 mA | 17 mA |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching | Non Latching |
| Features | - | - | - | - | - |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Seal Rating | Sealed - Hermetically | Sealed - Hermetically | Sealed - Hermetically | Sealed - Hermetically | Sealed - Hermetically |
| Coil Insulation | - | - | - | - | - |
| Must Operate Voltage | 7 VDC | 14.2 VDC | 14.2 VDC | 10.5 VDC | 14.2 VDC |
| Must Release Voltage | 0.63 VDC | 1.37 VDC | 1.37 VDC | 0.93 VDC | 1.37 VDC |
| Operate Time | 2 ms | 2 ms | 2 ms | 2 ms | 2 ms |
| Release Time | 1.5 ms | 1.5 ms | 1.5 ms | 1.5 ms | 1.5 ms |
| Operating Temperature | -65°C ~ 125°C | -65°C ~ 125°C | -65°C ~ 125°C | -65°C ~ 125°C | -65°C ~ 125°C |
| Contact Material | - | Silver Palladium (AgPd), Gold (Au) | - | Silver Palladium (AgPd), Gold (Au) | Silver Palladium (AgPd), Gold (Au) |
| Relay Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
