ITG Electronics, Inc. PQ108081-220MHF
- Part No.:
- PQ108081-220MHF
- Manufacturer:
- ITG Electronics, Inc.
- Category:
- Fixed Inductors
- Package:
- Nonstandard, 3 Lead
- Description:
- FIXED IND 24UH 19A 6.2 MOHM SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PQ108081-220MHF Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- ITG Electronics, Inc.
- Series:
- PQ108081
- Package/Case:
- Nonstandard, 3 Lead
- Packaging:
- Tray
- Product Status:
- Active
- Type:
- -
- Material - Core:
- Ferrite
- Inductance:
- 24 µH
- Tolerance:
- ±20%
- Current Rating (Amps):
- 19 A
- Current - Saturation (Isat):
- -
- Shielding:
- Shielded
- DC Resistance (DCR):
- 6.2mOhm
- Q @ Freq:
- -
- Frequency - Self Resonant:
- -
- Ratings:
- -
- Operating Temperature:
- -55°C ~ 130°C
- Inductance Frequency - Test:
- 300 kHz
- Features:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 3-SMD
- Size / Dimension:
- 1.098" L x 1.098" W (27.94mm x 27.94mm)
- Height - Seated (Max):
- 0.787" (20.00mm)

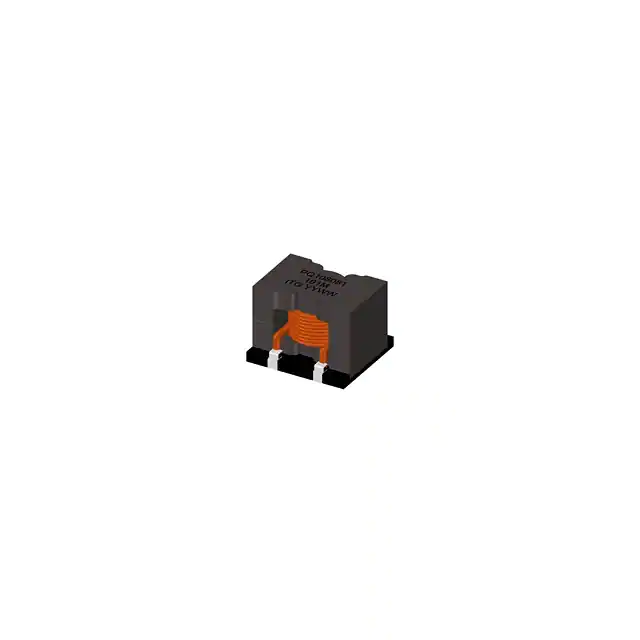

| Image |  |
 |
|
|
 |
| Part Number | PQ108081H-101MHF | PQ108081-680MHF | PQ108081-150MHF | PQ108081-3R3MHF | PQ108081-471MHF |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| Series | PQ108081H | PQ108081 | PQ108081 | PQ108081 | PQ108081 |
| Package/Case | 3-SMD | Nonstandard, 3 Lead | Nonstandard, 3 Lead | Nonstandard, 3 Lead | Nonstandard |
| Packaging | Tape & Reel (TR) | Tray | Tray | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | - | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 100 µH | 68 µH | 15 µH | 3.3 µH | 470 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 10.5 A | 12 A | 25.5 A | 31 A | 4.5 A |
| Current - Saturation (Isat) | 10.1A | - | - | - | 4.5A |
| Shielding | - | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 100mOhm | 15mOhm | 3.5mOhm | 2.5mOhm | 76.5mOhm |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 130°C | -55°C ~ 130°C | -55°C ~ 130°C | -55°C ~ 130°C | -55°C ~ 130°C |
| Inductance Frequency - Test | 300 kHz | 300 kHz | 300 kHz | 300 kHz | 300 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 3-SMD | 3-SMD | 3-SMD | 3-SMD | - |
| Size / Dimension | 1.100" L x 1.100" W (27.94mm x 27.94mm) | 1.098" L x 1.098" W (27.94mm x 27.94mm) | 1.098" L x 1.098" W (27.94mm x 27.94mm) | 1.098" L x 1.098" W (27.94mm x 27.94mm) | 1.100" L x 1.100" W (27.94mm x 27.94mm) |
| Height - Seated (Max) | 0.787" (20.00mm) | 0.787" (20.00mm) | 0.787" (20.00mm) | 0.787" (20.00mm) | 0.787" (20.00mm) |
