Panasonic Industrial Automation Sales PM-F65W
- Part No.:
- PM-F65W
- Manufacturer:
- Panasonic Industrial Automation Sales
- Package:
- Module, Connector
- Description:
- SENSOR OPTICAL 6MM MOD SLOT TYPE
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
PM-F65W - Ultra-Slim Photoelectric Sensor (U-Shaped, Through-Beam Type)
PM-F65W is a compact ultra-slim photoelectric sensor from Panasonic, designed for precision object detection in compact automation systems and electronic equipment. The sensor integrates emitter and receiver elements in a miniature U-shaped housing, providing reliable through-beam detection with fast response characteristics.
This page provides engineering-level product overview and application reference information. Always verify final specifications and installation requirements using the official Panasonic datasheet.
Overview
PM-F65W belongs to Panasonic's ultra-miniature PM-F series photoelectric sensors, optimized for high-speed and high-precision detection in space-constrained industrial environments. The compact body structure enables flexible installation in PCB handling equipment, packaging machinery, semiconductor systems, and compact automation devices.
The integrated through-beam optical structure improves detection reliability while minimizing external alignment complexity. Its slim profile is especially suitable for narrow installation spaces where conventional sensors cannot be mounted efficiently.
Key Advantages
Slim housing design allows installation in extremely limited spaces.
Through-beam sensing architecture improves detection accuracy and stability.
Suitable for high-speed automation and positioning applications.
Simple electrical connection and compact form factor simplify equipment design.
Feature Summary
Photoelectric through-beam sensor.
Compact U-shaped slot design.
Object detection by optical beam interruption.
Compact industrial automation and positioning systems.
Mechanical Structure & Mounting
The PM-F65W uses a miniature molded sensor housing with integrated optical emitter and receiver. The compact slot structure allows easy installation in automated equipment and detection mechanisms.
- Maintain correct alignment with moving objects.
- Avoid direct strong ambient light exposure.
- Ensure stable mounting to reduce vibration influence.
- Keep optical surfaces clean for reliable sensing.

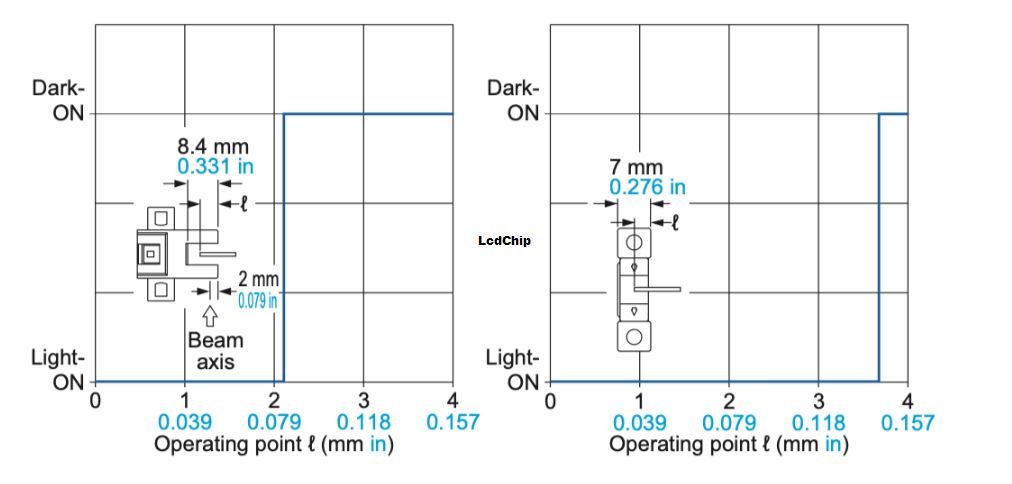

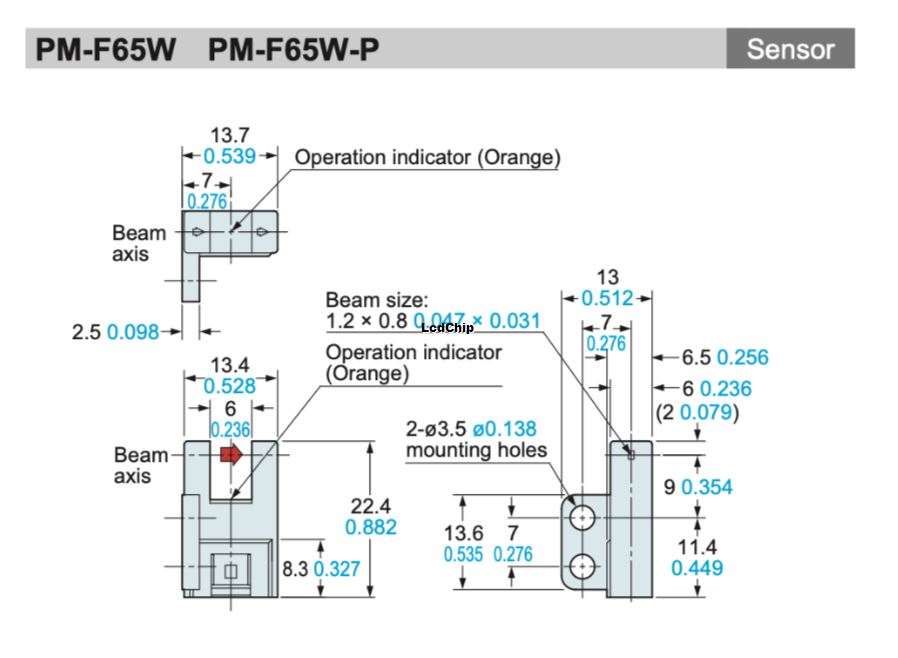

Use the official Panasonic mechanical drawing for exact installation dimensions and tolerances.
Connection Functions
The sensor includes power and output signal connections for industrial control integration.
Key Specifications
| Device Type | Photoelectric Sensor |
|---|---|
| Detection Method | Through-Beam |
| Housing Style | U-Shaped Slot Sensor |
| Mounting Type | Panel / Equipment Mount |
| Output Type | Digital Switching Output |
| Series | PM-F Series |
| Manufacturer | Panasonic |
| Application Category | Industrial Automation Sensor |
Equivalent
Comparable compact photoelectric sensors include:
Verify slot width, sensing distance, output type, and mounting dimensions before replacement.
Manufacturer Information
Panasonic is a globally recognized electronics manufacturer providing industrial automation, sensor, passive component, and embedded electronic solutions across multiple industries.
- Core expertise: Sensors, industrial automation, electronic components
- Target industries: Factory automation, automotive, industrial control
- Support resources: Datasheets, reliability data, application engineering support
Applications
The PM-F65W is widely used in compact industrial sensing and positioning systems:
Factory Automation
Object positioning and motion detection in automated machinery.
Semiconductor Equipment
Compact sensing for wafer handling and precision mechanisms.
Packaging Systems
Reliable material presence and movement detection.
Embedded Devices
Miniature optical sensing for compact electronic equipment.
Quality & Authenticity
- Industrial-grade manufacturing and quality control
- Traceable sourcing and component verification
- ESD-safe handling and packaging procedures
FAQ
What type of sensor is PM-F65W?
Where is this sensor commonly used?
What affects sensing reliability?
Disclaimer
PM-F65W Information
- Specifications
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Panasonic Industrial Automation Sales
- Series:
- PM-65
- Package/Case:
- Module, Connector
- Packaging:
- Bulk
- Product Status:
- Active
- Sensing Distance:
- 0.236" (6mm)
- Sensing Method:
- Through-Beam
- Output Configuration:
- NPN - Open Collector
- Mounting Type:
- Chassis Mount
- Current - Supply:
- 15 mA
- Voltage - Supply:
- 5V ~ 24V
- Response Time:
- 20µs
- Operating Temperature:
- -25°C ~ 55°C
