Microchip Technology PIC16F1934-I/PT
- Part No.:
- PIC16F1934-I/PT
- Manufacturer:
- Microchip Technology
- Category:
- Microcontrollers
- Package:
- 44-TQFP
- Description:
- IC MCU 8BIT 7KB FLASH 44TQFP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
PIC16F1934-I/PT - 8-bit PIC Microcontroller with Enhanced Mid-Range Core (TQFP-44)
PIC16F1934-I/PT is an 8-bit microcontroller from Microchip Technology, featuring the enhanced mid-range PIC® architecture. It integrates Flash program memory, analog peripherals, and low-power operation modes, making it suitable for cost-sensitive embedded control applications.
This page is written for product identification and engineering selection guidance. Always verify final limits using the manufacturer's latest datasheet revision for design sign-off.
Overview
PIC16F1934-I/PT is part of Microchip's enhanced mid-range 8-bit MCU family, offering improved performance, flexible peripherals, and efficient code execution compared to legacy PIC16 devices.
It includes integrated modules such as ADC, timers, comparators, PWM, and communication interfaces, enabling designers to build complete embedded systems with minimal external components. Its low-power modes support energy-efficient designs in portables and always-on systems.
Key Advantages
ADC, PWM, timers, and communication modules reduce external component count.
Supports sleep and low-power modes for energy-efficient designs.
Multiple GPIO pins configurable for digital and analog functions.
Ideal for general-purpose embedded control and consumer applications.
Feature Summary
Up to 7KB Flash for application code storage.
Typically operates from 2.3V to 5.5V.
Includes ADC and comparators for mixed-signal applications.
Supports USART, SPI, and I²C communication.
Package & Footprint
The PIC16F1934-I/PT is supplied in a TQFP-44 surface-mount package, suitable for compact embedded designs requiring moderate I/O count.

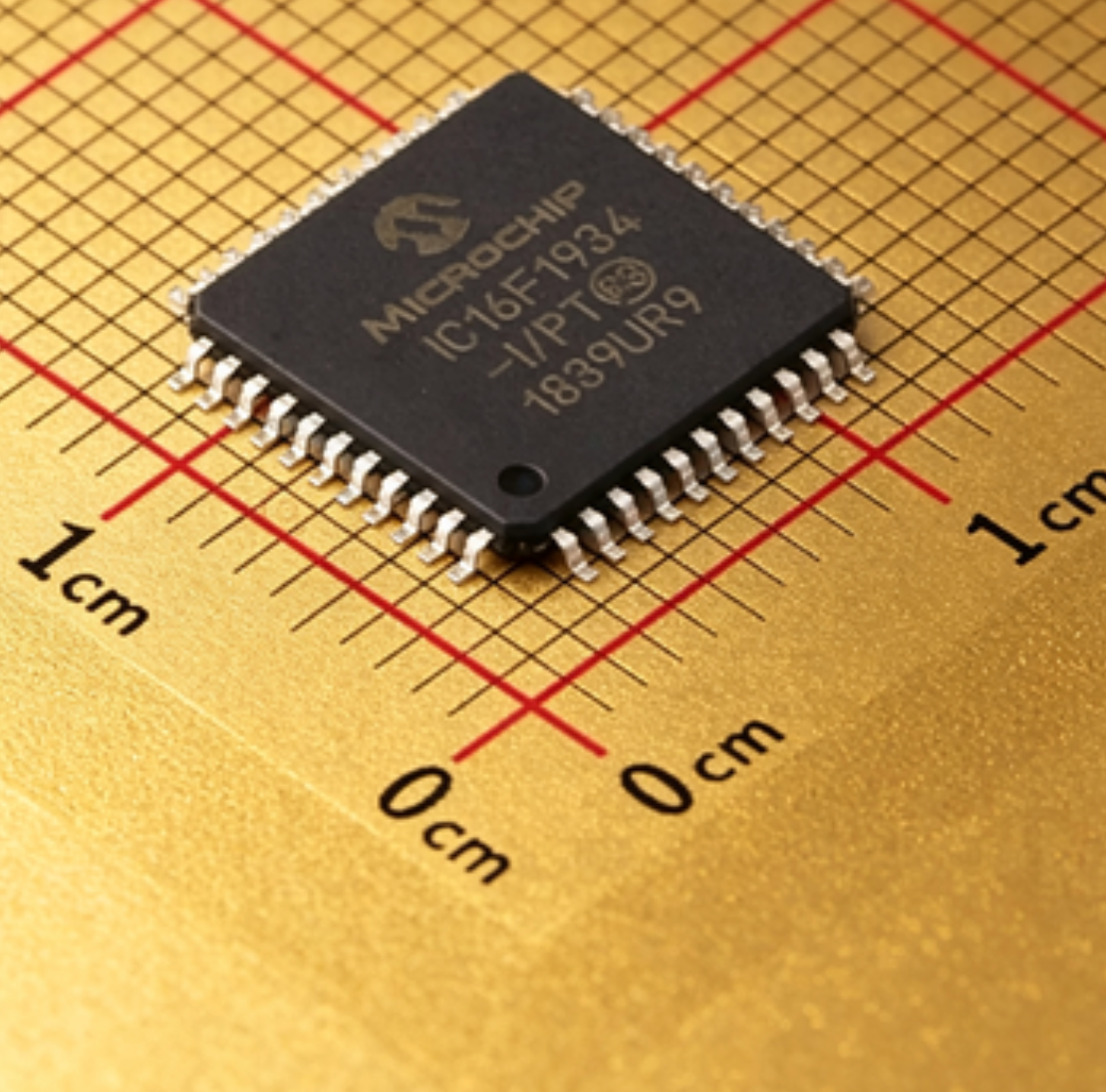

(replace with actual package image)
- Follow recommended PCB land pattern for reliable soldering.
- Place decoupling capacitors close to VDD pins.
- Ensure proper grounding for analog performance.
Pin Functions
The PIC16F1934-I/PT includes power, I/O, and peripheral pins distributed across the package.
(replace with official pinout)
Key Specifications
| Core | 8-bit PIC |
|---|---|
| Program Memory | 7KB Flash |
| Operating Voltage | 2.3V – 5.5V |
| I/O Pins | Up to 36 |
| ADC | 10-bit ADC |
| Interfaces | USART, SPI, I²C |
| Package | TQFP-44 |
| Operating Temperature | -40°C to +85°C (Industrial) |
| Series | PIC16F19xx |
Equivalent
Common alternatives to PIC16F1934-I/PT include:
Engineering note: Verify pin compatibility, memory size, and peripheral differences before substitution.
Manufacturer Information
Microchip Technology is a leading supplier of microcontrollers and analog semiconductors, widely recognized for its PIC® MCU family used across industrial, automotive, and consumer applications.
- Core strengths: Microcontrollers, analog ICs, embedded solutions
- Markets: Industrial, automotive, consumer electronics
- Resources: MPLAB IDE, development tools, application notes
Applications
The PIC16F1934-I/PT is widely used in embedded control systems:
Industrial Control
Control logic and sensor interfacing.
Consumer Electronics
Embedded control in appliances and devices.
Automation Systems
Low-cost microcontroller-based automation.
IoT Devices
Edge control and sensor data acquisition.
Quality & Authenticity
- Incoming inspection: visual and functional verification
- Traceability: manufacturer batch tracking
- Anti-counterfeit: sourcing from authorized channels recommended
FAQ
Is PIC16F1934-I/PT pin-compatible with other PIC16F19xx devices?
What development tools are supported?
Can it run on battery-powered systems?
Disclaimer
PIC16F1934-I/PT Information
- Specifications
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Microchip Technology
- Package/Case:
- 44-TQFP
- Series:
- PIC® XLP™ 16F
- Packaging:
- Tray
- Product Status:
- Active
- Programmable:
- Verified
- Core Processor:
- PIC
- Core Size:
- 8-Bit
- Speed:
- 32MHz
- Connectivity:
- I2C, LINbus, SPI, UART/USART
- Peripherals:
- Brown-out Detect/Reset, LCD, POR, PWM, WDT
- Number of I/O:
- 36
- Program Memory Size:
- 7KB (4K x 14)
- Program Memory Type:
- FLASH
- EEPROM Size:
- 256 x 8
- RAM Size:
- 256 x 8
- Voltage - Supply (Vcc/Vdd):
- 1.8V ~ 5.5V
- Data Converters:
- A/D 14x10b
- Oscillator Type:
- Internal
- Operating Temperature:
- -40°C ~ 85°C (TA)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- Include Parts
