Diodes Incorporated PI6C557-03BLEX
- Part No.:
- PI6C557-03BLEX
- Manufacturer:
- Diodes Incorporated
- Category:
- Application Specific Clock/Timing
- Package:
- 16-TSSOP (0.173", 4.40mm Width)
- Datasheet:
-
PI6C557-03BLEX.pdf
- Description:
- IC CLOCK GENERATOR 16TSSOP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PI6C557-03BLEX Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Diodes Incorporated
- Series:
- -
- Package/Case:
- 16-TSSOP (0.173", 4.40mm Width)
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Programmable:
- Not Verified
- PLL:
- Yes
- Main Purpose:
- Ethernet, PCI Express (PCIe)
- Input:
- HCSL, Crystal
- Output:
- HCSL, LVDS
- Number of Circuits:
- 1
- Ratio - Input:Output:
- 1:2
- Differential - Input:Output:
- No/Yes
- Frequency - Max:
- 200MHz
- Voltage - Supply:
- 3V ~ 3.6V
- Operating Temperature:
- -40°C ~ 85°C
- Mounting Type:
- Surface Mount
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- 16-TSSOP
| Image |  |
 |
|
 |
|
| Part Number | PI6C557-03BLEX | PI6C557-05LEX | PI6C557-03LEX | PI6C557-01BZHIEX | PI6C557-05BLEX |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Series | - | - | - | - | - |

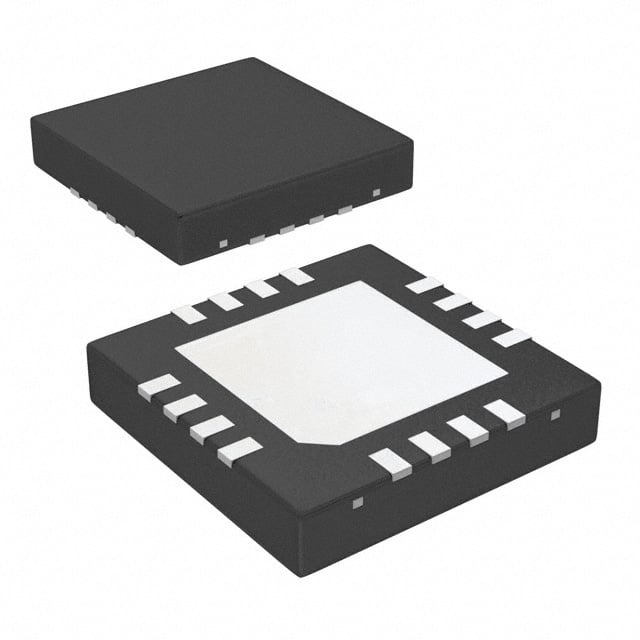

| Package/Case | 16-TSSOP (0.173", 4.40mm Width) | 20-TSSOP (0.173", 4.40mm Width) | 16-TSSOP (0.173", 4.40mm Width) | 16-WFQFN Exposed Pad | 20-TSSOP (0.173", 4.40mm Width) |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified | Not Verified |
| PLL | Yes | Yes | Yes | Yes | Yes |
| Main Purpose | Ethernet, PCI Express (PCIe) | Ethernet, PCI Express (PCIe) | Ethernet, PCI Express (PCIe) | Ethernet, PCI Express (PCIe) | Ethernet, PCI Express (PCIe) |
| Input | HCSL, Crystal | HCSL, Crystal | CMOS, Crystal | LVCMOS, LVTTL, Crystal | HCSL, Crystal |
| Output | HCSL, LVDS | HCSL, LVDS | HSTL, LVDS | HCSL, LVDS | HCSL, LVDS |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 1:2 | 1:4 | 1:2 | 1:1 | 1:4 |
| Differential - Input:Output | No/Yes | No/Yes | No/Yes | No/Yes | No/Yes |
| Frequency - Max | 200MHz | 200MHz | 200MHz | 100MHz | 200MHz |
| Voltage - Supply | 3V ~ 3.6V | 3.135V ~ 3.465V | 3V ~ 3.6V | 3V ~ 3.6V | 3.135V ~ 3.465V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Supplier Device Package | 16-TSSOP | 20-TSSOP | 16-TSSOP | 16-TQFN (3x3) | 20-TSSOP |
