Bourns Inc. PF-FB1-75
- Part No.:
- PF-FB1-75
- Manufacturer:
- Bourns Inc.
- Category:
- Electrical, Specialty Fuses
- Package:
- Cylindrical, Blade Terminal (Bolt)
- Datasheet:
-
PF-FB1-75.pdf
- Description:
- FUSE BOLT MNT 800VAC 800VDC 75A
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PF-FB1-75 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Bourns Inc.
- Series:
- POWrFuse™ PF-F
- Package / Case:
- Cylindrical, Blade Terminal (Bolt)
- Packaging:
- Box
- Product Status:
- Active
- Mounting Type:
- Bolt Mount
- Fuse Type:
- Cartridge
- Current Rating (Amps):
- 75A
- Voltage Rating - AC:
- 800 VAC
- Voltage Rating - DC:
- 800 VDC
- Response Time:
- -
- Applications:
- Semiconductors
- Features:
- -
- Class:
- aR
- Approval Agency:
- cURus
- Operating Temperature:
- -55°C ~ 125°C
- Breaking Capacity @ Rated Voltage:
- 100kA AC, 50kA DC
- Size / Dimension:
- 0.949" Dia x 2.717" L (24.10mm x 69.00mm)
- Grade:
- -
- Qualification:
- -
| Image |  |
|
|
|
 |

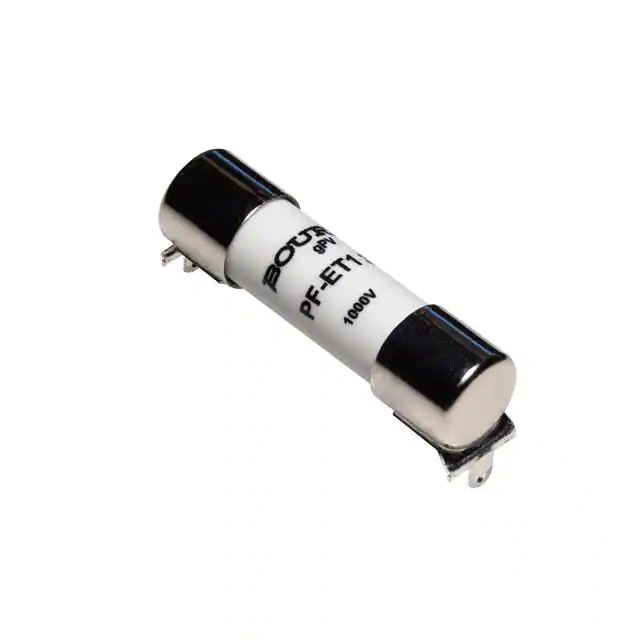

| Part Number | PF-FB1-75 | PF-FB1-50 | PF-FB1-100 | PF-FB1-300 | PF-ET1-15 |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Series | POWrFuse™ PF-F | POWrFuse™ PF-F | POWrFuse™ PF-F | POWrFuse™ PF-F | POWrFuse™ PF-E |
| Package / Case | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Radial Bend Cylinder |
| Packaging | Box | Box | Box | Box | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount | Through Hole |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge, Ceramic |
| Current Rating (Amps) | 75A | 50A | 100A | 300A | 15A |
| Voltage Rating - AC | 800 VAC | 800 VAC | 800 VAC | 800 VAC | - |
| Voltage Rating - DC | 800 VDC | 800 VDC | 800 VDC | 800 VDC | 1 kVDC |
| Response Time | - | - | - | - | - |
| Applications | Semiconductors | Semiconductors | Semiconductors | Semiconductors | Solar (Photovoltaic) |
| Features | - | - | - | - | - |
| Class | aR | aR | aR | aR | - |
| Approval Agency | cURus | cURus | cURus | cURus | cULus, UL |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Breaking Capacity @ Rated Voltage | 100kA AC, 50kA DC | 100kA AC, 50kA DC | 100kA AC, 50kA DC | 100kA AC, 50kA DC | 20kA |
| Size / Dimension | 0.949" Dia x 2.717" L (24.10mm x 69.00mm) | 0.949" Dia x 2.717" L (24.10mm x 69.00mm) | 0.949" Dia x 2.717" L (24.10mm x 69.00mm) | 1.386" Dia x 2.724" L (35.20mm x 69.20mm) | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
