Pasternack PEWAN028-10OMT
- Part No.:
- PEWAN028-10OMT
- Manufacturer:
- Pasternack
- Category:
- RF Antennas
- Package:
- Datasheet:
-
PEWAN028-10OMT.pdf
- Description:
- WR-28 Waveguide Dual Polarized H
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PEWAN028-10OMT Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Pasternack
- Series:
- -
- Packaging:
- Retail Package
- Product Status:
- Active
- RF Family/Standard:
- General ISM
- Frequency Group:
- SHF (f > 4GHz)
- Frequency (Center/Band):
- 33GHz
- Frequency Range:
- 24GHz ~ 42GHz
- Antenna Type:
- Horn
- Number of Bands:
- 1
- VSWR:
- -
- Return Loss:
- -
- Gain:
- 10dBi
- Power - Max:
- -
- Features:
- -
- Termination:
- -
- Ingress Protection:
- -
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Waveguide Mount
- Height (Max):
- 3.550" (90.17mm)
- Applications:
- General Purpose
| Image |  |
|
 |
|
 |

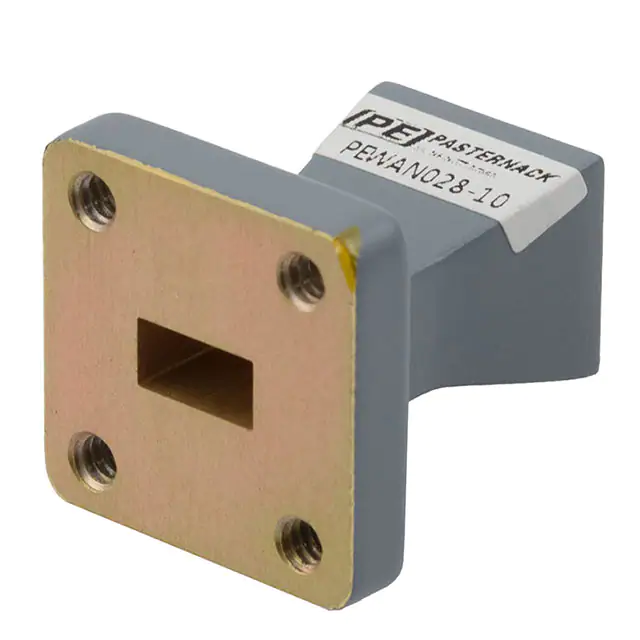

| Part Number | PEWAN028-10KF | PEWAN028-20KF | PEWAN028-10 | PEWAN028-10KM | PEWAN028-20 |
| Manufacturer | Pasternack | Pasternack | Pasternack | Pasternack | Pasternack |
| Series | - | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| RF Family/Standard | - | - | Waveguide | - | Waveguide |
| Frequency Group | SHF (f > 4GHz) | SHF (f > 4GHz) | Ka Band (27GHz ~ 40GHz) | SHF (f > 4GHz) | Ka Band (27GHz ~ 40GHz) |
| Frequency (Center/Band) | 33.25GHz | 33.25GHz | 33.3GHz | 33.25GHz | 33.3GHz |
| Frequency Range | 26.5GHz ~ 40GHz | 26.5GHz ~ 40GHz | 26.5GHz ~ 40GHz | 26.5GHz ~ 40GHz | 26.5GHz ~ 40GHz |
| Antenna Type | Horn | Horn | Horn | Horn | Horn |
| Number of Bands | 1 | 1 | 1 | 1 | 1 |
| VSWR | 1.3 | 1.3 | 1.3 | 1.29 | 1.3 |
| Return Loss | - | - | - | - | - |
| Gain | 10dBi | 20dBi | 10dBi | 10dBi | 20dBi |
| Power - Max | - | - | - | - | - |
| Features | - | - | - | - | - |
| Termination | 2.92mm Female | 2.92mm Female | - | 2.92mm Male | - |
| Ingress Protection | - | - | - | - | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Waveguide Flange Mount | Waveguide Flange Mount | Waveguide Flange Mount | Waveguide Flange Mount | Waveguide Flange Mount |
| Height (Max) | 1.403" (35.64mm) | 3.556" (90.32mm) | - | 1.593" (40.46mm) | - |
| Applications | - | - | - | - | - |
