Advanced Photonix PDB-C160SM
- Part No.:
- PDB-C160SM
- Manufacturer:
- Advanced Photonix
- Category:
- Photodiodes
- Package:
- 2-SMD, Gull Wing
- Description:
- SENSOR PHOTODIODE 850NM 2SMD GW
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PDB-C160SM Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Advanced Photonix
- Series:
- -
- Package/Case:
- 2-SMD, Gull Wing
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Wavelength:
- 850nm
- Color - Enhanced:
- Red
- Spectral Range:
- 400nm ~ 1100nm
- Diode Type:
- PIN
- Responsivity @ nm:
- -
- Response Time:
- 20ns
- Voltage - DC Reverse (Vr) (Max):
- 32 V
- Current - Dark (Typ):
- 2nA
- Active Area:
- 7.02mm²
- Viewing Angle:
- 120°
- Operating Temperature:
- -40°C ~ 100°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount

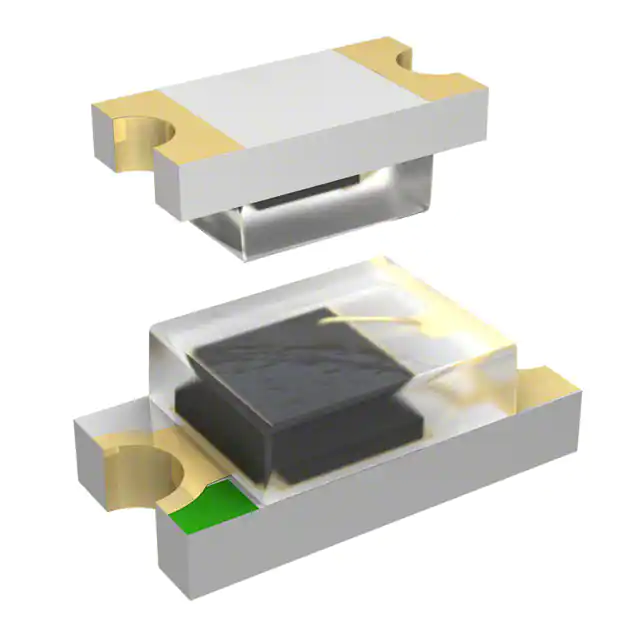

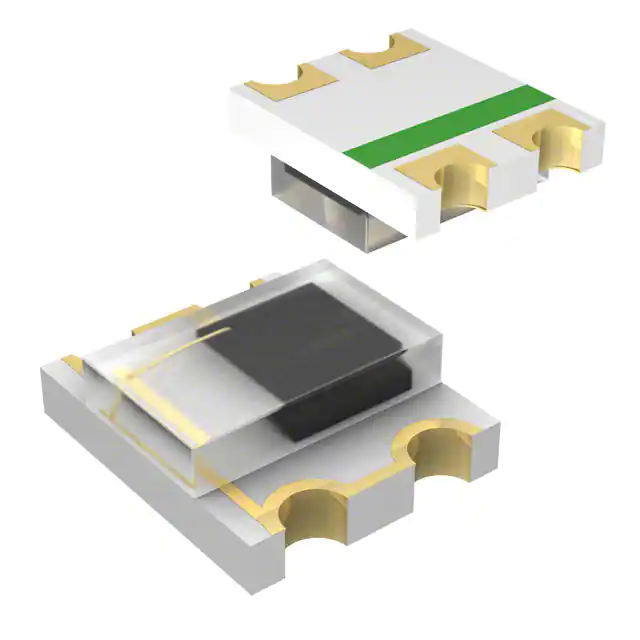

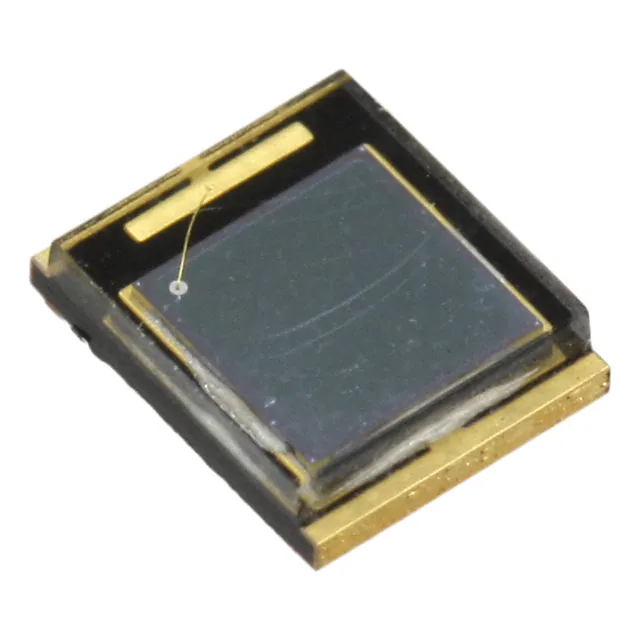

| Image |  |
 |
 |
 |
 |
| Part Number | PDB-C154SM | PDB-C152SM | PDB-C171SM | PDB-C160SM | PDB-C107 |
| Manufacturer | Advanced Photonix | Advanced Photonix | Advanced Photonix | Advanced Photonix | Advanced Photonix |
| Series | - | - | - | - | - |
| Package/Case | 1210 (3225 Metric) | 1206 (3216 Metric) | 2-SMD, No Lead | 2-SMD, Gull Wing | Radial |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Wavelength | 660nm | 660nm | 660nm | 850nm | 950nm |
| Color - Enhanced | Red | Blue | Blue | Red | Blue |
| Spectral Range | 400nm ~ 1100nm | 400nm ~ 1100nm | 400nm ~ 1050nm | 400nm ~ 1100nm | 350nm ~ 1100nm |
| Diode Type | PIN | PIN | PIN | PIN | PIN |
| Responsivity @ nm | - | - | - | - | 0.17 A/W @ 450nm |
| Response Time | 10ns | 50ns | 100ns | 20ns | 13ns |
| Voltage - DC Reverse (Vr) (Max) | 32 V | 50 V | 60 V | 32 V | 100 V |
| Current - Dark (Typ) | 2nA | 2nA | 2nA | 2nA | 150nA |
| Active Area | 2.10mm² | 1.66mm² | 7.67mm² | 7.02mm² | 17.92mm² |
| Viewing Angle | 120° | 120° | 130° | 120° | 120° |
| Operating Temperature | -40°C ~ 80°C | -40°C ~ 80°C | -40°C ~ 80°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Through Hole |
