I.F. Engineering Corp and CrossPoint Technologies PD-4002-S
- Part No.:
- PD-4002-S
- Manufacturer:
- I.F. Engineering Corp and CrossPoint Technologies
- Category:
- RF Power Dividers/Splitters
- Package:
- Module, SMA Connectors
- Datasheet:
-
PD-4002-S.pdf
- Description:
- 4-Way PWR DIV 2 - 100 MHz
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PD-4002-S Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- I.F. Engineering Corp and CrossPoint Technologies
- Package/Case:
- Module, SMA Connectors
- Series:
- -
- Packaging:
- Bulk
- Product Status:
- Active
- Insertion Loss:
- 0.5dB
- Frequency:
- -
- Specifications:
- -
- Size / Dimension:
- 2.500" L x 1.180" W x 0.500" H (63.50mm x 29.97mm x 12.70mm)
| Image |  |
|
 |
|
 |

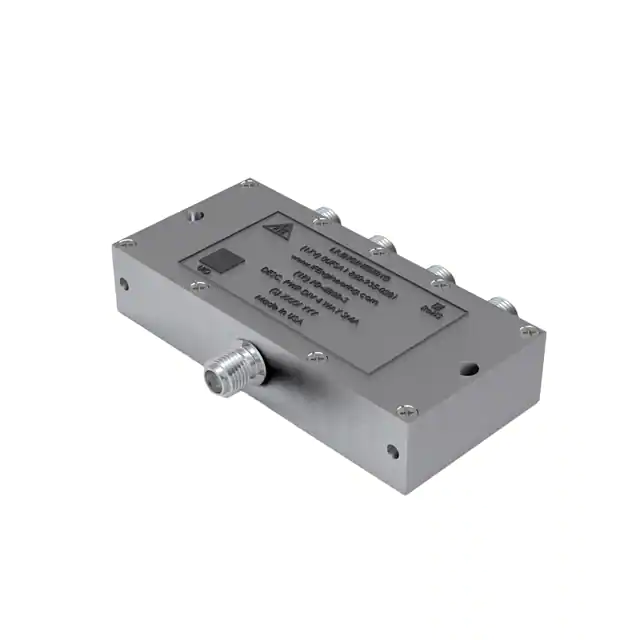

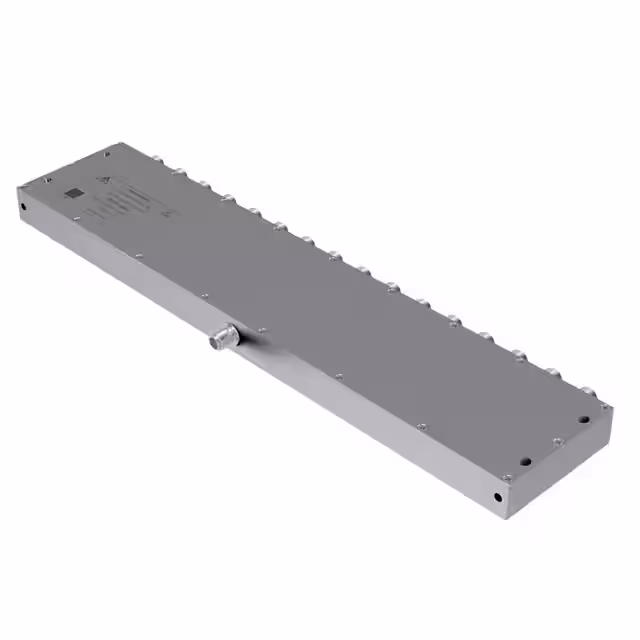

| Part Number | PD-4002-S | PD-12001-S-100K | PD-4008-S | PD-2001-S | PD-16008-S |
| Manufacturer | I.F. Engineering Corp and CrossPoint Technologies | I.F. Engineering Corp and CrossPoint Technologies | I.F. Engineering Corp and CrossPoint Technologies | I.F. Engineering Corp and CrossPoint Technologies | I.F. Engineering Corp and CrossPoint Technologies |
| Package/Case | Module, SMA Connectors | Module, SMA Connectors | Module, SMA Connectors | Module, SMA Connectors | Module, SMA Connectors |
| Series | - | PD-1200X | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Insertion Loss | 0.5dB | 1.25dB | 2.25dB | 0.3dB | 4.5dB |
| Frequency | - | 0.1 MHz ~ 32 MHz | 20 MHz ~ 3 GHz | 500 kHz ~ 32 MHz | 30 MHz ~ 3 GHz |
| Specifications | - | - | Isolation (Min) 15dB | Isolation (Min) 40dB, 1.1 VSWR (Max) | Isolation (Min) 18dB, 1.8 VSWR (Max) |
| Size / Dimension | 2.500" L x 1.180" W x 0.500" H (63.50mm x 29.97mm x 12.70mm) | 6.500" L x 2.500" W x 0.500" H (165.10mm x 63.50mm x 12.70mm) | 2.500" L x 1.180" W x 0.500" H (63.50mm x 29.97mm x 12.70mm) | 1.500" L x 0.810" W x 0.059" H (38.10mm x 20.57mm x 1.50mm) | 8.500" L x 1.800" W x 0.500" H (215.90mm x 45.72mm x 12.70mm) |
