Bourns Inc. PCW1J-B24-CCD103
- Part No.:
- PCW1J-B24-CCD103
- Manufacturer:
- Bourns Inc.
- Category:
- Rotary Potentiometers, Rheostats
- Package:
- Description:
- POT 10K OHM 1/4W PLASTIC LOG
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PCW1J-B24-CCD103 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Bourns Inc.
- Series:
- PC-Slimline
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Resistance (Ohms):
- 10k
- Tolerance:
- ±20%
- Power (Watts):
- 0.25W, 1/4W
- Built in Switch:
- Detent
- Number of Turns:
- 1.0
- Features:
- -
- Taper:
- Logarithmic
- Number of Gangs:
- 1
- Adjustment Type:
- User Defined
- Temperature Coefficient:
- ±1000ppm/°C
- Rotation:
- 300°
- Resistive Material:
- Conductive Plastic
- Termination Style:
- Solder Lug
- Actuator Type:
- Slotted
- Actuator Length:
- 0.945" (24.00mm)
- Actuator Diameter:
- 0.250" (6.35mm)
- Bushing Thread:
- M9 x 0.75
- Mounting Type:
- Panel Mount
| Image |  |
 |
 |
 |
 |

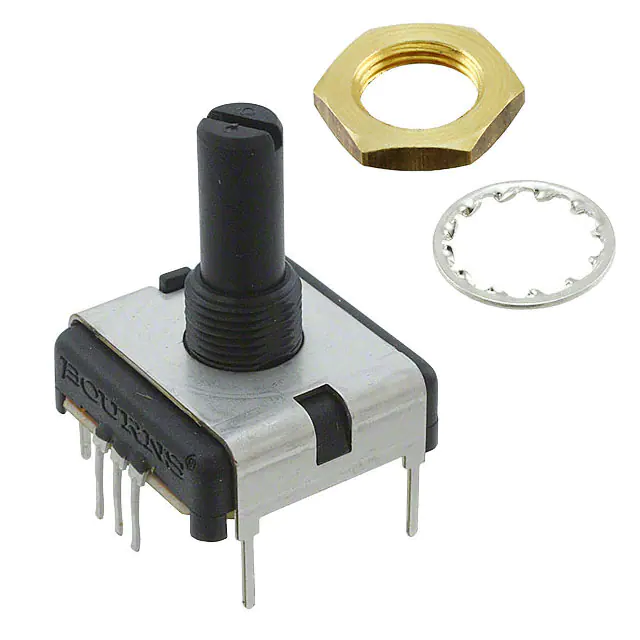

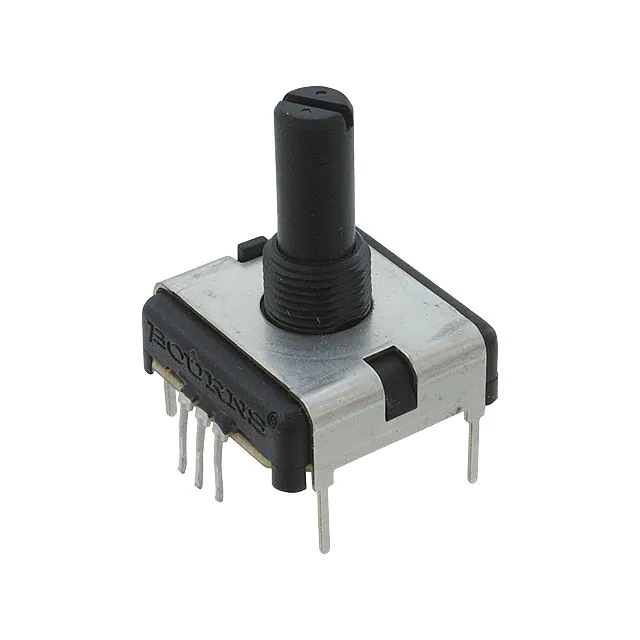

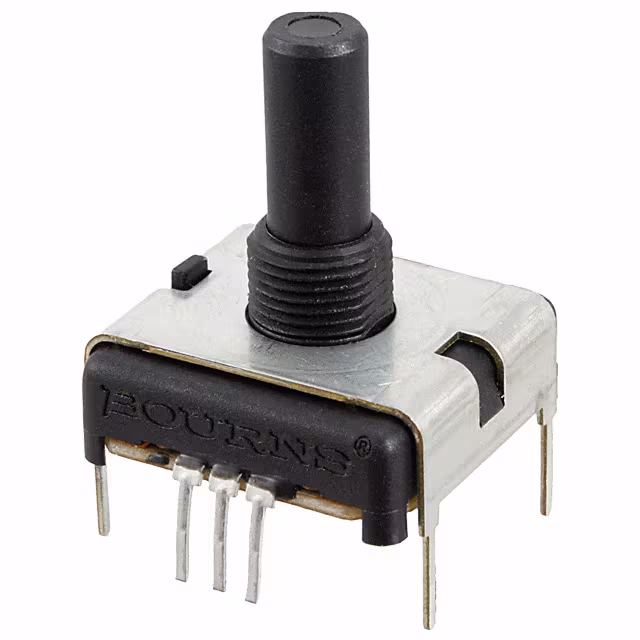

| Part Number | PCW1J-B24-BAB103L | PCW1J-C24-BAB103L | PCW1J-B24-KAB502L | PCW1J-B24-KAB102L | PCW1J-C24-BAB502L |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Series | PC-Slimline | PC-Slimline | PC-Slimline | PC-Slimline | PC-Slimline |
| Packaging | Tray | Tray | Tray | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Resistance (Ohms) | 10k | 10k | 5k | 1k | 5k |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Power (Watts) | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W |
| Built in Switch | None | None | None | None | None |
| Number of Turns | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
| Features | - | - | - | - | - |
| Taper | Linear | Linear | Linear | Linear | Linear |
| Number of Gangs | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment |
| Temperature Coefficient | ±1000ppm/°C | ±1000ppm/°C | ±1000ppm/°C | ±1000ppm/°C | ±1000ppm/°C |
| Rotation | 300° | 300° | 300° | 300° | 300° |
| Resistive Material | Conductive Plastic | Conductive Plastic | Conductive Plastic | Conductive Plastic | Conductive Plastic |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Actuator Type | Slotted | Flatted | Slotted | Slotted | Flatted |
| Actuator Length | 0.750" (19.05mm) | 0.750" (19.05mm) | 0.750" (19.05mm) | 0.750" (19.05mm) | 0.750" (19.05mm) |
| Actuator Diameter | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Bushing Thread | M9 x 0.75 | M9 x 0.75 | M9 x 0.75 | M9 x 0.75 | M9 x 0.75 |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Panel Mount | Panel Mount |
