Amphenol PCTEL PCTHPDLTE-LTW
- Part No.:
- PCTHPDLTE-LTW
- Manufacturer:
- Amphenol PCTEL
- Category:
- RF Antennas
- Package:
- Description:
- ANTENNA TROOPER DUAL LTE WHITE
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PCTHPDLTE-LTW Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Amphenol PCTEL
- Series:
- Trooper™
- Packaging:
- Bulk
- Product Status:
- Obsolete
- RF Family/Standard:
- Cellular
- Frequency Group:
- Wide Band
- Frequency (Center/Band):
- 657.5MHz, 750MHz, 892MHz, 1.955GHz, 2.495GHz, 3.6GHz, 5.55GHz
- Frequency Range:
- 617MHz ~ 698MHz, 698MHz ~ 802MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 5.15GHz ~ 5.95GHz
- Antenna Type:
- Dome
- Number of Bands:
- 7
- VSWR:
- -
- Return Loss:
- -
- Gain:
- 2.2dBi, 4dBi, 4.3dBi, 5.5dBi, 6.8dBi, 6.1dBi, 8.6dBi
- Power - Max:
- 50 W
- Features:
- Cable - 5.18m
- Termination:
- SMA
- Ingress Protection:
- IP67
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Stud
- Height (Max):
- 3.460" (87.88mm)
- Applications:
- 4G, LTE
| Image |  |
 |
 |
|
|

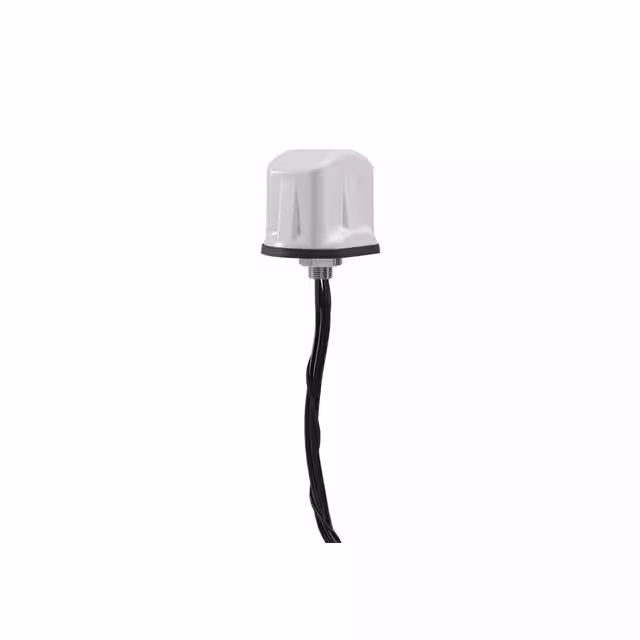

| Part Number | PCTHPDLTE-SF | PCTHPDLTE-LTB | PCTHPDLTE-SF-MM | PCTHPDLTE-SF-10FT | PCTHPDLTE-LTB-1M |
| Manufacturer | Amphenol PCTEL | Amphenol PCTEL | Amphenol PCTEL | Amphenol PCTEL | Amphenol PCTEL |
| Series | PCTHPDLTE-SF | PCTH | PCTHPDLTE-SF | - | Trooper™ |
| Packaging | Bulk | Box | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| RF Family/Standard | Cellular, Navigation | Cellular | Cellular | - | Cellular |
| Frequency Group | Wide Band | Wide Band | Wide Band | - | Wide Band |
| Frequency (Center/Band) | 657.5MHz, 750MHz, 892MHz, 1.955GHz, 2.495GHz, 2.45GHz, 3.6GHz, 5.4GHz, 5.55GHz | 657.5MHz, 750MHz, 892MHz, 1.955GHz, 2.495GHz, 3.6GHz, 5.55GHz | 829MHz, 1.94GHz, 2.5GHz | - | 657.5MHz, 750MHz, 892MHz, 1.955GHz, 2.495GHz, 3.6GHz, 5.55GHz |
| Frequency Range | 698MHz ~ 802MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 3.4GHz ~ 3.8GHz, 4.9GHz ~ 5.925GHz, 5.15GHz ~ 5.95GHz | 617MHz ~ 698MHz, 698MHz ~ 802MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 5.15GHz ~ 5.95GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | - | 617MHz ~ 698MHz, 698MHz ~ 802MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 5.15GHz ~ 5.95GHz |
| Antenna Type | Dome | Module | Dome | - | Module |
| Number of Bands | 9 | 7 | 3 | - | 7 |
| VSWR | - | 1.4, 1.5, 1.6, 1.8, 2.2 | 2 | - | - |
| Return Loss | - | - | - | - | - |
| Gain | 3.8dBi, 5.2dBi, 6.2dBi, 7.5dBi, 8.9dBi, 9.4dBi, 5.4dBi, 9.4dBi, 8.1dBi | 4dBi, 5dBi, 5.5dBi, 6.5dBi, 8.8dBi, 6.8dBi, 10.1dBi | 2.5dBi, 2.5dBi, 2.5dBi | - | 4dBi, 5dBi, 5.5dBi, 6.5dBi, 8.8dBi, 6.8dBi, 10.1dBi |
| Power - Max | 50 W | 50 W | 50 W | - | 50 W |
| Features | Cable - 5.1816m | Cable - 5.1816m | Cable - 5.18m | - | Cable - 5.18m |
| Termination | SMA Male | SMA | SMA | - | SMA |
| Ingress Protection | IP67 | IP67 | IP67 | - | IP67 |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Panel Mount | Stud, Through Hole | Magnetic | - | Connector Mount |
| Height (Max) | 5.197" (132.00mm) | 3.465" (88.00mm) | 3.622" (92.00mm) | - | 3.460" (87.88mm) |
| Applications | 2G, 3G, 5G, Bluetooth, Cellular, ISM, LoRa, LPWAN, LTE, Wi-Fi | 2G, 3G, 5G, Cellular, LTE | 4G, LTE | - | 5G, LTE |
