NXP USA Inc. PCA8575D,112
- Part No.:
- PCA8575D,112
- Manufacturer:
- NXP USA Inc.
- Category:
- I/O Expanders
- Package:
- 24-SOIC (0.295", 7.50mm Width)
- Datasheet:
-
PCA8575D,112.pdf
- Description:
- IC XPNDR 400KHZ I2C 24SO
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PCA8575D,112 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- NXP USA Inc.
- Series:
- -
- Package/Case:
- 24-SOIC (0.295", 7.50mm Width)
- Packaging:
- Tube
- Product Status:
- Obsolete
- Programmable:
- Not Verified
- Number of I/O:
- 16
- Interface:
- I2C
- Interrupt Output:
- Yes
- Features:
- POR
- Output Type:
- Push-Pull
- Current - Output Source/Sink:
- 100µA, 25mA
- Clock Frequency:
- 400 kHz
- Voltage - Supply:
- 2.3V ~ 5.5V
- Operating Temperature:
- -40°C ~ 85°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 24-SO
| Image |  |
 |
 |
|

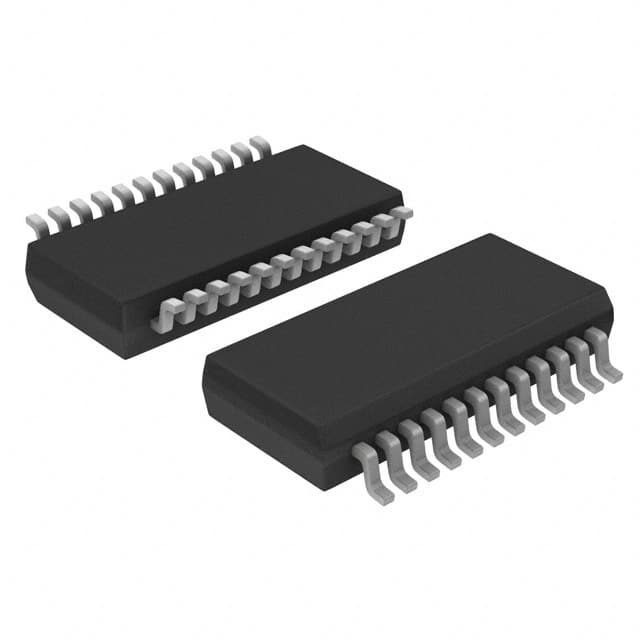

| Part Number | PCA8575DB,118 | PCA8575DK,118 | PCA8575D,112 | PCA8575DB,112 |
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Series | - | - | - | - |
| Package/Case | 24-SSOP (0.209", 5.30mm Width) | 24-SSOP (0.154", 3.90mm Width) | 24-SOIC (0.295", 7.50mm Width) | 24-SSOP (0.209", 5.30mm Width) |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tube | Tube |
| Product Status | Active | Obsolete | Obsolete | Obsolete |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified |
| Number of I/O | 16 | 16 | 16 | 16 |
| Interface | I2C | I2C | I2C | I2C |
| Interrupt Output | Yes | Yes | Yes | Yes |
| Features | POR | POR | POR | POR |
| Output Type | Push-Pull | Push-Pull | Push-Pull | Push-Pull |
| Current - Output Source/Sink | 100µA, 25mA | 100µA, 25mA | 100µA, 25mA | 100µA, 25mA |
| Clock Frequency | 400 kHz | 400 kHz | 400 kHz | 400 kHz |
| Voltage - Supply | 2.3V ~ 5.5V | 2.3V ~ 5.5V | 2.3V ~ 5.5V | 2.3V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 24-SSOP | 24-SSOP | 24-SO | 24-SSOP |
