Picker Components PC520-1C-24S-X
- Part No.:
- PC520-1C-24S-X
- Manufacturer:
- Picker Components
- Category:
- Power Relays, Over 2 Amps
- Package:
- Datasheet:
-
PC520-1C-24S-X.pdf
- Description:
- RELAY GEN PURPOSE SPDT 20A 24V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PC520-1C-24S-X Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Picker Components
- Series:
- PC520
- Packaging:
- Tube
- Product Status:
- Active
- Mounting Type:
- Through Hole
- Coil Voltage:
- 24VDC
- Contact Form:
- SPDT (1 Form C)
- Contact Rating (Current):
- 20 A
- Switching Voltage:
- 250VAC - Max
- Load - Max Switching:
- 5000VA
- Coil Current:
- 15 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- PC Pin
- Seal Rating:
- Sealed - Fully
- Coil Insulation:
- Class F
- Must Operate Voltage:
- 18 VDC
- Must Release Voltage:
- 2.4 VDC
- Operate Time:
- 15 ms
- Release Time:
- 10 ms
- Operating Temperature:
- -40°C ~ 105°C
- Contact Material:
- Silver Cadmium Oxide (AgCdO)
- Relay Type:
- General Purpose
- Grade:
- -
- Qualification:
- -

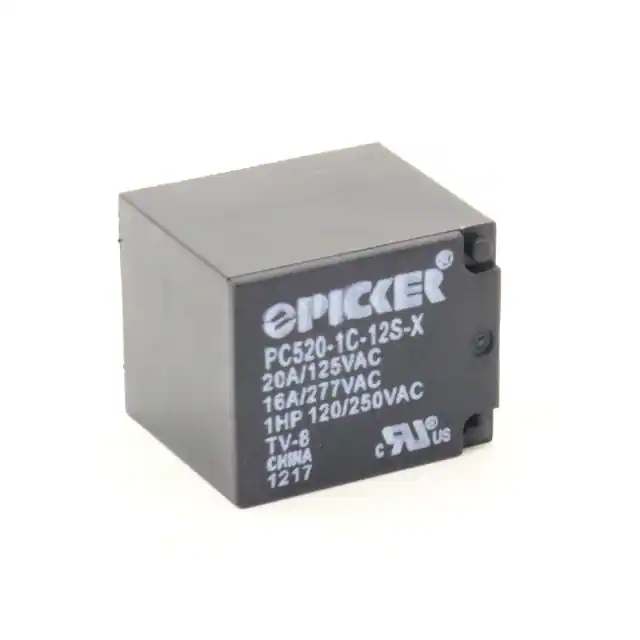

| Image |  |
 |
| Part Number | PC520-1C-12S-X | PC520-1C-24S-X |
| Manufacturer | Picker Components | Picker Components |
| Series | PC520 | PC520 |
| Packaging | Tube | Tube |
| Product Status | Active | Active |
| Mounting Type | Through Hole | Through Hole |
| Coil Voltage | 12VDC | 24VDC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C) |
| Contact Rating (Current) | 20 A | 20 A |
| Switching Voltage | 250VAC - Max | 250VAC - Max |
| Load - Max Switching | 5000VA | 5000VA |
| Coil Current | 30 mA | 15 mA |
| Coil Type | Non Latching | Non Latching |
| Features | - | - |
| Termination Style | PC Pin | PC Pin |
| Seal Rating | Sealed - Fully | Sealed - Fully |
| Coil Insulation | Class F | Class F |
| Must Operate Voltage | 9 VDC | 18 VDC |
| Must Release Voltage | 1.2 VDC | 2.4 VDC |
| Operate Time | 15 ms | 15 ms |
| Release Time | 10 ms | 10 ms |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) | Silver Cadmium Oxide (AgCdO) |
| Relay Type | General Purpose | General Purpose |
| Grade | - | - |
| Qualification | - | - |
