The PAM8904EGPR is an advanced class-D driver architecture that drives ceramic/piezo sounders with high output voltage. By utilizing an integrated boost converter, it can generate a peak-to-peak output voltage significantly higher than the input supply voltage, allowing for robust audio performance even from a single-cell Li-ion battery.

Its low-power shutdown mode and efficient internal switching frequency make it highly suitable for mobile electronics, medical devices, and industrial alerts. The driver also includes automatic shutdown and wake-up features to maximize battery life.

Diodes Incorporated is a leading global manufacturer and supplier of high-quality application-specific standard products within the broad discrete, logic, analog, and mixed-signal semiconductor markets.

They focus on high-growth end-user markets such as automotive, industrial, computing, and communications, providing engineers with innovative solutions that help optimize performance and power efficiency.

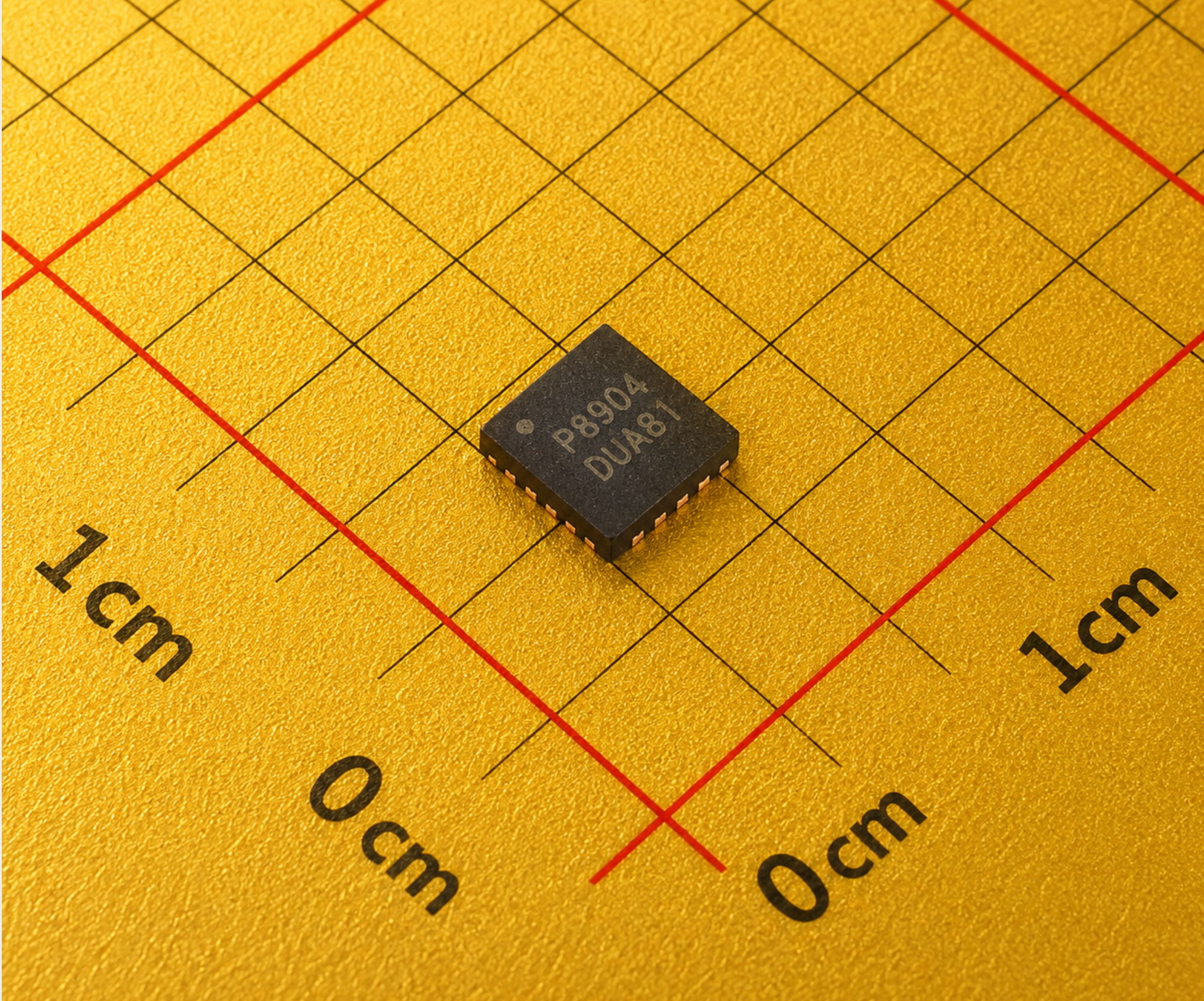

The PAM8904EGPR is housed in the compact U-QFN3030-16 package, ensuring high reliability and efficient thermal dissipation.

Mechanical Details:

• Package Code: EG (U-QFN3030-16).
• Dimensions: 3.0mm x 3.0mm footprint.
• Operating Temp: Industrial range -40°C to +85°C.
• RoHS Status: Fully Lead-Free and Green compliant.

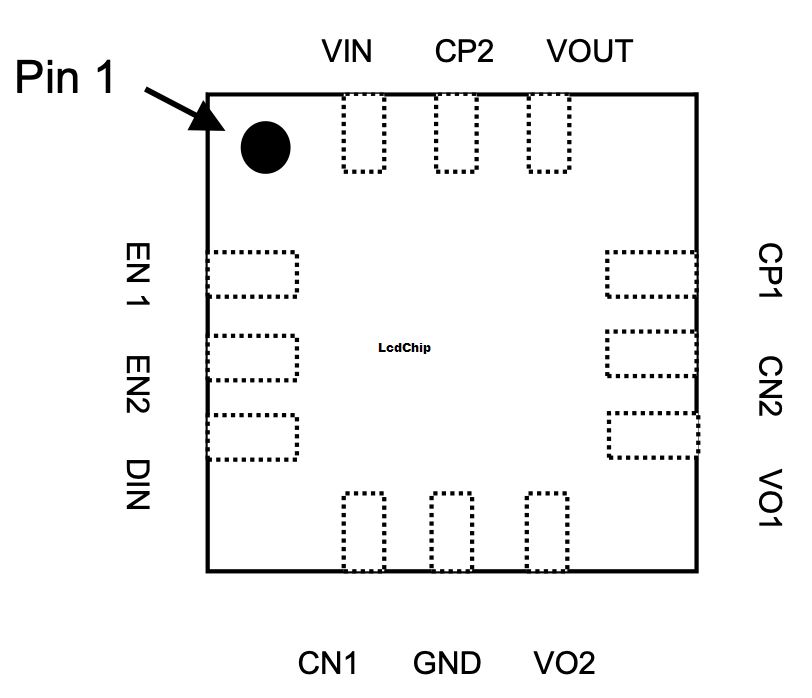

The U-QFN3030-16 pinout is designed for high-efficiency audio signal routing and power management.

The PAM8904 is a specialized driver. For alternative solutions, verify the output voltage requirements:

• PAM8904-series: Other variants in the PAM8904 family offer different package or features.
• Alternative Logic/Driver ICs: Ensure any replacement supports the necessary high-voltage swing required for piezoelectric transducers.

• Reliability: Diodes Inc. applies rigorous thermal and electrical stress testing protocols.
• Verified Source: Ensure supply via authorized distributors to maintain quality standards.
• Compliance: Designed to meet high-level industry standards for consumer and industrial electronics.
